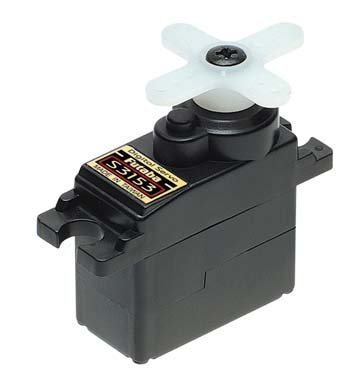

Futaba S3153 Digital Micro High-Speed Servo  [S3153]

This is actually the S3153 Digital High Speed Micro Mini Servo
made for use with Futaba broadcast Control Systems.
It's the Digital high Speed form of the S3103 Servo.

This servo can make high-current draw from your own batteries if making use of NiMH or LiPo batteries, cause them to become good at delivering sufficient amps.

FEATURES:
Little compact design for tiny electric engine airplanes metal gears
One year guarantee

INCLUDES:
One S3153 Digital Tall Speed Micro Mini Servo
One Servo Accessory Pack (Horn, Grommets, Screws, Bushings)

NEEDS:
Installing in model, attaching linkage and plugging into receiver

SPECS:
Speed: 0.11 sec/60�X @ 4.8V
0.09 sec/60�X @ 6V
Torque: 19 oz-in (1.4kg/cm) @ 4.8V
24 oz-in (1.7kg/cm) @ 6V
Proportions: .9" x 0.4" x 0.8" (22 x 11 x 20mm)
weight: .34oz (9.6g)
Manufacturing Shaft Diameter: 5mm


COMMENTS:
The S3153 servo cannot be used in combination with gasoline engine airplanes adequate cause for big gliders along with other models that are looking some torque.
Utilizing with a massive load at a much better voltage will certainly reduce servo life (4.8V suggested).
For an upgraded servo horn purchase FUTM2038.
The long horns utilize component quantity FUTM2005.
