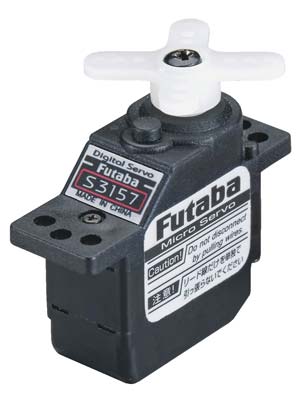

Futaba S3157 Servo Digital Micro High-Speed/Torque  [S3157]

CHARACTERISTICS: appropriate small electric planes and helicopters

INCLUDES:

• Futaba S3157 Digital High Speed/High Torque Micro Servo with universal connector
• .71" x .79" (18mm x 20mm) 4 supply servo horn (pre-installed)
• 0.79" x 1.6" (20mm x 40mm) 4 supply servo horn
• 0.79" (20mm) diameter round horn

NEEDS:

• Setting up in aircraft, connecting linkage and linking to receiver
• Purchase DUBM6924 if mounting gear can be necessary

SPECS:

• Torque: 21 oz-in (1.5 kg-cm) @ 4.8V
• 24 oz-in (1.7 kg-cm) @ 6.0V
• Speed: .10 sec/60? @ 4.8V
• 0.09 sec/60? @ 6.0V
• Size: 0.9 x 0.4 x 0.9" (22 x 11 x 23mm)
• body fat: .29 oz (8.3g)

OPINIONS:

• In addition available with micro plug, FUTM0705.
• Not for use with gasoline driven models, big models or other models that want high torque.
• Using voltage significantly more than 6.0V or utilizing high load toward servo wil dramatically reduce its life.
• Always utilize the servo horn particularly created for this servo. Do not use conventional servo horns.
• Excessive force or shock towards servo horn may damage the ultra mini precision gears inside the servo.
