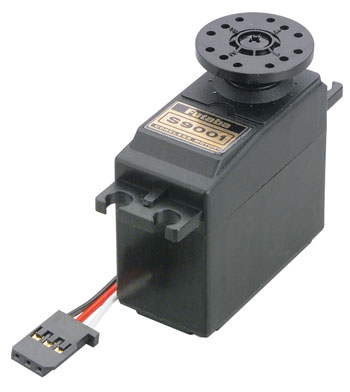

This is the Futaba Ball Bearing S9001 Servo.
This servo has one servo horn linked, three extra
servo horns and mounting equipment.
This servo can create high-current draw from your own batteries.
If using NiMH or Li-Po batteries, get them to capable
of delivering enough Amps.
FEATURES: last gear has one ball bearing for fast transportation time.
Coreless engine for smooth and fast reaction.
Ideal application for airplanes, sailplanes, helicopters, nitro or
electric driven ships.
INCLUDES: One Futaba Ball Bearing S9001 Servo with J connector another 0.83"
(21mm) circular servo horn, one 1.38" (35mm) servo horn, one 4 point
1.53" (39mm) servo horn, one 6 point 1.26" (32mm) servo horn, four
rubber grommets, four 2mm x 11mm self tapping phillips mind screws
and four steel eyelets.
NEEDS: Phillips screwdriver (can use HCAR1020) to mount servo.
SPECS: Length: 1.6" (40mm)
Width: 0.8" (20mm)
Height: 1.4" (36mm)
fat: 1.7oz (48g)
Torque: 54 oz/in @ 4.8V - 72 oz/in @ 6V
(3.9 kg/cm @ 4.8V - 5.2 kg/cm @ 6V)
Transit Time: .22 sec/60 deg @ 4.8V - .18 sec/60 deg @ 6V
Warranty: Futaba warrants this servo for starters year against defects in
material or workmanship.
REMARKS: If extra accessory instance will become necessary use Futaba component #FSH42 (FUTM3550).
A note on coreless motors-a mainstream servo motor has a steel core
armature covered with cable that spins within the magnets. In a
coreless design, the armature utilizes a wire mesh that sorts a cup
that spins over the not in the magnet. This arrangement is
much lighter causing smoother procedure and quicker response
time.
