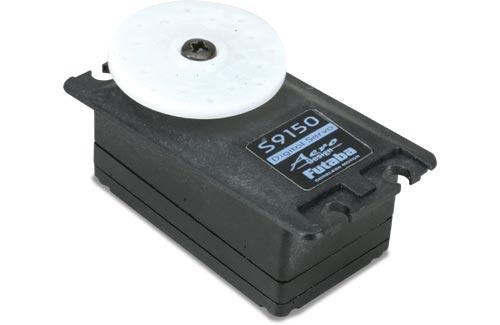

This is actually the Futaba S9150 Digital Aileron Servo with J Connector.
Designed for aileron applications on model aircraft.
This servo may cause high-current draw from your batteries.
If making use of NiMH or Li-Po batteries, encourage them to capable
of delivering sufficient Amps.
FEATURES: Coreless motor
2 ball bearings
Digitally enhanced microprocessors cut by 50 percent the response time
from transmitter input to servo reaction
Dust and water resistant-not water proof
Low profile aero design is very suited to wing installations
Black synthetic case
One 12 months guarantee
INCLUDES: One S9150 Digital aileron servo 1-3/4" (44mm) diameter servo wheel,
1-1/4" (32mm) diameter servo wheel, one six point servo wheel,
four metal grommets, four mounting screws and two artificial mounts.
SPECS: Speed: 0.18 sec/60 deg @ 4.8V
Torque: 81 oz/in @ 4.8V (5.8 kg/cm @ 4.8V)
Length: 1.9" (48mm)
Width: 1.1" (28mm)
Height: 1.0" (25)
Weigth: 1.9 oz (53g)
power: 4.8V (Futaba doesn't recommend utilizing 6V)
REVIEWS: S9150 Digital Servo Precautions,
-It is best to avoid long leads and Y-harnesses specifically with
standard grade cables. If dilemmas are experienced, consider using
heavy obligation wire including Futaba's durable Series or Hobbico's
Pro Series,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: This electronic servo is quite designed for high-
torque or high-speed, consequently quite high current drain is normal
at startup. For ultimate performance whenever applying this servo please
review these points.
1. Broadcast systems with all the current Battery Fail Safe function have actually really a
higher cut-off voltage environment that may cause shorter
operation time.
2. Whenever establishing the servo, please always check pushrod linkage to
make yes there's absolutely no binding so that you can prevent excessive
power usage and reduce living of motor and
battery.
This electronic servo may not be utilized in combination using the next * have been *
transmitters because servo fundamental sign is: 1310us).
CONQUEST AM, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Brand-new Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK series.
**** Otherwise they will work fine with current AM systems *****
** no other hands will work using this, has an exceptional spline size.
