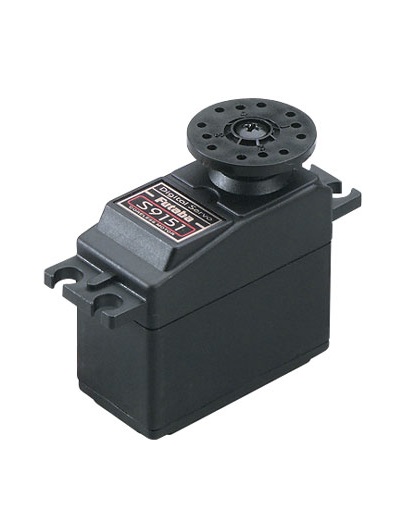

this is actually the S9151 Digital High Torque Rudder F3A Servo.
This might just be utilized together with 4.8V batteries.
This servo can cause high-current draw from your batteries.
If utilizing NiMH or Li-Po batteries, get them to capable
of delivering sufficient Amps.
QUALITIES: Digitally enhanced microprocessors cut about 1/2 the response
time from transmitter input to servo reaction.
Digital procedure allows this servo to attain complete energy immediately
and protect torque longer.
High-capacity, high-current cable with low opposition.
Coreless engine (a wire cage rotates around the magnet).
High cost procedure for instant effect.
Dual ball bearings on output shaft.
Delivers high torque rudder operation for accuracy fixed-wing F3A
pattern aircraft.
Dust and waterproof (maybe not Waterproof)
Black synthetic situation.
One year guarantee.
INCLUDES: One S9151 Digital tall Torque Rudder F3A Servo w/Futaba J Connector
a tiny circular servo horn
Four Rectangular Grommets
Four Brass Bushings
Four 2 x 11mm Mounting Screws
One big Round Horn
One Six supply Horn
One Four supply Horn
SPECS: Length: 1.6" (41mm)
Width: .8" (20mm)
Height: 1.5" (38mm)
fat: 1.8 oz (50g)
Speed: 0.19 sec/60?@ 4.8V
Torque: 132 oz/in (9.5 kg/cm) @ 4.8V
Power Supply: 4.8 (Futaba doesn't recommend using 6V)
FEATURES: S9151 Digital Servo Precautions,
-It is most beneficial to prevent long leads and Y-harnesses particularly with
standard grade cables. If problems are skilled, give consideration to using
heavy responsibility cable especially Futaba's durable Series or Hobbico's
Pro Series, minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9151 Servo is extremely made for high-
torque and high-speed, as a result of this high present drain is
normal at startup. For ultimate performance whenever using this servo,
please review these points.
(1) Whenever making use of systems using the electric batteries fail safe function it has
a greater cut-off voltage environment which will cause shorter
operation time.
(2) Whenever developing the servo please always check pushrod linkage to make
sure there's absolutely no binding in order to avoid extortionate power
consumption and minimize living associated with the motor and battery pack.
This electronic servo might not be combined with the following * AM *
transmitters as the servo fundamental indication is: 1310us).
CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), amazing Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they're going to work fine with present AM systems *****
