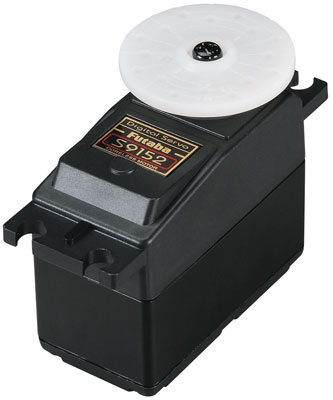

here is the Futaba S9152 Mega tall Torque Digital Rudder Servo.
Comes with "J" Connector Pre-Installed.
QUALITIES: durable wiring handles greater present loads
New metal center casing helps dissipate temperature and is designed to be
water and dust proof
Coreless motor
High Torque
One 12 months guarantee
INCLUDES: One Futaba S9152 Digital Rudder Servo
Two rectangular grommets
Four metal bushings
Four 3mm x 15mm self tapping phillips mind mounting screws
One 1.2" (30mm) diameter round horn
One 3.5" (88mm) diameter celebrity shaped six point horn
One 3.9" (98mm) diameter four point horn
SPECS: Speed: .19 sec/60 levels @ 6V
Torque: 278 oz/in @ 6V ( 20.0 kg/cm )
fat: 3 oz (84g)
Length: 1.91" (48.6mm) situation only
Length: 2.54" (64.6mm) including mounting tabs
Width: 0.99" (25.2mm)
Height: 1.56" (39.7mm)
Distance between mounting beginning facilities very same side: 0.55" (14mm)
Distance between mounting opening facilities opposing side: 2.35" (59.6mm)
COMMENTS: S9152 Digital Servo Precautions,
-It is better to get rid of long leads and Y-harnesses specially with
standard grade cables. If issues are skilled, begin considering using
heavy obligation cable such as for example Futaba's durable Series or Hobbico's
Pro Series ,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9152 Servo is particularly created for High-
Torque and High-Speed, consequently quite high present Drain Is
Normal At company. For Ultimate Effectiveness When Working With This Servo
Please Review These Points.
(1) When working with Systems with all the current Battery Fail Secure Function it Has
a Higher Cut-Off Voltage Setting that could Cause Shorter
Operation Time.
(2) When installing the Servo Please always check Pushrod Linkage To Make
Sure there is absolutely no Binding in order to avoid exorbitant Power
Consumption and minimize the Life of motor and Battery.
This electronic servo cannot be combined with after * have always been *
transmitters after the servo basic indication is: 1310us).
CONQUEST will always be, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), brand new Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they will work fine with present AM systems *****
OPINIONS: Servo Accessory Package (FUTM2042) includes both big horns and
all mounting gear mentioned previously.
Replacement Case Set is FUTM3071.
Replacement Gear Set is FUTM3452.
A note on coreless engines. The conventional servo engine has a steel
core armature covered with with cable that spins inside the magnets.
In a coreless design, the armature uses a thin cable mesh that forms
a glass that spins across the maybe not inside magnet eliminating the
heavy metal core. This design is somewhat lighter causing smoother
operation and faster response time.
