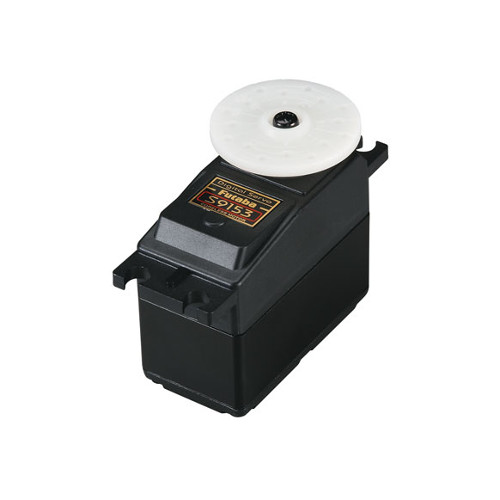

this is actually the Futaba S9153 Digital Aileron/Elevator Servo.
Comes with "J" Connector Pre-Installed.
FEATURES: quality wiring handles greater present loads
Metal center casing which helps you to dissipate temperature also it's created to
be water and dirt proof
Coreless motor
High torque
One 12 months warranty
INCLUDES: One Futaba S9153 Digital Aileron/Elevator Servo
Two rectangular grommets
Four steel bushings
Four 3mm x 15mm self tapping phillips brain mounting screws
One 1.2" (30mm) diameter round horn
One 3.5" (88mm) diameter celebrity shaped six point horn
One 3.9" (98mm) diameter four point horn
SPECS: Speed: 0.15 sec/60 levels @ 6V
Torque: 208 oz/in @ 6V ( 15 kg/cm )
fat: 3 oz (85g)
Length: 1.91" (48.6mm) instance only
Length: 2.54" (64.6mm) including mounting tabs
Width: 0.99" (25.2mm)
Height: 1.56" (39.7mm)
Distance between mounting space centers same part: 0.55" (14mm)
Distance between mounting room facilities opposing component: 2.35" (59.6mm)
REVIEWS: S9153 Digital Servo Precautions,
-It is better in order to avoid long leads and Y-harnesses particularly with
standard grade cables. If dilemmas are encountered, consider using
heavy duty cable such as for instance Futaba's durable Series or Hobbico's
Pro Series ,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9153 Servo is made especially for High-
Torque and High-Speed, because of this quite high Current Drain Is
Normal At company. For Ultimate Efficiency Whenever Making Use Of This Servo
Please Review These Points.
(1) When working with Systems Due To The Battery Fail Secure Function it Has
a Higher Cut-Off Voltage Setting That May Cause Shorter
Operation Time.
(2) Whenever developing the Servo Please check Pushrod Linkage To Make
Sure there is absolutely no Binding in order to avoid extortionate Power
Consumption and minimize steadily living for the motor and Battery.
This electronic servo may possibly not be aided by the next * happen *
transmitters because the servo fundamental sign is: 1310us).
CONQUEST have been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), completely new Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they'll work fine with current AM systems *****
COMMENTS: Servo Accessory Package (FUTM2042) includes the 2 big horns and
all mounting gear mentioned above.
Gear Set can be acquired individually, FUTM3453.
Case Set can be acquired individually, FUTM3071.
A note on coreless devices. The conventional servo motor has a steel
core armature wrapped with with wire that spins in magnets.
In a coreless design, the armature uses a thin cable mesh that forms
a cup that spins throughout the outside the magnet eliminating the
heavy metal core. This design is notably lighter causing smoother
operation and faster effect time.
