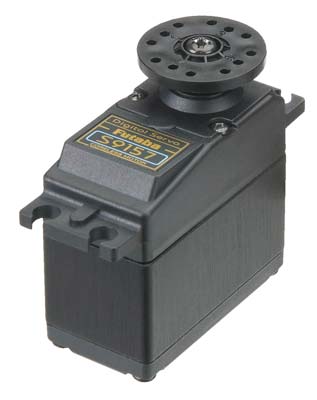

Futaba S9157 Digital Hi-Torque Servo  [S9157]

Here Is The Futaba S9157 Tall Torque Servo.

FEATURES:
Well suited for big competition airplanes
Coreless motor
double ball bearings and metal gears
steel center instance assists dissipate temperature for cooler procedure
12 months limited warranty

INCLUDES:
Futaba S9157 high Torque Servo with 0.83" (21mm) diameter circular horn, 1.8" (45mm) diameter circular horn, 1.2" (31.5mm) 6 point horn, 1.5" (38.5mm) 4 point horn and mounting hardware

NEEDS:
Installing in model, linking linkage and linking to receiver

SPECS:
Torque: 425oz-in (30.6kg/cm) @ 6V
Speed: 0.14 @ 6V
Size: 1.6 x 0.8 x 1.5" (41 x 21 x 37mm)
body weight 2.5oz (71g)
Horn Screw Size: 3x8mm

COMMENTS:
use with NiCD batteries just
a contact on Coreless machines: conventional servo engines have really in reality a metal core armature covered with cable that spins into the magnets. In a Coreless design, the armature employs a slim cable mesh that types a glass that spins over the outside the magnet eliminating the heavy metal and rock core. This design plays a part in smoother procedure and faster effect time.
