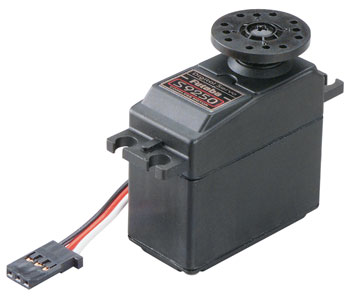

this is actually the S9250 Digital Servo w/Two Ball Bearings for
Helicopter and Aircraft usage which is offered with "J" Connector Pre-Installed.
This servo can produce high-current draw from your batteries.
If making use of NiMH or Li-Po batteries, cause them to become capable
of delivering sufficient Amps.
QUALITIES: Digitally Improved Microprocessors Cut About 1/2 the Reaction Time
From Transmitter Input To Servo Reaction.
Coreless Motor
Dual Ball Bearing manufacturing Shaft
Metal Gears
High Speed
Case includes Ebony Plastic
Dust and waterproof (not Waterproof)
Great for Helicopters or Airplanes where greater Torque and Speed are
required.
One year warranty.
INCLUDES: One Digital Helicopter/Aircraft Servo w/Small Round Horn
Four Rectangular Grommets
Four Brass Bushings
Four Mounting Screws
One Big Round Horn
One Six Supply Horn
SPECS: Speed: .11 Sec/60 amounts (considering 4.8V)
Torque: 76 oz/in (5.5 kg-cm) (predicated on 4.8V)
Weight: 1.9 oz (54 g)
power: 4.8 Volts (Futaba wont suggest utilizing 6V)
Length: 1.6" (41mm)
Width: 0.8" (20mm)
Height: 1.5" (38mm)
REVIEWS: S9250 Digital Servo Precautions,
-It is much better to prevent long leads and Y-harnesses specially with
standard grade cables. If issues are skilled, think about using
heavy duty cable such as for example Futaba's high quality show or Hobbico's
Pro Series ,minimizing lead lengths, and/or the removal of Y-harnesses.
-Current Drain: Futaba S9250 Servo is very created for High-
Torque and High-Speed, consequently high present Drain Is
Normal At business. For Ultimate Effectiveness When Working With This Servo
Please Review The Following Points.
(1) Always utilize a 4.8V NiCd w/gyro. Dry cells are ranked at 1.5V each
making the typical voltage 6.0V which may harm the gyro.
__---------------------------------------------------------------------------
The reason why this servo is preferred for 4.8V batteries, usually batteries
will cost above their stated votlage degree. A 6V 5-cell battery power will
charge within the 6 Volt degree. A voltage amount of over 6 Volts may
damage inside circuitry. For this reason we do not suggest 5-cell battery
packs.If you employ a 6 volt regulator to power this servo, the servo will
operate typically without circuit damage.
---------------------------------------------------------------------------
(2) whenever utilizing Systems with the Battery Fail secure Function it Has
a Higher Cut-Off Voltage Setting that'll Cause Shorter
Operation Time.
(3) Whenever setting up the Servo Please always check Pushrod Linkage To Make
Sure there isn't any Binding in order to avoid extortionate Power
Consumption and minimize the Life of the motor and Battery.
When Utilized in combination with GY501 Gyro:
Switch the GY501 Servo Frame speed Function (Frm) from "NOR" to
"tall" to make the effectiveness of Gyro towards Fullest.
Setting Method:
(1) Press the GY501 FUNC+ or - key to phone the Servo Frame Rate
Setup Screen.
(2) Press the DATA+ or - key showing "High".
This electronic servo may not be utilized in combination using the after * have been *
transmitters since the servo fundamental indication is: 1310us).
CONQUEST can be, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), fresh Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK series.
**** Otherwise they'll work fine with present AM systems *****
