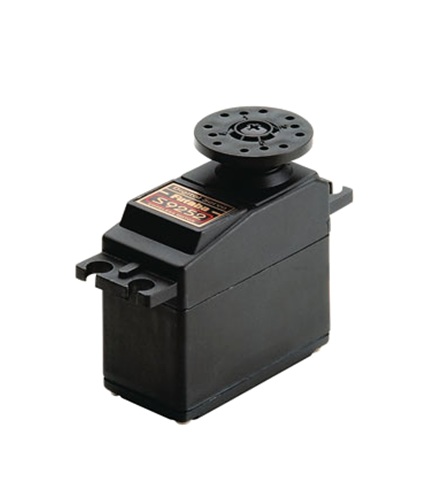

this is actually the Futaba S9252 Digital high Torque, All-Purpose F3C Servo
with High-Current Wire Lead and "J" Connector Pre-Installed.
This servo may cause high-current draw from your batteries.
If using NiMH or Li-Po batteries, get them to capable
of delivering adequate Amps.
QUALITIES: Digitally enhanced microprocessors cut about 1/2 the response time
from transmitter input to servo reaction.
Coreless motor
Dual ball bearings on the manufacturing shaft
Plastic/nylon gear train
Moderately high speed
High current, high ability cable lead with low resistance
Case is made from black colored plastic
Dust and water-resistant (perhaps not waterproof)
is effective alongside control areas on F3C helicopters or precision
fixed wing aircraft.
One 12 months warranty
INCLUDES: One Digital All Purpose Servo w/Small Round Horn
Four Rectangular Grommets
Four Brass Bushings
Four Mounting Screws
One Big Round Horn
One Six supply Horn
SPECS: Speed: .14 sec/60 amounts (considering 4.8V rating)
Torque: 92 oz/in (6.6 kg-cm) (considering 4.8V rating)
fat: 1.8 oz (50 g)
power: 4.8V (Futaba cannot suggest utilizing 6V)
Length: 1.6" (41mm)
Width: .8" (20mm)
_ Height: 1.5" (38mm)
COMMENTARY: S9252 Digital Servo Precautions,
-It is way better to stop long leads and Y-harnesses specially with
standard grade cables. If dilemmas are experienced, start thinking about using
heavy duty cable such as for example Futaba's quality Series or Hobbico's
Pro Series ,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9252 Servo is specifically designed for high-
torque and high-speed, because of this high current drain is
normal at startup. For ultimate performance whenever using this servo,
please review these points.
(1) Always utilize a 4.8V NiCd battery. Dry cells are ranked at 1.5V
each making the complete voltage 6.0V that could damage the gyro.
(2) Whenever utilizing systems aided by the battery pack fail safe function it has
a greater cut-off voltage environment that will cause shorter
operation time.
(3) Whenever developing the servo please check always pushrod linkage to make
sure there isn't any binding in order to avoid exorbitant power
consumption and minimize the life span of motor and electric batteries.
When Along with GY501 Gyro:
Switch the GY501 servo framework cost function (Frm) from "NOR" to
"tall" showing the performance of gyro on fullest.
Setting Method:
(1) Press the GY501 FUNC+ or - key to phone the Servo Frame Rate
Setup Screen.
(2) Press the DATA+ or - key to make "High".
This electronic servo cannot be coupled with following * AM *
transmitters because the servo fundamental indication is: 1310us).
CONQUEST have been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK series.
**** Otherwise they will work fine with present AM systems *****
A summary of coreless devices, a conventional servo motor has a
steel core armature covered with cable that spins inside the
magnets. In a coreless design, the armature employs a thin wire
mesh that sorts a cup that spins through the entire not in magnet
eliminating the hefty metal core. This design is lighter
resulting in smoother operation and faster response time
