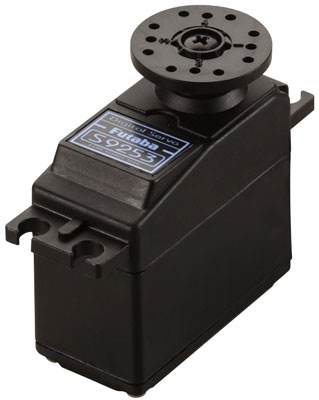

This is the Futaba S9253 Digital high rate Rudder F3C Servo for Gyro
with High-Current Wire Lead and "J" Connector Pre-Installed.
This servo can produce high-current draw from your batteries.
If using NiMH or Li-Po batteries, make sure they are capable
of delivering enough Amps.
QUALITIES: Digitally enhanced microprocessors cut about 1/2 the response time
from transmitter input to servo response.
Dual ball bearings inside the output shaft
Coreless motor with Plastic/nylon gear train
High speed
High present, high ability cable lead with low resistance
Gold plated connectors
Case includes black colored plastic
Dust and water-resistant (perhaps not waterproof)
Designed entirely as a tail rotor servo for F3C, 30, 46 and 60
sized helicopters, particularly with SMM gyros including GY401,
GY502. (wont utilize the GY601 gyro.)
One year guarantee
INCLUDES: One Digital All Purpose Servo w/Small Round Horn
Four Rectangular Grommets
Four Brass Bushings
Four Mounting Screws
One big Round Horn
One Six Supply Horn
SPECS: Speed: .08 sec/60 amounts (centered on 4.8V gyro rating)
Torque: 28 oz/in (2.0 kg-cm) (in accordance with 4.8V gyro score)
fat: 1.7 oz (49 g)
power: 4.8V (Futaba cannot suggest utilizing 6V)
Length: 1.6" (41mm)
Width: .8" (20mm)
Height: 1.5" (38mm)
COMMENTARY: S9253 Digital Servo Precautions,
-It is much better in order to avoid long leads and Y-harnesses particularly with
standard grade cables. If issues are skilled, begin contemplating using
heavy responsibility wire like Futaba's hefty fat show or Hobbico's
Pro Series ,minimizing lead lengths, and/or eliminating Y-harnesses.
-Current Drain: Futaba S9253 Servo is very designed for high-
torque and high-speed, consequently quite high current drain is
normal at startup. For ultimate performance when working with this servo,
please review the next points.
(1) Always use a 4.8V NiCd w/gyro. Dry cells are rated at 1.5V
each making the entire voltage 6.0V that will damage the gyro.
(2) When working with systems along with the battery pack fail safe function it has
a higher cut-off voltage environment that will cause shorter
operation time.
(3) When installing the servo please always check pushrod linkage to make
sure there is absolutely no binding to be able to avoid extortionate power
consumption and minimize living about the engine and battery pack.
Whenever Along with GY501 Gyro:
Switch the GY501 servo frame price function (Frm) from "NOR" to
"tall" showing the performance linked to gyro on fullest.
Setting Method:
(1) Press the GY501 FUNC+ or - key to phone the Servo Frame Rate
Setup Screen.
(2) Press the DATA+ or - key to produce "High".
This electronic servo may not be coupled with these * will always be *
transmitters because the servo fundamental sign is: 1310us).
CONQUEST AM, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
**** Otherwise they're going to work fine with present AM systems *****
