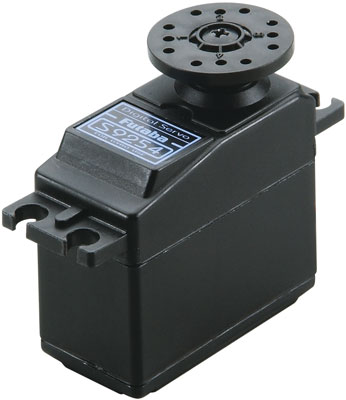

Here is the Futaba S9254 Digital Coreless High Torque,
tall Speed Helicopter Gyro Servo with J Connector.
This servo can cause high-current draw from your batteries.
If utilizing NiMH or Li-Po batteries, make sure they are capable
of delivering adequate Amps.
QUALITIES: Coreless motor for paid off weight and high-speed response
Digitally enhanced microprocessors cut by 50 percent the reaction time
from transmitter input to servo reaction
Dust and water resistant-not water proof
Black synthetic case
One year warranty
INCLUDES: One S9254 Digital Coreless high Torque high Speed Helicopter Servo
One circular servo wheel, one 6 supply servo horn, one four arm servo
horn, four grommets, four mounting screws and four artificial mounts.
SPECS: Speed: 0.06 sec/60 deg @ 4.8V
Torque: 47.2 oz/in @ 4.8V
Length: 1.6" (41mm)
Width: .8" (20mm)
Height: 1.4" (36mm)
Weigth: 1.7 oz (49g)
power: 4.8V (Futaba cannot recommend making use of 6V)
COMMENTS: S9254 Digital Servo Precautions,
-It is best in order to avoid long leads and Y-harnesses specially with
standard grade cables. If problems are encountered, consider using
heavy responsibility cable like Futaba's high quality show or Hobbico's
Pro Series,minimizing lead lengths, and/or getting rid of Y-harnesses.
-Current Drain: This electronic servo is especially created for high-
torque or high-speed, consequently high current drain is normal
at startup. For ultimate performance whenever using this servo please
review these points.
1. Broadcast systems along with the Battery Fail secure function have in fact a
higher cut-off voltage environment that will cause shorter
operation time.
2. Whenever starting the servo, be sure to check always pushrod linkage to
make yes there's no binding to stop excessive
power use and minimize the life span of motor and
battery.
A note on coreless engines. An everyday servo motor has a steel
core armature covered with wire that spins to the magnets. In
a coreless design, the armature utilizes a thin cable mesh that sorts a
cup that spins over the outside the magnet eliminating the
heavy metal core. This design leads to smoother procedure and
faster reaction time.
This servo is rated as high-torque for helicopter gyro applications,
the score would not be looked at high-torque for airplane control
surface or monster automobile steering applications.
This digital servo can not be used with these * will always be *
transmitters since the servo fundamental sign is: 1310us.
CONQUEST have always been, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Unique Terra-
top, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
***** Otherwise they are going to work fine with current AM systems *****
No other hands works with this servo, as a result of unique
spline size.
***** kit set using this servo is FUTM3445 (gear set S9253)*****
