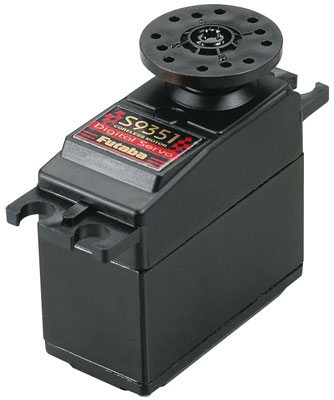

Futaba S9351 Digital High Torque Servo  [S9351]

QUALITIES:
Includes durable wiring which will manage greater active lots
new steel casing which actually really helps to dissipate heat
Coreless Engine
Tall Torque
Metal gears
ideal for 1/8 cars or vessels in which greater Torque and Speed are crucial
12 months limited warranty

INCLUDES:
One Digital tall Torque Servo w/Small Round Horn and 7.5" (190mm) cable lead
Two Rectangular Grommets
Four Chrome Bushings
One "T" Horn

SPECS:
rate: 0.16 sec/60�X @ 4.8V
0.13 sec/60�X @ 6V
Torque:153 oz-in @ 4.8V
192 oz-in @ 6V
dimensions: 1.6 x 0.8 x 1.4" (40 x 20 x 37mm)
Body weight: 2.2oz (61g)

COMMENTS:
If Gear Set becomes necessary FUTM3460
If First Gear just is important FUTM3500
For Grommets FUTM2346
For Eyelets FUTM2347
For Mounting Screws FUTM2250

S9351 Digital Servo Precautions,
-It is way better to stop long leads and Y-harnesses specially with standard grade cables. If issues are skilled, consider utilizing durable cable such as for example Futaba's durable Series or Hobbico's professional Series, minimizing lead lengths, and/or eliminating Y-harnesses.

-Current Drain: Futaba S9350 Servo is specially created for High-Torque and High-Speed, because of this Quite High Active Drain Is Normal At business. For Ultimate Effectiveness Whenever Using This Servo Please Review Another Points.

(1) whenever using Systems because of the Battery Fail secure Function it's an increased Cut-Off Voltage Setting which will Cause reduced Procedure Time.

(2) When setting up the Servo Please always check Pushrod Linkage to make sure There isn't any Binding to Prevent extortionate power Consumption and reduce the Life from the Motor and Battery.

This electronic servo may possibly not be combined with following * have always been * transmitters although the servo fundamental sign is: 1310us). CONQUEST AM, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), Brand New Terratop, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
