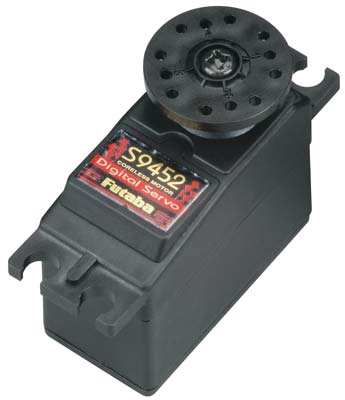

Here is the S9452 Digital Hi-Speed.Hi-Torque Servo for most applications, especially, On-Road Touring car use and it's also provided with "J" Connector Installed.
This servo is made to be properly used with 6V receiver packages.
This servo replaced the S9451 servo.
CHARACTERISTICS:
- Digitally Improved Microprocessor Cut Approximately Half the result Time From Transmitter Input To Servo Response.
- Coreless Engine with two ball bearings on manufacturing shaft
- Steel Gears (to change, use FUTM3432)
- Tall Torque
- Situation is constructed of Ebony plastic with newly developed mounting flanges
- Dust and waterproof (maybe not Waterproof)
INCLUDES:
- One Digital Car/Boat Servo w/Small Round Horn
- Two Rectangular Grommets
- Four Brass Bushings (eyelets)
- One Small Round Horn (already attached to the servo)
- One Three Supply Horn
- Order FUTM2250 if mounting screws are expected
SPECS:
- Speed: .13 sec/60?X @ 4.8V .11 sec/60?X @ 6V
- Torque: 102 oz-in (7.4 kg/cm) @ 4.8V 128 oz-in (9.2 kg/cm) @ 6V
- Weight: 1.8oz (50g)
- Dimensions: 1.6 x 0.8 x 1.4" (40 x 20 x 34mm)
COMMENTS:
S9451 Digital Servo Precautions,
-It is more preferable to prevent long leads and Y-harnesses especially with standard grade cables. If problems are skilled, consider utilizing good quality cable including Futaba's Heavy fat Series or Hobbico's professional Series, minimizing lead lengths, and/or eliminating Y-harnesses. Please Review These Points.
(1) when working with Systems along with the Battery Fail secure Function this has a greater Cut-Off Voltage establishing that'll Cause Shorter Operation Time.
(2) Whenever creating the Servo Please always check Pushrod Linkage to ensure There Is not any Binding to enable you to Prevent exorbitant energy use and reduce the Life concerning the engine and Battery.
This electronic servo can't be along with next * will always be * transmitters because servo fundamental signal is: 1310us). CONQUEST AM, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terratop, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK show.
For complete performance of electronic servos, make sure to utilize them just with FM, PCM, and HRS systems. Avoid using digital servos with AM systems.
