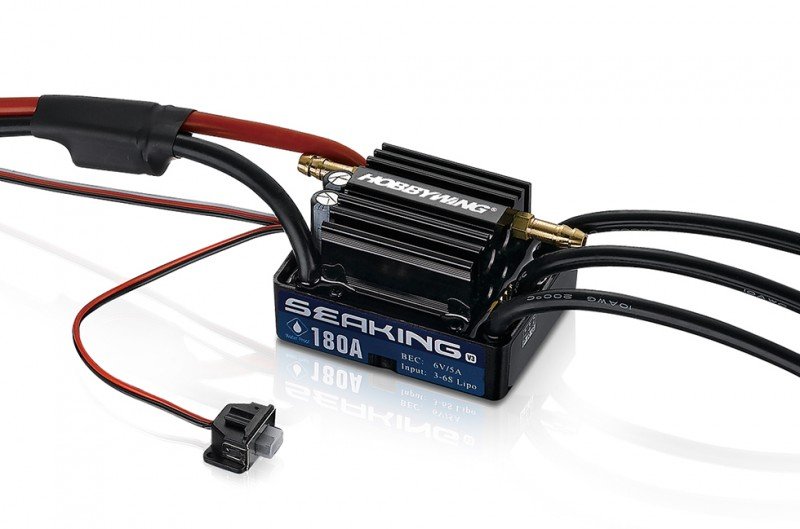

HOBBYWING Seaking 180A V3 - 30302400  [HW-30302400]

Effectiveness & Reliability

Built with top-quality elements and along with cutting-edge firmware,
the Seaking 60A V3.1 is showcased by unmatched performance and dependability.
numerous security adjustable choices happen around used,
utilizing the usage of the low-voltage cutoff safety,
thermal protection and throttle indication loss protection.

Effective Cooling System

The Hobbywing patented heat-conductive copper club target regarding the power board of
the Seaking 60A V3.1 can effectively and effortlessly go heat towards the integral CNC machined
billet aluminum water cooled temperature sink housing because of this keeping
your ESC as cool as you are able to.

Waterproof Design

100percent waterproof without extra protection.

Included BEC

The integral switch mode BEC with a maximum production of 6Amp and
voltage of 6V understand why ESC suitable for high voltage servo.

Original Algorithm Design

The unique algorithm implemented inside ESC end in the acceleration
more amazing and cruising more stable.

Individual PRG/FAN Port

The split PRG/FAN slot in regards to the ESC can connect ESC to a training course
package (via the trio-color development cable) and commence ESC development.

Type

• Brushed/Brushless : BL
• Waterproof : WP

Specifications

• Cont./Peak Present : 180A/1080A
• BEC production : change Mode:6V/5A

Wires & Connectors

• Output cables : Black-10AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No
• Transmitter : Supported
• LED Program Box : Supported
• LCD Program Box : maybe not Supported
• WiFi Module : perhaps not Supported
• Program Port : specific Program Port

Firmware

• Firmware Upgrade : perhaps not Supported

Size & Weight

• Size : 72.0x48.0x36.6mm
• I.D./O.D. in regards to the Water Cooling Pipe : Ф3.0/5.4 mm
• Weight : 207g

Applications

• Boat Length <130cm
