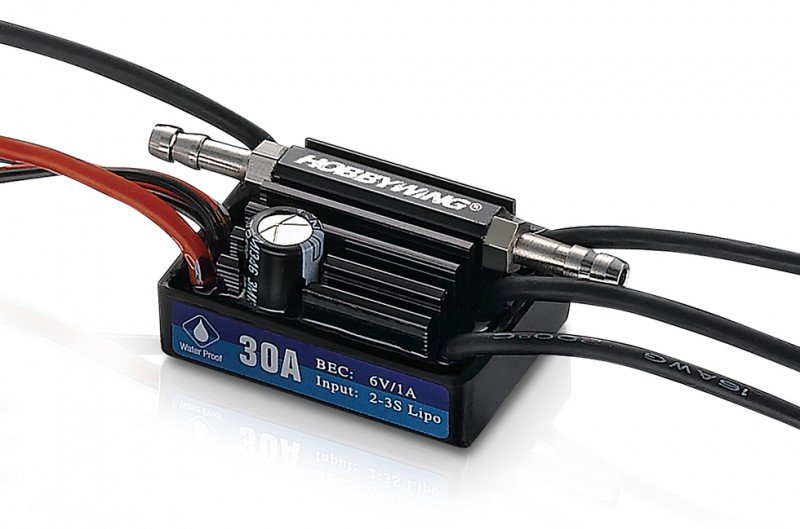

HOBBYWING Seaking 30A V3 - 30302060  [HW-30302060]

Effectiveness & Reliability

Built with top-notch elements plus along with cutting-edge firmware,
the Seaking 60A V3.1 is showcased by unmatched performance and reliability.
Multiple security adjustable choices might present in use,
with all the current usage of the low-voltage cutoff security,
thermal security and throttle indicator loss protection.

Effective Cooling System

The Hobbywing patented heat-conductive copper club target regarding the energy board of
the Seaking 60A V3.1 can efficiently and effortlessly move heat towards incorporated CNC machined
billet aluminum water cooled temperature sink housing thus keeping
your ESC as cool as possible.

Waterproof Design

100percent waterproof with no need of extra security.

Built-in BEC

The integrated switch mode BEC with a maximum manufacturing of 6Amp and
voltage of 6V understand this ESC suitable for high voltage servo.

Original Algorithm Design

The unique algorithm implemented in ESC result in the acceleration
more amazing and cruising more stable.

Individual PRG/FAN Port

The split PRG/FAN slot regarding the ESC can connect ESC to a training course
industry (via the trio-color development cable) and commence ESC programming.

Type

• Brushed/Brushless : BL
• Waterproof : WP

Specifications

• Cont./Peak Present : 30A/180A
• BEC production : Linear Mode:6V/1A

Wires & Connectors

• Output cables : Black-16AWG-75mm*3
• Input Connectors : No
• Output Connecotors : No
• Transmitter : Supported
• LED Program Box : Supported
• LCD Program Box : maybe not Supported
• WiFi Module : not Supported
• Program Port : Program/Throttle Wire

Firmware

• Firmware Upgrade : Not Supported

Size & Weight

• Size : 54.5x28.3x18.7mm
• I.D./O.D. of liquid Cooling Pipe : Ф2.0/4.0 mm
• Weight : 41g

Applications

• Boat Length <45cm
