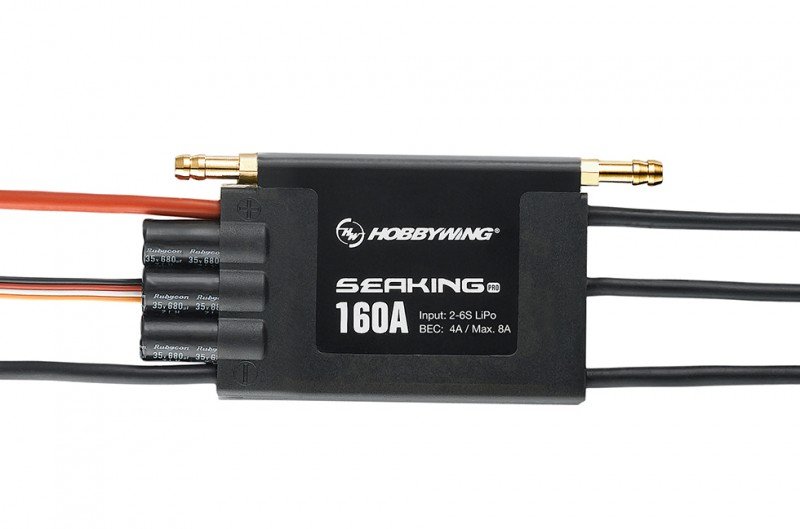

HOBBYWING Seaking PRO 160A - 30302460  [HW-30302460]

Competition Design

The light-weight about the professional 160A was created to meet with all the users requirement
of a light-weight item for all marine competition which fat is a concern
of price and endurance. The core system for top-level competition
services guarantees someone first-class control and “abundant”
programmable parameter things for various competition surroundings.

High Voltage incorporated BEC

The integral switch mode BEC with a maximum production of 8Amp and switchable
voltage of 6V/7.4v get this ESC suitable for high voltage servo.

Firmware Upgradeable

TThe Hobbywing patented heat-conductive copper club address into the power board of
the ESC utilizing the water cooling module effortlessly and effortlessly
transfers heat toward external hence keeping your ESC as cool as possible.

Item Specification

Type

• Brushed/Brushless : BL
• Waterproof : WP

Specifications

• Cont./Peak Present : 160A/1050A
• Input : 2-6S LiPo/6-18 Cells NiMH
• BEC production : change Mode:6V/7.4V,4A

Wires & Connectors

• Input Wires : Red-12AWG-200mm*1/Black-12AWG-200mm*1
• Output cables : Black-12AWG-150mm*3
• Input Connectors : No
• Output Connecotors : No

ESC Programing via

• Transmitter : Supported
• LED Program Box : maybe not Supported
• LCD Program Box : Supported
• WiFi Module : Supported
• Program Port : individual system Wire

Firmware

• Firmware Upgrade : Supported

Size & Weight

• Size : 108.5x51.5x14.4mm
• I.D./O.D. towards Water Cooling Pipe : Ф3.0/5.5 mm
• Weight : 127g

Applications

• Mono2 /Other Competition vessels (≤120cm)
