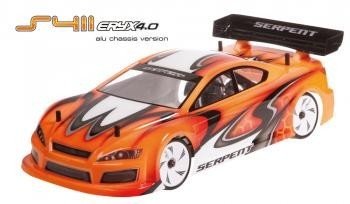

1/10 scale higher end competition rushing car the worldwide touringcar battle show. Electric The Serpent ERYX ERYX 4.0 could be the next big development stage the 411 platform. Featuring an ultra low centre of gravity, optimized fat circulation, high-end geometry and top-notch materials throughout, the ERYX can be your car for specific most useful times !
Specs:
- Course: 1/10th scale 190mm Electrical
- Function: 190mm Competition touring car
- Chassis: 2mm 7075 T6 aluminium, anodised, CNC machined
- Suspension: Front C-Hub suspension system system system
- Back axle: back gear- differential with composite gears
- Front axle: Front spool with blades
- Drive system: 4wd through 2 kevlar strengthened timing belts
- Shock absorbers: Super-Short RCM shock absorbers
- Wheel base: 254mm +/- 4mm
- Track-width front side: 190mm /- 6mm
- Track-width rear: 190mm /- 6mm
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width and Roll centers
- Included: Comprehensive colour PDF guide and guide guide
- Not included: engine, battery, rate Controller, tires, body, radio equipment.
Features:
- unique 2mm coated and laser etched 7075 T6 aluminium framework; dark grey anodised with ERYX logo, lowered machined sides for optimal flex and paid down CG, fully symmetrical also for flex
- brand-new shocksabsorbers; housing, reduced restriction, x-rings, machined bushings, shockrods, shockcaps, membrames
- 2mm greater front side carbon shocktowers to put in the newest shocks
- 2mm greater straight back carbon shocktowers to set up the current shocks
- brand-new mid-shaft pulley system with playfree construction, one screw fixture
- new kind one piece paid off CG 7075 T6 motormount, centraly mounted
- adjustable carbon/alu battery power supports to have battery front component or back precisely, effortlessly and securely
- steering-set with wider pivot system for far more direct impact
- enhanced diff gears for super smooth diff action
- Serpent springsteel front part Double Joint Cardan shafts
- difficult combination moulded suspension system system system components
- ball raced anti-roll pubs
- centrally mounted servo-mount, cheapest cg
- low friction belts and supertrue low friction pullies
Harder C-hub front
an ordinary system of all high-end touring cars, the ERYX features a front C-hub system in intense composite. The automobile comes standard with a 4-degree caster block it is furthermore offered several 2 and 6-degree obstructs. The C-hub is big sufficient obtaining the drive-shaft setup without dis-assembling the c-hubs.
Front suspension system system
such as the rear suspension system system system in setup, leading suspension system system recreations a reduced composite wishbone even though the top camber modification is managed making use of an aluminium track pole that will be solid, lightweight and may effectively manage results.
backside area with harder hands
a big part end concerning the ERYX features more powerful Hard paid down wishbones . The reduced wishbones can be used on both remaining and right sides, minimizing the number of free components needed seriously to bring in direction of track. The trunk rough upright features a pivot pin mounting point regarding base and 2 top camber link mounting holes for fine-tuning camber enhance.
Indentical
the best and buttocks of Serpent ERYX are fully indentical and been designed for top end and ease of maintenance. A big component bearing blocks was indeed developed in 2 pieces allowing the topside become just removed with 4 screws, proclaiming to offer you immediate access towards the differential for upkeep or modification. Most of the parts are machined from aluminium as they are anodized in gun steel grey.
core section
the latest one piece machined aluminium motorbracket is superlight and superlow and matches both stock and mod gearing well. The little front part alu bracket, is equipped with an alu bushing with long screw allowing you to link on top-deck. Additionally it is eliminated to generate extra flex. The seperate machined brackets support the light aluminium middle shaft/ 19T pulley.
Composite Gear differential with brand new material composite gears and X-axle
The ERYX comes provided a lightweight and smooth back gear-differential. This supersmall differential are created for all power of BL machines. Gear-diff may also be used regarding front part. This new variation has fresh kind composite inside gears and 3.5mm x-shape shaft and features covered aluminium outdrives. The metal gears may also be utilized or blended with composite. ( The ball-diff is optional).
Big bore shocks
This new Serpent bigbore onroad shockabsorbers paid off the biggest market of gravity furthermore further. They consist of threaded coated shock-bodies, pre-load surprise peanuts with o-ring, harder membrames , supersmooth and strong shock-rods with clip to put on the piston, entirely machined pistons ( 1,2,3 and 4 holes in kit) in a new yellowish product , toplevel x-ring /bushing package, light spring-cups, strong balljoints. The bonus would be the fact that you'll continue utilizing the normal size springs as before. Top quality race-springs put into color coding, grinded flat even for load.
Bumper
Leading bumper is created from a heightened cushioning foam product which is shaped to protect all of your front end from the automobile in case of a collision. The bumper is held in position with a sizable top-plate.
Ball-bearings
The ERYX comes with top-quality lightweight bearings with orange seals throughout, making the drive train actually efficient and letting it run extremely effortlessly.
Anti-roll pubs
The ERYX is supplied with coded anti-roll pubs front and back with a composite centering bracket. The anti-roll pubs are available in numerous thicknesses since they are from the wishbones utilizing short adjustable track rods, associated with a pivot ball on lower front wishbone, sufficient reason behind a ball straight to the trunk paid down wishbone.
The anti-roll pubs run in little tapered nylon inserts , combined with the anti-roll club is concentrated through one captured center bushing.
Spool
The vehicle comes given a front part spool which includes been produced from difficult anodised aluminium and generally speaking are employed in conjunction with blades to enhance lifspan. The design have been optimised to make certain that the component could be light as you are able to without compromising strength.
Steering construction
The Serpent ERYX utilises a centrally installed ballraced dual pivot steering assembly-rack in aluminium. Offset steering linkage for proper steering geometry and ackermann. The steering construction allows excessively exact steering and great control. The ackermann is adjustable if you use shims. The item pivots on wider low steering-shafts, producing an even more direct steering feel. The bearing in levers are pushed in for a play-free set up
Unique servo-holder
the initial and revolutionary servo owner has zero influence on tweak, due to the fact drifting over the framework and mounted directly to the steering-assembly into the heart of car. This keeps the excess fat below some other design.
Suspension brackets
For adjusting the vehicles toe-in and track-width, the ERYX has seperately installed suspension system brackets regarding front side and back for the automobile. Each bracket features an effortlessly recognisable volume that corresponds toward establishing being utilized and as a result of means they've been installed allows the customer to easily and accurately adjust their cars settings. The brackets had been developed such method that they are going to be found in anywhere in automobile. The inner brackets FR and RR are now split sort, to permit for more flex. The split suspension system system blcoks are mirror sort, for that reason you ought to use them either left or appropriate and obtain a brand new desired environment. In this way less different obstructs are expected for a fantastic choice of settings. Standard people: : 3.5/ 0.5 split blocks in right back, 2.0/ 0.5 ahead
DJC / CVD's spring-steel
This vehicle comes with a total range 4 quality hard coated spring-steel CVD shafts, that are an extremely constant, efficient and durable approach to transfer a lot of the energy the external liner. Top people are v2 type double joint cardans DJC, the trunk regular CVD design shafts.
Chassisplate
The newly developed exceedingly slim framework plate is machined from 2mm 7075 6 aluminium, lowered sides to cut back the middle of gravity and install the electronic devices reduced. All holes in the root of the framework are countersunk . The framework further features additional holes to set up loads and extra stiffners . All holes are because near to the centerline of framework, to create additionally flex.
Battery-stays carbon / alu
The battery power is held arranged by 2 mounts in regards to the centreline the car, and 2 special carbon/alu mounts with slits to mount the glass-tape. The carbon brace could be just relocated fronr or rearwarsd to move the battery pack more ahead or backwards. Below these these the carbon Lipo battery power holders are set up.
Belts - drivetrain
The ERYX features a 2-belt setup with a lengthy front side and a brief rear Kevlar reinforced low friction belt that combied with precision moulded gears creates an excellent smooth and free drive train.
Shocktowers
The Serpent ERYX features lowered shocktowers 2.5mm thick carbon dietary fiber surprise towers on front side and back from the vehicle. Each tower activities numerous holes for modification related to surprise absorber angle even though rear tower moreover will behave as the mount the back body articles and also the front side tower accommodates a third front part human body post.
