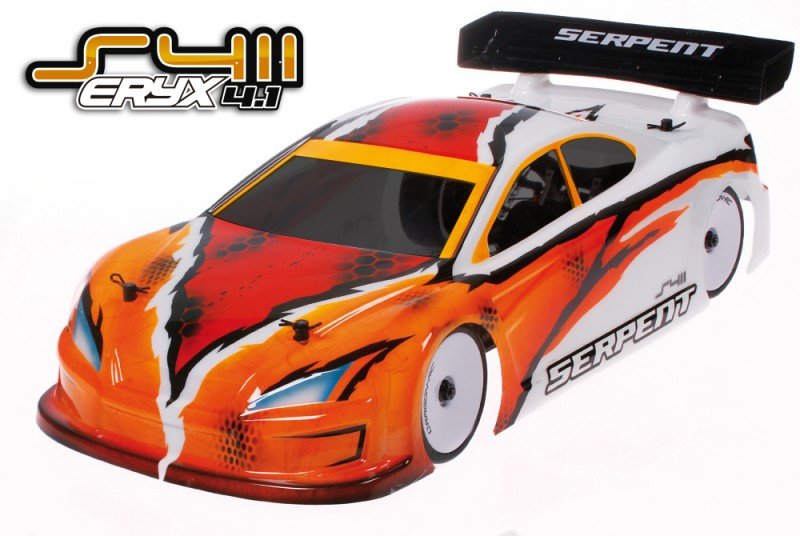

The Serpent ERYX 411-4.1 could be the next development stage the 411 platform. Featuring an ultra low centre of gravity, optimized fat circulation, powerful geometry and top-notch materials throughout, the ERYX may be the car for individual best times ! Serpent provides this ERYX 411 4.1 variation vehicle as choice towards the responsibility 4X car, for motorists that need to find a regular researching vehicle alongside a reduced cost. The ERYX 4.1 stays a higher end rushing car with a decent number of tuning options also it's suited to all levels of battle.
Needs:
- system: 1/10th scale 190mm Electrical
- Purpose: 190mm Competition touring automobile
- Chassis: 2mm carbon fiber, CNC machined
- Suspension: Front C-Hub suspension system system
- Back axle: right back yet again gear- differential with composite gears
- Front axle: Front spool with blades
- Drive system: 4wd through 2 kevlar strengthened timing belts
- Shock absorbers: Super-Short RCM surprise absorbers
- Wheel base: 254mm +/- 4mm
- Track-width front side: 190mm /- 6mm
- Track-width backside: 190mm /- 6mm
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width and Roll centers
- instructions: motor, battery pack, rate Controller, tires, human body, radio gear.
Features:
- 7075 T6 motormount, centrally mounted, enabling adequate flex
- upgraded differentials with exclusive internal gears for smoother action
- big bore shocks with pre-oiled x-rings
- difficult ingredient moulded suspension system elements
- 2mm carbon fibre framework and carbon flex kind top deck
- Ball raced anti-roll pubs
- Centrally mounted servo-mount, cheapest cg
- low friction belts and super genuine low friction pullies
Steering construction
The Serpent ERYX utilises a centrally arranged ball raced twin pivot steering assembly-rack in aluminium. Offset steering linkage for proper steering geometry and Ackermann. The steering installation allows exceedingly precise steering and great control. The Ackermann is adjustable using shims. They pivots on wider low steering-shafts, creating a far more direct steering feel. The bearing into the levers are forced in for a play-free installation
Original servo-holder
the initial and revolutionary carbon fiber servo owner has zero impact on tweak, due to the fact floating on the framework and mounted directly to the steering-assembly at the heart concerning the car. And this also keeps the extra fat lower than other design.
Suspension brackets
For adjusting the automobiles toe-in and track-width, the ERYX has separately set up suspension system system brackets within the front part and back about the car. Each bracket features an effectively recognisable amount that corresponds towards the surroundings used and as a result of method they're mounted allows someone to effectively and accurately adjust their cars settings. The brackets was indeed produced such means they may be utilized in anyplace to the car. The internal brackets FR and RR have been in truth split type, to allow to obtain more flex. The split suspension system obstructs are mirror kind, consequently you need to use them either left or appropriate and find a unique types of desired environment. In this manner less various obstructs are expected for a good number of settings. Standard ones: 3.5/ 0.5 split obstructs into the back, 2.0/ 0.5 towards front part
CVD's spring-steel
This automobile comes with a whole group of 4 quality hard coated spring-steel CVD shafts, being an incredibly constant, efficient and durable approach to move most of the energy the outer liner.
Chassis meal and top deck
abdominal muscles slim framework dish wound up being machined from 2.0mm carbon. All holes in foot of the framework occur countersunk. The framework further features additional holes to install loads and additional stiffeners. All holes are due to the fact shut on centreline linked to the framework, create also flex.
Flex type 2mm top deck allowing for optimal flex. Utilizing all or less screws to fasten it could almost certainly influence flex more.
Battery-stays
The electric batteries is held set up by 2 mounts on centreline linked to the vehicle, and 2 composite mounts with slits to include the glass-tape or use Velcron band.
Belts - drivetrain
The ERYX features a 2-belt configuration with a long front part side and a quick straight back Kevlar reinforced low friction gear that in conjunction with precision moulded gears produces a great smooth and free drive train.
Shock towers
The Serpent ERYX features 2.5mm dense carbon fiber surprise towers on front part and rear of car. Each tower tasks many holes for adjustment towards surprise absorber angle because the backside tower also will act as the mount for the back human body posts along with the front part tower accommodates a 3rd front part human anatomy post.
C-hubs front side
a normal system of most high-end touring automobiles, the ERYX features a front C-hub system in difficult composite. The automobile comes standard with a 4-degree caster block it's also given a collection of 2 and 6-degree obstructs. The C-hub is big adequate to get the drive-shaft construction without dis-assembling the c-hubs.
Front suspension system system
Just like the back suspension system system system in configuration, the key suspension recreations a hard composite wishbone since the top camber modification is handled using an aluminium track pole which is strong, lightweight which can effortlessly handle effects.
backside area with harder fingers
the trunk end of ERYX features better hard reduced wishbones. The reduced wishbones can be utilized on both left and right sides, minimizing the total amount of extra components needed seriously to bring towards track. The trunk difficult upright features a pivot pin mounting point on base and 2 top camber website link mounting holes for fine-tuning camber rise.
core component
The machined aluminium motor bracket is superlight and super low and matches both stock and mod gearing well. The little front side aluminum bracket could be fitted with an aluminum bushing with long screw to obtain connected toward top-deck. It could come to be eliminated to produce additional flex. The split machined brackets keep the light aluminium center shaft/ 19T pulley.
Composite Gear differential with completely new product composite gears and X-axle
The ERYX comes offered a lightweight and smooth straight back gear-differential. This supermall differential are designed for some associated with the power of BL devices. Gear-diff works extremely well regarding the front side. This brand new version has groundbreaking type composite interior gears and 3.5mm x-shape shaft and features covered aluminium outdrives. The steel gears can also be properly used or in conjunction with composite.
Big bore shocks
the newest Serpent big bore on road shock absorbers lower the centre of gravity further. They include threaded coated shock-bodies, pre-load shock peanuts with O-ring, harder membranes , super smooth and strong shock-rods with clip to place regarding the piston, totally machined pistons ( 1,2,3 and 4 holes in kit) in a fresh yellowish item , top-level x-ring /bushing package, light spring-cups, strong ball bones, pre-oiled x-rings.
Quality race-springs offered with color coding, grinded flat even for load.
Bumper
leading bumper is made from an increased padding foam material and it's also shaped to safeguard the entire front end the automobile in case of a collision. The bumper is held tolerate a large top-plate.
Ball-bearings
The ERYX comes with top-quality lightweight bearings with orange seals throughout, making the drive train excessively efficient and and that can run extremely smoothly.
