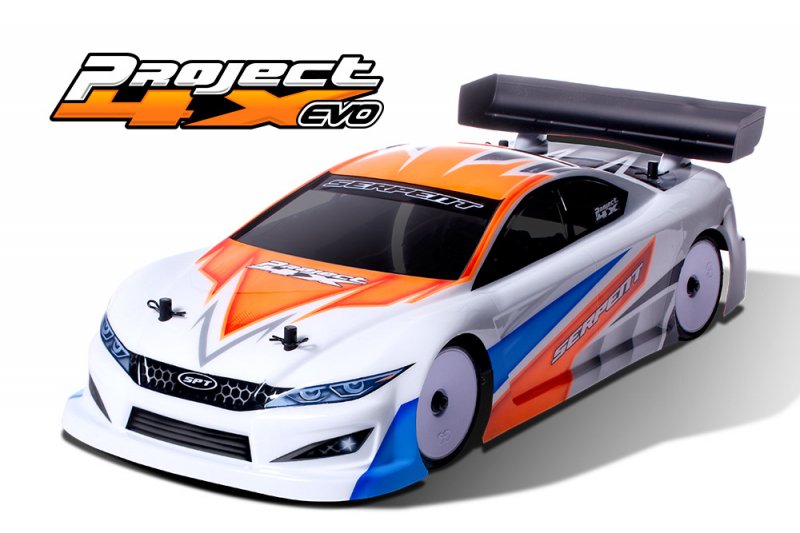

Serpent SER400031 Project 4X EVO 1/10 EP [SER400031]

Price:

£456.03

Brand:

Serpent

Model:

SER400031

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category

Write a review

alt="Serpent SER400031 Project 4X EVO 1/10 EP" title="Serpent SER400031 Project 4X EVO 1/10 EP"

Description

2016-2017 IFMAR World Championship 3rd spot
2016 EFRA EC A-main finalist, 2017 several ETS A-main finalist
Main amazing 4X EVO products
straight top-deck on cheap tweak

framework meal carbon with better flex characteristic

bigger heave dampers with an increase of oil and larger shock-springs

Motor mount with better flex control

Updated bumpers for access and satisfaction

Linear pull rods system for enhanced steering

Lower mounting point for RRS links

Main front and straight back brackets in a effective construction

Fixed length molded pull rods for simpleness and quality

improved centre shaft holders

Bladeless front part spool

Serpent designer David Ehrbar and Serpent are proud to release this amazing revolutionary and powerful 4X EVO vehicle towards the market.
As the automobile is certainly different, Serpent will spend a lot additional time and energy to prepare informative data on installation, set-up and upkeep the venture 4X EVO vehicle, in text, pictures and on line movie, to help you to discover and understand the theory and unleash its complete potential quicker. Although initially the venture 4X EVO vehicle may look notably complicated, after some explaining, you'll certainly soon recognize itâ€™s in reality super easy and fairly simple doing company with. But the primary advantage could it be is extremely a simple task to operate a car and likewise at the same time lightning fast. Innovation Performs. The Serpent undertaking 4X EVO will soon be here!
Overview the main specifications
- Separate roll and heave movement in automobile to create set-up easier and many other things accurate
- tiny and light roll dampers front side and straight back that are looking simply small amounts of oil, with through pole piston systems for that reason no membrane layer layer layer becomes necessary
- larger heave damper with a rise of oil and bigger springs
- Dampers consist of machined pistons for best perseverance
- Good array of heave and get springs
- Anti-roll club function incorporated in roll damper/springs
- Simple and fast to improve / replace your entire damper products
- front part and end are nearly identical, for that reason less additional elements needed
- Pivot ball suspension system with small balls for convenience and free motion
- effortless diff and spool elimination
- exceptionally low center of gravity
- Reversed steering system for better Ackermann geometry
- engine holder with right flex
- Re-Active straight back once again steering RRS system is standard
- Ball raced mid-shaft holders allow effortless maintenance and changing of spur gears
- Molded pull pole caused system with rockers to stimulate the dampers
- very same heave damper front side and backside that might be set up underneath the diff/spool right above the framework for cheapest feasible center of gravity
- Durable and smooth gear differential
- Battery mounting system enables reposition the battery power more front or back
- just in case there clearly was shorty Lipo's are employed, the Lip exist three straight ways
- One screw ride-height modification from framework component
- Lightweight front component aluminium spool with hardened steel outdrives, bladeless
- Carbon fibre framework in 2mm as standard
- DJC system within the front component built from spring-steel restrict wheel chatter and straight back regular cvdâ€™s produced from 7075 T6 aluminium save weight
- One brief plus one longer Kevlar reinforced drive gear and super true operating pulleys, midshaft pulleys made from difficult anodized aluminium for optimum durability
- Concept and design by Serpent Designer David Ehrbar from Germany
General
high-end 4wd touring automobile with an amazingly low centre of gravity and an authentic suspension system system which separates roll and heave set-up. This and a well proven transmission system and fundamental Serpent quality and engineering solutions.
Suspension
Into the 4X EVO vehicle the heave and roll from the car run and so are also set by themselves. Leading and end of this vehicle are almost identical in design and share many of the very same components front side and rear, to make sure you need less different spares.
Heave damper
there is certainly one heave damper right ahead part and another inside back in addition they assist exactly the same way. The heave damper is found just above the framework to cut back the centre of gravity. Molded pull rods that are with this top arms hook up to your rocker system. The rocker system is linked through a swivel device towards heave damper and roll damper device. The larger heave damper now has more oil inside and works together foam for settlement. The surprise springs are now larger in diameter plus much more effective. Various sebum and springs can be utilized for setup work, impacting primarily bump and on-throttle/off-throttle transitions. You can access from base associated with framework.
The journey height is placed with a straightforward one screw environment in the framework, both front and rear.
Roll damper
The roll damper unit have an oil body for dampening with a through shaft and possesses somewhat springtime for every part. This method controls the roll for this chassis; it really works as an anti-roll club.
Various natural oils and springs may be used for setup work. Your whole item happens after releasing simply 2 screws. You can have complete roll damper assemblies prepared to alter settings in moments.
Engine mount
extremely low 7075 T6 aluminium engine mount which doubles up as connector the midshaft holders, connection the RRS system, holder the aluminum stiffener and connector towards the key brace, all-in one.
Gear differential
The nicely shaped gear differential features molded internal gears causeing this to be super smooth. The compact and light item holds sufficient oil to supply constant performance through run. It's efficiently for and re-mount the differential.
Front spool
The coated aluminium front part spool with lightened springtime steel outdrives is a bladeless kind which guarantees superb administration and durability through the complete battle. It is effortlessly to obtain and re-mount the spool
Transmission
The transmission system consists of big diff and spool pullies and efficient low friction belts. The light centre shaft pullies are durable coated aluminium devices.
Mid shaft part
The ball raced durable hollow springtime steel mid shaft holds the two pullies combined with spur make. The create is quite easy to build and continue maintaining. The aluminium midshaft holders are exact same left and right.
Chassis
Carbon fibre framework in 2.0mm thickness. Countersunk holes and created to have equal flex left to fix. The screws to generate trip height are modified through base linked to the framework with only 1 screw ahead the other in the back with an easy and effective procedure to change the ride height.
Top deck
The topdeck include 2 right set up carbon braces mounted towards front part and right back brackets with 2 additonal aids the centreline. The extra helps can be employed or elsewhere perhaps not, concerning impact flex / torsion. The topdeck is a significant function to limit the tweak of vehicle in crashes.
Battery mounts
current battery power mounts stated in aluminium and carbon fiber and ask positioning the battery pack more towards front part or backing and securing it well setup. Shorty lipos could possibly be placed concentrated, in the front side or rearward spot.
Drifting servo mount
The servo mount is several a carbon brace and aluminium articles. The carbon brace is bolted toward primary brace and can maybe not touch the framework in order to avoid any flex impact.
Steering system
The ball raced aluminium steering system contains an inversed lever system to raised control the Ackermann environment. The angle distinction between the outside and inside wheel is more linear when compared with old-fashioned designs.
Drivetrain
inside the front part the 4X EVO features durable spring metal twin joint cardan shafts, coupled with blade sort spool.
in back lightweight coated aluminium cvd design dog bones are utilized with durable springtime metal wheel axles.
Both front side and straight back wheel hexes are a lightweight aluminium design
Steering obstructs / uprights
right in front part and back comparable steering blocks/uprights will be in usage. The pivot ball system permits simple and easy quick set-up improvements and works excessively efficiently. Inside front side part you will find 3 Ackermann jobs and shimming within the steering pole can be employed for fine tuning of bump steer characteristics. Inside straight back the device allows establishing Reactive back Steering. This RRS system allows a difference of toe-in whilst the suspension system system compresses for that reason increases part price.
Wishbones / pull rods / rockers
the reduced wishbones are the identical front side and straight back which means that very same is true of the most effective hands.
the low supply mounts of 2 brief pivot pins since the mounts have actually really countless area to flake out and play with wheelbase making use of videos. The reduced arms furthermore function 2 down end screws front side and straight back.
The top of wishbones allow fast caster adjustments with videos and run using an easily removable long pivot pin.
Rocker and pull rods system
The pull rods connect towards top of arms and run the ball raced aluminium rocker system which activates the dampening systems for heave and roll action. All track rods are made in coated lightweight and tough 7075 T6 aluminium. The pull rods are molded variation and 5 fixed lengths are included: 19, 19.5, 20, 20,5 and 21, 20 is standard.
Aluminium upper hinge pin holders and alum stiffeners
The construction is split in 2 sections allowing for easy upkeep and alter of settings. The internal top brace links both sides and produces a tremendously strong framework preventing tweak. The best brace is attached to the lower brackets with aluminum stiffeners. These stiffeners may be merely eliminated just in case more flex is necessary. The installation rest on roll centre spacers. To include extra shims for changed camber gain and roll enter is an easy and fast environment.
Bumpers and human anatomy mounts
ahead part a good bumper-set making use of a considerable size but light foam bumper which are often sandwiched between your reduced composite bumper and top graphite owner. The versatile moulded body articles with swivel-system have throughout. Optional human anatomy height systems may be situated.

inside right back the lower bumper will avoid injury to a large part connected with 4X EVO as well as the moulded human body articles with swivel system mount on a thick and rigid carbon dish, that will be part of the strong buttocks set up.
Decals
The kit contains a Serpent custom logo design decal sheet and a Project 4X logo-sheet.

Ball-bearings
good quality, high accuracy lubricated long-life bearings manufactured from hardened steel throughout.

Fasteners
quality steel fasteners for durability. Minimised number of different screws for effortless construction and upkeep
handbook
the whole color manual happens an amazing carbon appearance USB stick even though the latest variation and updates are downloaded through Serpent site. The manual features an intensive installation description including all exploded views. The exploded views are active, when pushing part number it may need one to the very best component quantity inside our web site.

Set-ups
As set-up sheets a blank, a default and an editable pdf file comes and updates and set-ups from group motorists take the internet within our internet site, too
movie
Serpent is planning some videos which reveal the important thing features in addition to the key construction steps and exactly how to create and maintain the 4X EVO.

endeavor 4X EVO vehicle design
The endeavor 4X EVO is a traditional and revolutionary rushing car. Itâ€™s very different design calls for the driver to take care to uncover the faculties pertaining to automobile and grasp its features. Whenever comprehended, it's not harder than almost every other rushing automobile.
Optionals
The merchandise selection of optionals the 4X EVO vehicle is small as Serpent made the vehicle top degree battle prepared.
Key optionals may be the different springs found in the heave and roll damper, the lightweight/flex chassis plate, stiffeners and human anatomy height adjusters.

needed to complete the automobile:
Body, body paint, radio equipment, speedo, engine, tyres/wheels, battery, tools, thread lock.
