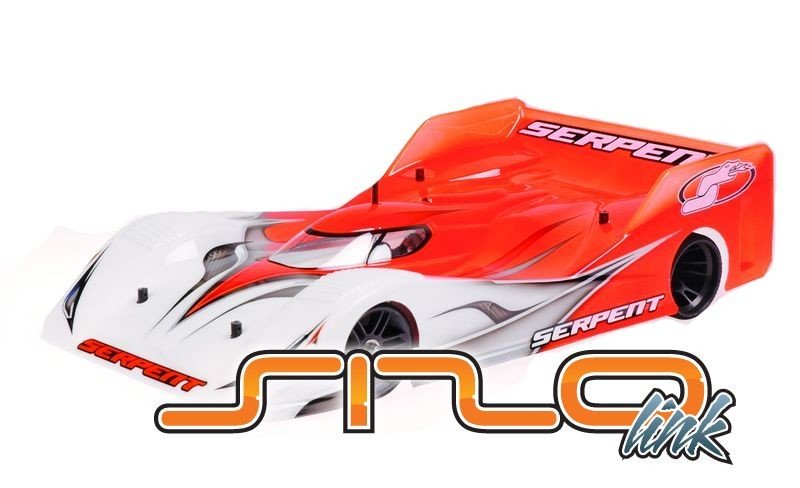

Serpent 1/12 scale pancar S120 Link. Link kind of the effective S120 1/12 scale pan-car (SP-400001). Powerful 1/12 scale pan chassis, with well machined carbon fiber and aluminium elements.
Requirements:
- program: 1/12th scale
- Function: Competition pan car
- Chassis: 2.5mm carbon fiber, 4-cell, CNC machined
- straight back axle: Graphite shaft with ball differential
- Drive system: 2wd direct drive to rear axle
- Shock absorbers: primary oil filled surprise absorber and lateral monoshock
- Wheel base: 195.5mm +/- 0.5mm
- Track-width front side: 163mm +/- 3mm
- Track-width backside: 170.6mm
Features:
Front end
leading end of automobile features 11 different alterations to obtain many from your car, which are fairly simple to regulate and determine. Fixed lower suspension system system hands take unique damped by the key strut which uses synthetic o-rings to occupy the flex in this area, once the grey anodised aluminium front side top wishbone mounts can be found in several caster views, the car being provided 6 level variants as standard. Because of the steering block master pins springtime packed, the cornering forces are channelled through the top wishbone, that assist the automobile to part at high prices.
Monoshock
Another unique function of S120 Link is its laterally mounted drifting monoshock which dampens the flex between framework along with the engine pod. Mounted utilizing ball bones through the top of back motor pod, both ends of surprise shaft are connected to the the top of straight back carbon human anatomy mount dish about the chassis, and because of its design even the tiniest of motions between your front part and right back concerning the car is efficiently consumed. This process plays a huge component in how the automobile becomes a big component which will be modified making use of various natural oils and shock pistons.
core area
The springloaded side-bars, one way links, are made from composite nylon and control the roll the framework, alongside the lateral damper and also the primary primary shock. Precision made springs and pivot balls.
one of the keys component is an assortment of elements to handle the motions with this end totally
- a central primary shock, good famous Serpent RCC technology; the shocktower allows various perspectives.
- the set down mono-shock, the same as found in the S120T before, with through kind shock-rod, and exemplary dampening charateristics
- 2 spring loaded shaped component pubs
These elements communicate generate perfect management (roll, bump and positioning) under all grip-conditions.
Body post
For securely mounting the body shell towards S120 Link, the automobile has strong synthetic human body posts front and rear. All 4 posts are offered with orange anodised adjustable collars to properly adjust your system's height as well as the articles are offered additional extended enabling the buyer to cut these with their particular favored size. Leading human anatomy articles are also created to help protect the best related to carbon framework from splitting in case there is certainly much front impact.
Battery mounts
On S120 Link, the cells might installed in 2 different roles by changing the composite battery pack insert mounting destination. Attaching it towards front part or backside using this slot means the cells can pass by 4mm, perfect for adjusting the automobiles fat distribution.The S120 Link also includes 4 pcs of Lipo inserts claimed in nylon, which can be glued toward Lipo pack and fit the battery-slots totally therefore keep these things set up.
Servo saver
The S120 Link comes offered an exceptional miniature servo saver, which by using orange anodised shims, has adjustable Ackerman. The kit contains 3 alu servo articles to select from, which enable completely focused mounting of any popular brand name servo.
straight back axle mounts
The lightweight graphite backside axle is mounted on bearings that sit within eccentric composite inserts allowing the customer to capacity to effectively and quickly affect the trunk trip height associated with the automobile by changing between inserts. The kit comes supplied with all 9 inserts which vary between 0 and 4mm, each differing by 0.5mm and all sorts of are reversible for a straight wider choice of modification.
back ball differential
The S120 Link comes given a durable and upper end ball differential. Effortlessly modified by a plastic nut, available through right backside wheel, the diff utilizes quality steel balls and meals and it's also provided both suitable silicone and graphite oil to be used during construction and upkeep.The re-designed right back diff features improved hardened D-plates and carbon shaft construction for super smooth diff action.
Central surprise absorber
to aid right back traction under acceleration and also to consume bumps, the S120 Link recreations a centrally installed shock absorber. Given a soft springtime, the pre load which are often modified, leading mount using this surprise absorber is used for adjusting a sizable part down end and selection of flexibility concerning the framework and motor pod.The main surprise is installed on a shock-tower with many functions available.
back motor pod, chassis
The strong foundation is established by the 2.5mm thick carbon fibre framework dinner with pouches permitting 4-cell packages or 1S Lipo pack, with helps enabling an ahead or backward battery pack destination, and enough space for many you valuable gadgets.
The newly produced motorpod is a beautifull blend of quality machined alu brackets and exemplary carbon fibre components, bolted together to come up with an ultra rigid right back pod. The latest motor-bracket allows the brushless engine become arranged inside optimal spot for vehicle security while offering good heat dissipation and .
