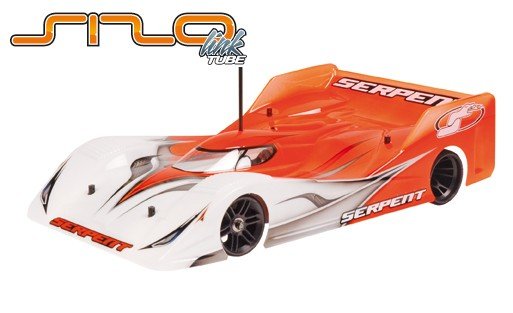

Serpent 1/12 scale pancar S120 Link-Tube version high end 1/12 scale pan framework, with nicely machined carbon fibre and aluminium elements. Exceptional completely adjustable front side end produces a lot of steering. Spring loaded Link system, in combination with diagonal positioned primary shock and tube-system, controls the roll of the automobile. Sensible Lipo framework provides big selection of set-up features and choices to dial the car in perfect for any track.
Requirements:
- course: 1/12th scale
- Purpose: Competition pan car
- Chassis: 2.5mm carbon fiber, Lipo
- straight back axle: Aluminium shaft with ball differential
- Drive system: 2wd direct drive to rear axle
- Shock absorbers: primary oil filled surprise absorber and pipes
- Wheel base: 195.5mm +/- 0.5mm
- Track-width front part: 163mm +/- 3mm
- Track-width rear: 170.6mm
Features:
right back motor pod, framework
The strong foundation is completed by the 2.5mm dense carbon fiber framework dinner created such technique your Lipo is initiated in lateral directiom, and will be mounted either held or right part, and room enough for the valuable electronic devices. The alu / carbon motorpod is a beautifull mixture of good machined alu brackets and high-quality carbon fibre elements, bolted together to make an ultra stiff back pod. The most recent motor-bracket allows the brushless engine become mounted inside perfect spot for automobile protection and will also be providing good temperature dissipation and .
Central shock absorber
to aid straight back traction under acceleration and to take in bumps, the S120 LT tasks a centrally installed shock absorber. Given a soft springtime, the pre load that can be modified, the key mount of the shock absorber can be utilized for adjusting a large part down end and range of movement in the middle of your framework and motor pod.The primary surprise is set up on a shock-tower with a few jobs available.
back ball differential
The S120 LT comes supplied with a durable and powerful ball differential. Effectively modified by a synthetic nut, available through right backside wheel, the diff uses quality steel balls and dishes and it's also supplied with both suitable silicone and graphite oil for use during arranged and upkeep.The backside diff features hardened D-plates and light alu shaft construction for super smooth diff action.
straight back axle mounts
The lightweight graphite straight back axle is installed on bearings that sit within eccentric composite inserts that enables anyone to capacity to quickly alter a large part journey height from the automobile by changing between inserts. The kit comes supplied all 9 inserts which vary between 0 and 4mm, each differing by 0.5mm and all sorts of types of are reversible for a straight wider choice of modification.
Servo saver
The S120 Link comes given a superior quality miniature servo saver, which through the use of orange anodised shims, has adjustable Ackerman. The kit includes 2 alu servo posts, which permit a perfectly centered mounting of any popular manufacturer servo.the small foam bumper may also be included.
Body post
For securely mounting our body shell towards S120 LT, the automobile has strong artificial human anatomy articles front and back. All 4 articles are supplied with orange anodised adjustable collars to precisely adjust our body's height and articles are given extra lengthy allowing the customer to cut these with their unique favored size. Leading human anatomy articles are also built to assist protect leading with this carbon framework from splitting whenever there's much front effect.
core area
The springloaded side-bars, inbound links, are made out of composite nylon and get a grip on the roll for the framework, alongside the pipelines along with the primary main surprise. Precision made springs and pivot balls.
the main element component is many different elements to manage the motions of a big part end perfectly
- a central main surprise, on the basis of the famous Serpent RCCX technology; the shocktower allows different angles.
- the anodised alu pipelines on both sides
- 2 springtime packed shaped component pubs
These elements communicate to generate perfect administration (roll, bump and positioning) under all grip-conditions.
Tube system
The S120-LT uses pipelines to controll the roll of this vehicle. This method plays a large component in how the car may be a sizable part that may be modified through usage of various oils, 15.000 for normal hold and 20.000 for high hold songs.
Front end
the important thing end of car features 11 different alterations to obtain the many from your own vehicle, which are not that hard to adjust and discover. Fixed paid down suspension system system arms are on their damped by the central strut leaving using plastic o-rings to make use of up the flex associated with the kind, although the grey anodised aluminium front upper wishbone mounts can be purchased in different caster angles, the automobile being given 6 degree versions as standard. Ride height spacers can be seen too in 0.5mm and 1mm. Using the steering block master pins springtime loaded, the cornering forces are channelled through the upper wishbone, which can make it possible for the vehicle to corner at high rates.
