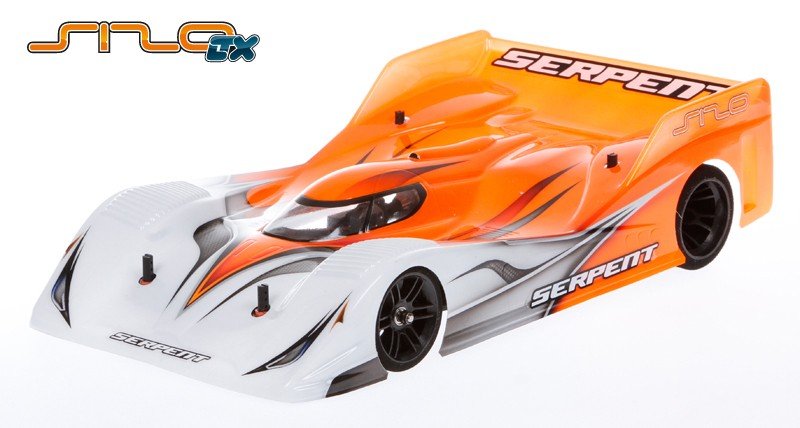

Serpent 1/12 scale pancar S120 LTX version. Higher end 1/12 scale pan framework, with nicely machined carbon fibre and aluminium components. Exemplary entirely adjustable front end creates countless steering. Spring loaded Link system, in conjunction with diagonal put primary shock and tube-system, controls the roll of car. Well-balanced Lipo framework offers wide range of set-up features and alternatives to dial the car in perfect for any track. 2012 variation has got the main pivotpoint relocated 8mm towards front component and it has now a 2mm ( rather than 2.5mm before) framework and 2mm podplate for paid down center of gravity. Other carbon components relocated in addition modification.
Requirements:
- course: 1/12th scale
- Function: Competition pan car
- Chassis: 2.0mm carbon fiber, Lipo
- back axle: Aluminium shaft with ball differential
- Drive system: 2wd direct drive to rear axle
- Shock absorbers: primary oil filled shock absorber and pipelines
- Wheel base: 195.5mm +/- 0.5mm
- Track-width front: 163mm +/- 3mm
- Track-width right back: 170.6mm
Features:
Front end
the leading end from automobile features 11 various alterations for the many from your own automobile, which can be simple to adjust and measure. Fixed paid off suspension system system arms take unique damped by the key strut leaving utilization of artificial o-rings to occupy the flex in this region, whilst the grey anodised aluminium front top wishbone mounts are available in various caster views, the auto being supplied 6 degree variants as standard. Ride height spacers can be acquired too in 0.5mm and 1mm. Along with the steering block master pins spring loaded, the cornering forces are channelled through top wishbone, that really help the auto to component at high prices.
Tube system
The S120-LTX uses pipelines to controll the roll the vehicle. This method plays a large part in the way the car becomes a large part that may easily be modified through the use of different oils, 15.000 for normal grip and 20.000 for high hold songs.
Core section
The springloaded side-bars, inbound links, are constructed of composite nylon and obtain a grip on the roll of this framework, utilising the pipelines and the primary central shock. Precision made springs and pivot balls.
The central part is a combination of elements to modify the motions of this rear end entirely
- a central main surprise, based on the famous Serpent RCCX technology; the shocktower allows different perspectives.
- the anodised alu pipelines on both edges
- 2 springtime packed shaped component pubs
These elements interact to create a perfect handling (roll, bump and positioning) under all grip-conditions.
Body post
For securely mounting your body shell towards S120 LTX, the auto has strong artificial body articles front and rear. All 4 articles are given with orange anodised adjustable collars to precisely adjust your body's height and so the articles are supplied additional stretched to permit someone to cut them with regards with their own preferred size. Leading human body articles will also be designed to help protect leading concerning the carbon framework from splitting in case there is much front impact.
Servo saver
The S120 Link comes offered a top quality miniature servo saver, which making use of orange anodised shims, has adjustable Ackerman. The kit includes 2 alu servo articles, which enable an entirely centered mounting of any popular brand name servo.the little foam bumper ordinarily included.
Back axle mounts
The lightweight graphite back axle is mounted on bearings that sit within eccentric composite inserts enabling the buyer to ability to quickly replace the straight back journey height in regards to the automobile by simply changing between inserts. The kit comes offered all 9 inserts which vary between 0 and 4mm, each differing by 0.5mm and all sorts of kinds of are reversible for a straight wider array of modification.
Back ball differential
The S120 LTX comes supplied with a durable and high-end ball differential. Efficiently modified by an artificial nut, available through right back wheel, the diff uses high-quality metal balls and meals and it's also supplied with both suitable silicone and graphite oil to be utilized during installation and upkeep.The right back diff features hardened D-plates and light alu shaft construction for super smooth diff action.
Central surprise absorber
to assist rear traction under acceleration and also to take in bumps, the S120 LTX recreations a centrally set up shock absorber. Given a soft springtime, the pre load which may possibly be adjusted, the leading mount of the shock absorber may be used for adjusting a sizable part down stop and selection of motion between framework and motor pod.
The main shock is attached to a shock-tower with many roles available.
Right back engine pod, chassis
The strong foundation is created by the 2.0mm dense carbon fibre chassis dinner produced such means your Lipo is installed in lateral directiom, and will be create either kept or right side, and room enough for the valuable devices. The aluminium / carbon motorpod is a beautifull mix of quality machined aluminium brackets and exceptional carbon fibre elements, bolted together to help make an ultra rigid backside pod. The modern motor-bracket permits the brushless engine be create into the optimal position for vehicle protection and offers good heat dissipation besides .
