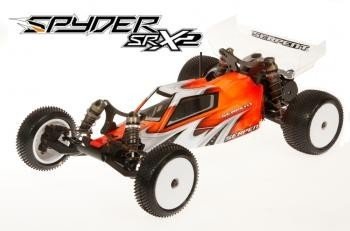

Spyder Buggy SRX-2 RM 2wd 1/10 Comprehensive spec competition variation 2wd buggy, for lower hold and dust conditions. Straight back engine variation. Principal needs: rear motor variation, composite framework, ball-diff, slipperclutch, 12mm alu hardcoated shocks, carbon shocktowers, completely adjustable, cab ahead human anatomy, big back wing.
Specs:
- Name: Spyder SRX-2 Back motor 2wd
- Class: 1/10 buggy 2wd
- Level: Competition
- Length: 385mm
- Width: varies with set-up
- Wheelbase: 281mm
- Gear Ratio: 2.43:1
- Body weight: varies with gear utilized
- Included: battle framework, human body, straight back wing, rims
- Maybe perhaps not included: tyres, tyre-inserts, electronic devices
Features:
- Powerful competition geometry
- straight back motor design
- distinctive steeringblock design
- Big bore 12mm RCM sort shocks with double system
- Innovative shocktower design
- undoubtedly Efficient Steering ackermann
- Adjustable back differential height
- 3 pad slipper clutch
- Narrow composite Chassis design
- minimal, cab forward body
Framework
Composite framework dish with a design enabling a great weight balance, and optimal area the gadgets, battery pack and servo. Leading Kick-up angle inside Chassis includes more approval for race and invite for substantially more nose landings
Carbon fibre front side and back shock towers. The 4mm dense carbon fibre surprise towers have actually in fact numerous shock angle functions allowing consumers to fine tune for varying track conditions.
Shock absorbers
Double system 12mm big bore shocks with difficult coated threaded systems, a unique restriction design, a fantastically sealing o-ring and spacer package. The Shocks may be within Bladder or Emulsion setups. The shock-set is sold with some moulded pistons available. A myriad of 5 springs-sets can be acquired to fine-tune the suspension system system settings. Shock Collars with interior o-rings are utilized on threaded numbers to set-ride height.
Front top bulkhead
the leading top bulkhead is and supports the top of links and shock tower in best possible method. The greatest area supplies the alternative to mount a front wing and sway club device
Front wishbones
leading Wishbones are produced from a brilliant strong composite item. The arms are angled to optimize the CG and pivot on 3mm captured pins inside and away. The arms have actually actually 2 mounting functions for surprise angle and they are willing to use an optional anti-roll club if needed.
Front and Rear Track Rods
Spring steel front side and back track rods are put up to durable composite captured ball bones. The track Rods have actually L/R threading for simple modifications.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 degree variation that are included. The caster obstructs are specially compact and strong devices made out of an exceptional composite product.
Steering Block and back Upright
The steering obstructs fit 5x10x4 mm bearings. A corner hub uprights utilize a far more substantial 5x14x4 outside bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and right back uprights make use of the best high power materials available.
Upright Settings
The rear uprights enable you to adjust, the toe in from -2 to + 2 degrees by using different inserts in addition inside kit.
Steering system and Ackermann
The steering system has a reverse swinging pivot system that optimizes the effectiveness through various sorts of corners. You have 3 Ackermann options to select from.
Wheel-axles and wheel hex.
The springtime metal wheel-axles utilized 12mm hex adapter to adhere to market criteria. The best springs steel axle is fixed, whilst the straight back wheel-hex is a clamping aluminium version.
Battery area mount and fat security
The battery is set up completely in center kind of the car, and can be relocated to front part or back into play with fat balance. Components of difficult foam are provided to do this and secure the battery constantly set up. The battery-top-brace has a secure quick launch system with handy twist peanuts.
Differential
The limited fall ball differential is a fantastic lightweight, effective and durable product. Using 1.8th inches diff balls for ultimate durability. The dwelling and construction is common key in the program, however the quality elements and well operating will make it get noticed. The height of diff could possibly be changed.
Engine meal and engine guard
The motor meal is a machined aluminium; it is then anodized and machined for fat. The composite engine guard will keep your motor safeguarded even with probably the most challenging of landings.
Anti-roll pubs
Anti-roll bars is fitted regarding front side and straight back regarding the car, but are optional. They could be utilized on high hold areas to aid expand adjust the automobiles performance
Back Transmission instance
The composite right back transmission situation is light and durable. Licenses your client to modify the differential height to each certain condition. In addition securely holds the motor meal, differential and helps a corner wing mount and straight back carbon fibre surprise tower.
Back driveshaft system, wheel-axles
The springtime steel drive shafts are slim and light, yet durable. The springtime metal wheel-axles are 5mm, light and durable, directed by both various size of bearings, interior 10x14x4 mm and outside 5x13x4 mm. The driveshaft pin is totally captured to prevent any failure. These bearings are truly to stand up the rigors of any track condition.
Back suspension system brackets and toe in
The 3mm springtime steel pivot pins happen in position by the suspension system system bracket made from aluminium. In the bracket you employ inserts establishing toe-in and roll center. You'll adjust the toe-in from 2 to 4 levels and adjust the anti squat from 0 to 4 amounts.
Straight back suspension system fingers
The long and durable angled straight back suspension fingers are getting to be tough devices to withstand the rigors of track even though hard landings. A large part supply provides 2 alternatives for shock destination and two mounting places the trunk anti-roll club if required.
straight back Chassis skid meal
The composite backside skid dish links towards chassis meal. This connection allows you to unclip the trunk end in one piece, but assists in easing the full total price of upkeep. It is also made from exceedingly high energy composite product.
Body shell and straight back wing
The light and low cab-forward design body, stated in excellent clear polycarbonate, has a fantastic flowing line, high front part windscreen for down force with indents in the part while you're viewing windscreen. The shark fin on top associated with the cabin provides not only design but security. The smooth human anatomy lines increase the cars appearance and try this nevertheless like
The polycarbonate right back wing uses raised cutes in edges to improve wheel approval.
Back wing owner
The composite back wing owner is attached with a big component bulkhead and surprise tower. Its totally adjustable from 0,2,4,6 and 8 amounts. Its fixed into spot by a washers and screws.
Ballbearings
high rate sealed stainless ballbearings with aeroshell oil
Fastners
Tricky metal , mostly allen screws, roundhead and countersunk. Minimized quantity of different allen heads generate targeting the auto easier.
Tires
Durable white nylon flat faced tires, created specifically to work with the advancements in front and right back suspension system geometry.
