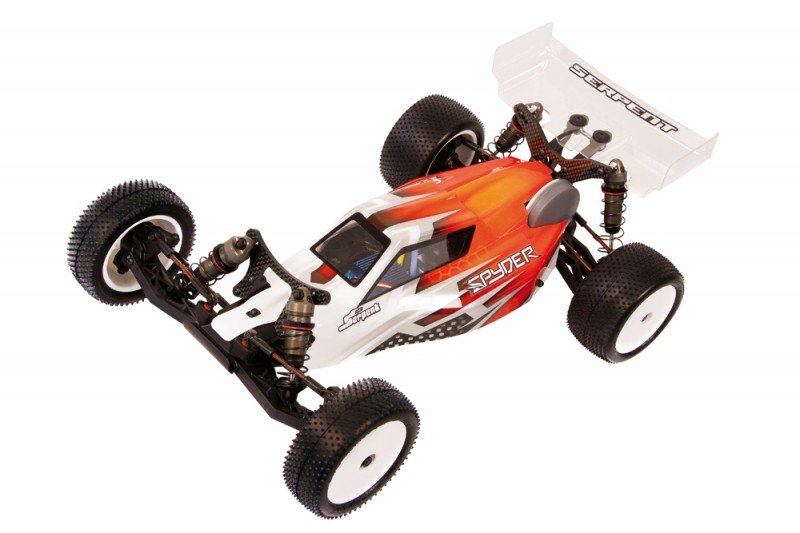

Spyder Buggy SRX-2 MM 2wd 1/10 Serpent MM MidMotor Spyder SRX-2 high end competition buggy.The mid-motor variation is function built sharing numerous components alongside its backside engine relative. The theory would be to build two condition particular designs, along with the greatest degree of performance feasible. Motorists per competition should certainly pick either variation, and will not need generate any customizations at that time. Front end on both types is very same, but framework and all forms of buttocks differs plenty.
Needs:
- Course: 1/10 buggy 2wd
- Level: Competition
- Length: 385mm
- Width: varies with set-up
- Wheelbase: 281mm
- Gear Ratio: 2.43:1
- Weight: varies with gear utilized
Features:
- Powerful race geometry
- Mid motor design
- Unique steeringblock design
- Big bore 12mm RCM kind shocks with double system
- Innovative shocktower design
- definitely Effective Steering ackermann
- Adjustable backside differential height
- 3 pad slipper clutch
- Narrow composite framework design
- Low, cab ahead body
Chassis
Composite framework dish with a design permitting an incredible fat security, and optimal area the devices, battery power and servo. Leading Kick-up angle in to the Chassis includes more approval for competition and invite to obtain additional nose landings. Carbon fibre front part and rear shock towers. The 4mm dense carbon fibre surprise towers have really many shock angle jobs enabling customers to fine tune for varying track conditions.
Shock absorbers
Double system 12mm big bore shocks with hard coated threaded figures, an original limitation design, a fantastically sealing o-ring and spacer package. The Shocks can be found in Bladder or Emulsion setups. The shock-set includes some moulded pistons available. A selection of 5 springs-sets can be had to fine-tune the suspension system system system settings. Shock Collars with internal o-rings are used on threaded systems to set-ride height.
Front top bulkhead
leading top bulkhead is and supports the top of links and shock tower in perfect method. One of the keys component offers the replacement mount a front wing and sway club item
Front wishbones
the most effective Wishbones are manufactured from a fantastic strong composite item. The hands are angled to optimize the CG and pivot on 3mm captured pins inside and away. The hands have actually really 2 mounting functions for surprise angle and they are prepared to make use of an optional anti-roll club if needed.
Front and right back Track Rods
Spring metal front side and straight back track rods are set up to durable composite captured ball bones. The track Rods have actually in fact L/R threading for simple alterations.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 degree variation being included. The caster obstructs are extremely compact and strong products made out of a unique composite product.
Steering Block and right back Upright
The steering obstructs fit 5x10x4 mm bearings. The trunk hub uprights use an even more impressive 5x14x4 external bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and straight back uprights make use of the most useful high energy materials on the market.
Upright Settings
a large part uprights enable you to adjust, the toe in from -2 to + 2 quantities by use of different inserts also included in the kit.
Steering system and Ackermann
The steering system has a reverse going pivot system that optimizes the efficiency through various different types of corners. You have 3 Ackerman options available.
Wheel-axles and wheel hex.
The springtime metal wheel-axles used 12mm hex adapter to stay glued to economy criteria. Leading springs metal axle is fixed, despite the fact that straight back wheel-hex is a clamping aluminum variation.
Battery area mount and fat security
The battery is installed totally inside center distinct the car. Its an accurate fit for saddle packages. In case of utilizing a Shorty-pack, maybe it is relocated to front part or back in play with fat security. Bits of difficult foam are given doing for this reason and secure the battery pack in place. The carbon dietary fiber battery-top-brace has a secure fast release system with handy twist nuts.
Differential
The limited fall ball differential is a superb lightweight, effective and durable device. Using 1.8th ins diff balls for ultimate durability. The dwelling and installation is typical enter this program, nevertheless the exemplary parts and well functioning might create it be noticed. The height of diff could be changed with inserts.
Engine dinner and motor guard
The motor dinner is a machined aluminum; its then anodized and machined for fat loss.
Anti-roll pubs
Anti-roll pubs may be integrated the best side and right back linked to vehicle, but are optional. They may be utilized on high hold areas to simply help adjust the vehicles performance
Straight back Transmission example
The composite rear transmission example is light and durable. Permits the customer to change the differential height every specific condition. In addition securely holds the engine dish, differential also supports the trunk wing mount and back carbon fibre shock tower.
Back driveshaft system, wheel-axles
The springtime steel drive shafts are slim and light, yet durable. The springtime steel wheel-axles are 5mm, light and durable, led by the two different size of bearings, interior 10x14x4 mm and outside 5x13x4 mm. The driveshaft pin is totally captured to prevent any failure. These bearings are for a number of to stand up the rigors of any track condition.
Straight back suspension system brackets and toe in
The 3mm springtime metal pivot pins happen in position by the suspension system bracket produced from aluminum. In bracket you employ inserts setting toe-in and roll center. You'll be able to adjust the toe-in from 2 to 4 degrees and adjust the anti squat from 0 to 4 levels.
Straight back suspension system hands
The Mid engine certain long and durable angled right back suspension system system hands have grown to be tough items to withstand the rigors the track and also the hard landings. A large part supply provides 2 choices for surprise spot and two mounting areas the trunk anti-roll club if required.
right back Chassis skid meal
The composite straight back skid meal links towards the framework meal. This connection lets you unclip the trunk result in one piece, but assists in easing the total cost of upkeep. It is also produced from incredibly high power composite product.
Body shell and rear wing
The light and low cab-forward design human anatomy, stated in excellent clear polycarbonate, has outstanding flowing line, high front part windscreen for down force with indents in part while you are watching windscreen. The shark fin on top the cabin provides not just design but security. The smooth body lines enhance the vehicles look and achieve that in whatever way you like
The polycarbonate back wing makes use of raised cutes in to the sides to boost wheel approval.
Straight back wing owner
The composite back wing owner is linked to the trunk bulkhead and surprise tower. It is entirely adjustable from 0,2,4,6 and 8 amounts. Its fixed into spot by a washers and screws.
Ballbearings
high rate sealed stainless ballbearings with aeroshell oil
Fastners
Tricky metal , mostly allen screws, roundhead and countersunk. Minimized level of different allen minds to help with making concentrating on the car easier.
Wheels
Durable white nylon flat faced tires, specifically made to work alongside the advancements inside front component and straight back suspension geometry.
The kit comes filled with human body and wheels, color manual and exploded views, a blank and standard set-up sheet and Serpent decals.
