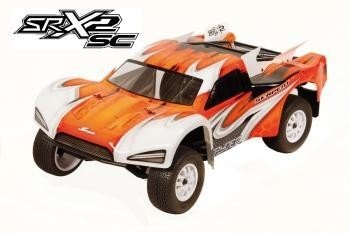

Spyder SRX2 SC RM 2wd 1/10 Competition level brief Course kit with composite framework and shocktowers, durable big front side part and right back bumper, ball-differential, slipper clutch, rear engine variation, double wishbone suspension with long fingers, big-bore 12mm hardcoated shocks with significant travel, SC body with flares, SC tires, springtime steel metal parts, big nerfbars with lexan inserts. Completely adjustable competition automobile.
Specs:
- Name: Spyder SRX-2 right back motor SC 2wd
- Course: 1/10 Sc 2wd
- Level: Competition
- Length: 540mm
- Width: 295mm (varies with set-up)
- Wheelbase: 330mm
- Gear Ratio: 2.43:1
- Body weight: varies with gear used
- Included: competition framework, Sc body, rims
- Maybe not included: tyres, tyre-inserts, electronic devices
Features:
- Upper end battle geometry
- long wishbones
- Unique steeringblock design
- Big bore 12mm RCM sort shocks with dual system
- truly effective Steering ackermann
- Wide component guards with polycarbonate inserts
- right back engine design
- Adjustable back differential height
- 3 pad slipper clutch / ball differential
- Narrow composite framework design
- Light SC body with flares
Chassis
Composite framework dish with a design permitting outstanding fat stability, and optimal room the electronics, battery pack and servo. The best Kick-up angle in Chassis includes more clearance for competition and ask for substantially more nose landings.
Durable composite front side and back surprise towers, with many shock angle positions allowing motorists to fine tune for varying track conditions.
Shock absorbers
Twin system 12mm big bore shocks with difficult coated threaded systems, a genuine limit design, a superbly sealing o-ring and spacer package. The Shocks can be found in Bladder or Emulsion setups. The shock-set includes several moulded pistons available. A variety of 5 springs-sets could be had to fine-tune the suspension system system settings. Shock Collars with interior o-rings are used on threaded systems to set-ride height.
Front top bulkhead
Leading upper bulkhead supports the top links and shock tower inside most readily useful feasible means. Leading area supplies the alternative to mount a front sway club device
Front bumper system
The durable composite front component bumper system will need into the worst of straight crashes and can allower for protect nose landing.
Front wishbones
The long front Wishbones are manufactured from a fantastic strong composite product. The fingers are angled to optimize the CG and pivot on 3mm captured pins internally and away. The arms have actually actually in fact 2 mounting jobs for shock angle and so are prepared to utilize an optional anti-roll club if needed.
Front and right back Track Rods
Spring steel front part and back track rods are set up to durable composite captured ball bones. The track Rods have actually actually L/R threading for effortless corrections.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 level variation that are included. The caster obstructs are incredibly compact and strong items created from a certain composite product.
Steering Block and right back Upright
The steering obstructs fit 5x10x4 mm bearings. The trunk hub uprights utilize a bigger 5x14x4 outside bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and rear uprights utilize most useful high power materials currently available.
Upright Settings
a big component uprights allow you to adjust, the toe in from -2 to + 2 quantities by using various inserts also included in the kit.
Steering system and Ackermann
The steering system has a reverse swinging pivot system that optimizes the effectiveness through various sorts of corners. You've got 3 Ackerman alternatives to pick from.
Wheel-axles and wheel hex.
The springtime steel wheel-axles utilized 12mm hex adapter to see economy standards. Leading springs metal axle is fixed, while the back wheel-hex is a clamping aluminium variation.
Battery room mount and fat stability
The battery is installed completely inside center form of the automobile. Its a precise complement seat packages. In case of utilizing a Shorty-pack, it might be relocated to front component or back once again to play with fat stability. Components of hard foam are given to accomplish consequently and secure the battery power arranged. The carbon fiber battery-top-brace has a secure quick launch system with handy alu twist peanuts.
Component guards
The side-guards or nerv-bars are a forward reasoning construction. The sideguards are designed wide, to ensure that it supports the edges linked to the body well. The within with this guards are available, but full of polycarbonate sheets. In jumps with SC vehicles you've got the ballooning impact, as wind is captured within the body, losing security. The shut component regarding Serpent Spyder SC will mostly avoid that from occurring, creating better balanced jumping and lots of other items security. The precut polycarbonate sheets come clear and will be painted in yr favourite color scheme too !
Differential
The limited slide ball differential is a good lightweight, effective and durable device. Using 1.8th inch diff balls for ultimate durability. The dwelling and construction is typical enter this class, nevertheless the top quality elements and well operating can make it be noticed. The height linked to the diff are changed with inserts.
Engine dish and motor guard
The motor meal come sin black colored anodized aluminium.
Anti-roll pubs
Anti-roll bars could possibly be fitted in the leading and backside the auto, but are optional. They could be placed on high hold areas to help adjust the automobiles performance
Straight back Transmission case
The composite straight back transmission situation is light and durable. Permits the driver to change the differential height to each particular condition. Additionally securely holds the motor meal, differential also supports the trunk wing mount and back carbon fibre shock tower.
Back driveshaft system, wheel-axles
The spring metal drive shafts are slim and light, yet durable. The springtime steel wheel-axles are 5mm, light and durable, led by both different size of bearings, interior 10x14x4 mm and outside 5x13x4 mm. The driveshaft pin is completely captured to avoid any failure. These bearings are let me make it clear to face up the rigors of any track condition.
Right back suspension brackets and toe in
The 3mm springtime steel pivot pins occur in destination by the suspension system system system bracket produced from aluminium. Inside the bracket you utilize inserts establishing toe-in and roll center. You are able to adjust the toe-in from 2 to 4 levels and adjust the anti squat from 0 to 4 degrees.
Straight back suspension system system hands
The long and durable angled back suspension system system arms are becoming tough products to withstand the rigors towards track although the difficult landings. The trunk arm provides 2 choices for surprise location and two mounting places the backside anti-roll club if needed.
straight back Chassis skid plate
The composite backside skid meal links on framework plate. This connection enables you to unclip a sizable component end up in one piece, but assists in reducing the sum total price of upkeep. Most commonly it is produced from acutely high energy composite item.
Backside bumper
a large part bumper area is an extremely durable item, quite simple to disassemble, and fits well utilising the back our body, to absorb the worst of back-end crashes.
Body shell and rear wing
The light practical hunting Quick Course design human body, integrated quality evident polycarbonate, has good flowing line, high front side windscreen for down force . The split flares inside straight back area help for safety in jumps, higher rate and cornering.
Ballbearings
tall rate sealed stainless ballbearings with aeroshell oil
Fastners
tricky metal , mostly allen screws, roundhead and countersunk. Minimized wide range of different allen minds in order to make looking after the vehicle easier.
Tires
Durable white Serpent Quick Course wheels.
