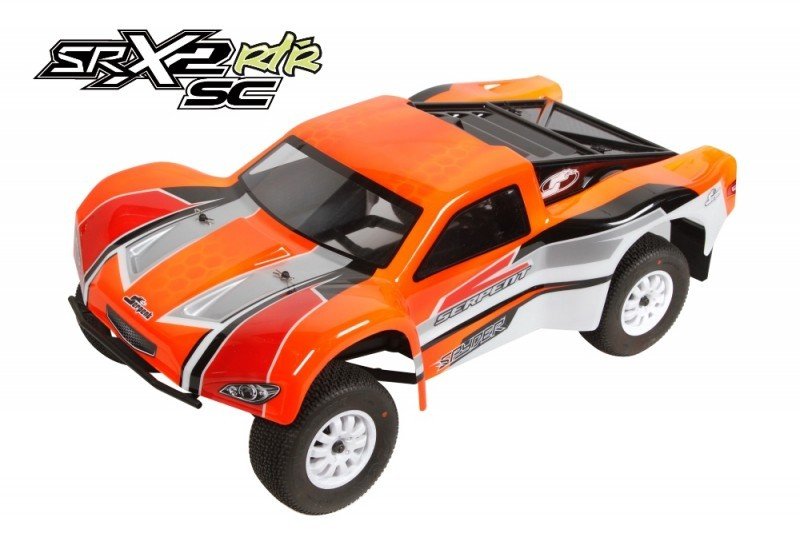

Spyder SCT SRX-2 RM 2wd 1/10 RTR The RTR Spyder SCT will depend on the high-end competition type of the Spyder SCT and shares many elements and geometry. All option elements of your competition variation alsof fits the RTR variation. Principal features - willing to race - Prepainted and precut SC human body - Dragon-RC 2.4 GHz transmitter TX-RX with LCD - Waterproof Electronic speedcontroller 45A - Brushless, sensorless motor 9T - expert factory installation and set-up - Dragon-RC premounted SCT tyres - springtime steel transmission - Gear differential and solid slipper clutch
Specs:
- Vehicle: Spyder SCT 2wd RM
- Course: SCT 2wd
- Degree: Competition
- Length:: 540mm ( with human body)
- Width:: 295mm (varies with set-up)
- Height:: 190mm
- Wheelbase:: 330mm
- Gear Ratio:: 2.43:1
- Weight:: differs with electronics utilized
- Included: Body, tires
- Maybe maybe not included: Batteries, tyres, any electronics.
Features:
- ready to fight
- Prepainted and precut SC human anatomy
- Dragon-RC 2.4 GHz transmitter TX-RX with LCD
- Waterproof Electronic speedcontroller 45A
- Brushless, sensorless engine 9T
- expert factory put up and set-up
- Dragon-RC premounted SCT tyres
- Spring metal transmission
- Gear differential and solid slipper clutch
- upper end battle geometry
- long wishbones
- Unique steeringblock design
- Big bore 12mm RCM type shocks with dual system
- Highly Effective Steering ackermann
- Wide side guards
- straight back engine design
- Narrow composite chassis design
- Light SC body
Framework
Composite framework dish with a design permitting outstanding weight protection, and optimal room the gadgets, battery pack and servo. Leading Kick-up angle inside Chassis includes more approval for racing and invite for significantly more nose landings.
Durable composite front and rear shock towers, with numerous shock angle jobs enabling motorists to fine tune for varying track conditions.
Shock absorbers
Twin system 12mm big bore shocks with coated threaded systems, a geniune limit design, a fantastically sealing o-ring and spacer package. The Shocks may be used in Bladder or Emulsion setups. The shock-set comes with a couple of moulded pistons available. An array of 5 springs-sets can be had to fine-tune the suspension system settings. Shock Collars with inner o-rings are employed regarding threaded systems to set-ride height.
Front top bulkhead
Leading top bulkhead supports the upper links and shock tower inside best feasible technique. The best component supplies the choice to mount a front sway club item
Front bumper system
The durable composite front bumper system will absorb the worst of straight crashes and that can allow salvage nose landing.
Front wishbones
The long front side Wishbones are made of an excellent strong composite material. The arms are angled to optimize the CG and pivot on 3mm captured pins in and away. The hands have really 2 mounting jobs for shock angle and are usually usually often prepared to take advantage of an optional anti-roll club if needed.
Front and straight back Track Rods
Spring metal front part and back track rods are installed to durable composite captured ball bones. The track Rods have in fact L/R threading for effortless alterations.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 degree version which are included. The caster obstructs are especially compact and strong devices created from a certain composite product.
Steering Block and straight back Upright
The steering obstructs fit 5x10x4 mm bearings. A sizable part hub uprights utilize a more impressive 5x14x4 external bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and backside uprights utilize on the list of better high power materials available today.
Upright Settings
a big component uprights enable you to adjust, the toe in from -2 to + 2 amounts by utilizing various inserts also inside the kit.
Steering system and Ackermann
The steering system has a reverse moving pivot system that optimizes the effectiveness through various different forms of corners. You have got 3 Ackermann alternatives to select from.
Wheel-axles and wheel hex.
The spring metal wheel-axles utilized 12mm hex adapter to see market requirements. The front springs steel axle is fixed, considering that the straight back wheel-hex is a clamping aluminium variation.
Battery space mount and fat stability
The battery power is set up entirely in center style of the car. Its a precise complement saddle packages. In the eventuality of utilizing a Shorty-pack, it could be relocated to front part or back into play with fat stability. Components of hard foam can be obtained doing consequently and secure the battery power constantly in position. The carbon fibre battery-top-brace has a secure fast launch system with handy alu twist nuts.
Part guards
The side-guards or nerv-bars are a forward reasoning construction. The sideguards are produced wide, therefore it supports the sides related to human anatomy well. The inner of this guards can be had, and you will be saturated in optional polycarbonate sheets. In jumps with SC cars you've got the ballooning impact, as wind is captured in the body, losing security. The shut part concerning the Serpent Spyder SC will mostly avoid that from happening, creating better balanced bouncing and much more protection. The precut polycarbonate sheets come clear and certainly will be painted in yr favourite color scheme too !
Differential
The gear-differential is an excellent lightweight, effective and durable product. The dwelling and construction is typical input the program, however the quality elements and well operating can simply make it be seen. The height in regards to the diff can be changed with optional inserts.
Clutch
the auto features an incredible slipper in conjunction with a steel gear, to obtain a straightforward and durable system. The slipper clutch is optional.
Engine dish and motor guard
The engine dinner comes in anodized aluminium.
Anti-roll pubs
Anti-roll pubs can be built in leading part and straight back of car, but are optional. They could be applied to high hold areas to help expand adjust the automobiles performance
Rear Transmission situation
The composite back transmission situation is light and durable. Permits the motorist to manage the differential height each and every particular condition. Additionally firmly holds the motor plate, differential alongside supports a corner wing mount and rear shock tower.
Back driveshaft system, wheel-axles
The springtime metal drive shafts are slim and light, yet durable. The spring steel wheel-axles are 5mm, light and durable, directed by the 2 various size of bearings, interior 10x14x4 mm and external 5x13x4 mm. The driveshaft pin is fully captured to prevent any failure. These bearings are for several to handle up the rigors of any track condition.
Rear suspension system system system brackets and toe in
The 3mm spring steel pivot pins happen in position by the suspension system bracket produced from aluminium. Within the bracket you utilize inserts developing toe-in and roll center. You are going to adjust the toe-in from 2 to 4 levels and adjust the anti squat from 0 to 4 degrees.
Straight back suspension system fingers
The long and durable angled back suspension system hands are especially tough devices to withstand the rigors of track and difficult landings. A large component supply provides 2 alternatives for surprise position and two mounting places a corner anti-roll bar if required.
Rear Chassis skid dish
The composite back skid dish links toward framework meal. This connection allows you to unclip a corner end up in one piece, but assists in reducing the sum total cost of maintenance. It is usually created from incredibly high energy composite item.
Back bumper
the trunk bumper part is a really durable product, an easy task to disassemble, and fits well utilizing the rear linked to the human body, to absorb the worst of back-end crashes.
Body shell and back wing
The prepainted and precut light practical searching brief program design human body, built-in top quality clear polycarbonate, has a fantastic flowing line, high front side windscreen for down force . The split flares into the straight back part assist for safety in jumps, higher rate and cornering.
Ballbearings
High rate sealed steel ballbearings with aeroshell oil
Fasteners
intensive steel , mostly allen screws, roundhead and countersunk. Minimized range various allen minds to create caring for the automobile easier.
Wheels
Durable white Serpent brief Course tires and premounted Sc tyres.
RTR gear:
Dragon-RC 2.4GHz transmitter with 10 vehicle memory, higher level set-up opportunities, big LCD display. Along with supersmall receiver.
Effective Dragon-RC 9T brushless / sensorless motor.
Waterproof Dragon-RC electronic speedcontroller.
Dragon-RC premounted offroad tyres.
