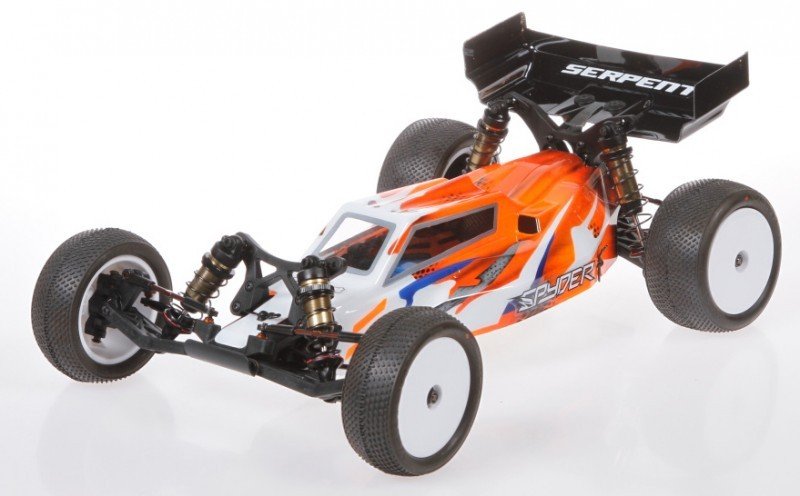

Spyder SRX2 Mid Hybrid 1/10 2wd The SRX2 MH key features - coated aluminium framework with seperate aluminium kick-up meal - 2 transmissions included: 3-gear standing and 3-gear laydown ( 4-gear standing and 4-gear laydown are optional) - big bore shocks - ball differential - slipper clutch - adjustable carbon battery pack brace - buggy 2wd MH body and big back wing
Specs:
- Car: Spyder SRX-2 MidHybrid 2wd
- Class: 1/10 buggy 2wd
- Degree: Competition
- Length: 385mm
- Width: differs with set-up
- Wheelbase: 281mm
- Gear Ratio: 2.43:1
- Body weight: varies with gear utilized
- Included: battle chassis, human body, straight back wing, rims
- Maybe not included: tyres, tyre-inserts, electronic devices
Features:
- High performance competition geometry
- Narrow anodised aluminium 7075 T6 framework design with composite sideguards / stiffeners and seperate aluminium kick-up meal
- Upright transmission / engine design with light 3 gear transmission
- Laydown transmission / engine design with light 3 gear transmission
- extremely efficient steering Ackermann
- Big bore 12mm hardcoated shocks with double system
- Composite shocktower design for additional hold and durability
- Smooth ball-differential ( gear-diff optional)
- 3 pad slipper clutch
- Composite battery power owner
- minimal, cab ahead human anatomy
- Durable and efficient suspension system system front and rear
The SRX2 MH kit is a 2 in 1 car, as Serpent provides 2 sort of transmission in kit to select from. 1 x 3-gear upright transmission for low to moderate traction = LMT 1 x 3-gear laydown transmission for medium to high traction = MHT
The Spyder SRX2 LMT ( minimum to moderate traction) will perform most readily useful at low grip and medium traction songs like yard, sand and clay. ( For super low traction Serpent provides the Spyder SRX2 straight back engine kit).
The Spyder SRX2 MHT ( medium to high-traction) will succeed at medium to high traction tracks like carpeting, astro and high hold clay.)
Framework
Coated and laser engraved 7075 T6 aluminium framework dish with a design allowing an incredible fat security, and optimal area the gadgets, battery power and servo. The aluminium front part kick-up dinner is split and angled for substantially more approval for battle and invite for better nose landings. ( the separate kick-up dish lets you also install the optional carbon chassisplate).
Transmission
The SRX2 MH kit is certainly a 2 in 1 vehicle, as Serpent offers 2 form of transmission inside kit available.
1 x 3-gear upright transmission for low to moderate traction = LMT
1 x 3-gear laydown transmission for medium to high traction = MHT
Serpent provides some upgrade sets to suit a 4 gear upright transmission system, or a 4 gear laydown transmission aswell.
Shocktowers
Composite front component and straight back shock towers. The surprise towers have numerous shock angle jobs allowing motorists to fine-tune for varying track conditions. The optional carbon variations allow some extra tightness to aid with general hold.
Shock absorbers
Double system 12mm big bore shocks with hardcoated threaded systems, an authentic limit design, a fantastically sealing o-ring and spacer package. The shocks works extremely well in bladder or emulsion setups. The shock-set comes with a collection of moulded pistons available. Many 5 springs-sets can be had to fine-tune the suspension system settings. Shock collars with inner o-rings are used on the threaded systems to set-ride height.
Front upper bulkhead
Leading top bulkhead is strong and supports the top links and shock tower inside most readily useful means. Leading part provides the substitute for mount a front wing and sway club device
Front wishbones
The wishbones are produced from a fantastic strong composite product. The gullwing hands to optimize the CG and pivot on 3mm captured pins inside and away. The arms have really 2 mounting functions for shock angle as they are frequently prepared to use an optional anti-roll bar if required.
Front and back Track Rods
Spring steel front and back track rods are create to durable composite captured ball bones. The trackRods have actually actually actually L/R threading for easy alterations.
Castor obstructs and settings
Caster block inserts come as 0, 2.5 and 5 degree version which are included. The caster obstructs are incredibly compact and strong units made out of a specific composite product.
Battery room mount and fat stability
The battery is established totally in center distinct the car. In case of utilizing a Shorty-pack, maybe it's relocated to front or back once again to play with fat safety. Components of difficult foam are provided to get this done and secure the battery power put up. The carbon soluble fbre battery-top-brace has a secure fast launch system with handy twist peanuts and will act as a chassis stiffener too. The flex are effects with the use of 2 small grubscrews. With all the current upright
Differential
The restricted slip ball differential is a fantastic compact, effective and durable device. Utilizing 1.8th inches diff balls for ultimate durability. The dwelling and place up is typical input this course, however the top quality components and well working helps it be is noticed.
Slipper clutch
The durable slipperclutch makes use of a 3-pad system with resilient pads, hard anodised aluminium components and springsteel shaft. The pre-load nut can be simply reached and set.
Motor meal and engine guard
The motor plate is a machined aluminium; its then anodized and machined for weight loss.
Anti-roll pubs
Anti-roll pubs are fitted regarding front part and back regarding the car, are optional. They could be placed on high hold areas to help expand adjust the automobiles performance
Back Transmission instance
The composite straight back transmission example is light and durable. It securely holds the engine dish, differential plus supports the rear wing mount and backside shock tower.
Back driveshaft system, wheel-axles
The spring steel drive shafts are slim and light, yet durable. The springtime steel wheel-axles are 5mm, light and durable, directed by the two different size of bearings, interior 10x14x4 mm and external 5x13x4 mm. The driveshaft pin is totally captured to avoid any failure. These bearings are without a doubt to address up the rigors of any track condition.
Right back suspension brackets and toe in
The 3mm springtime steel pivot pins take place create by the suspension bracket produced from aluminium. Within the bracket you employ inserts to create toe-in and roll center. You'll be able to adjust the toe-in from 2 to 4 levels and adjust the anti squat from 0 to 4 quantities.
Back suspension system fingers
The long and durable back suspension system system arms are getting to be tough products to withstand the rigors regarding the track plus the hard landings. The trunk supply provides 2 alternatives for surprise destination and two mounting places for the back anti-roll bar if needed.
Body shell and straight back wing
The light and low cab-forward design human body, stated in quality clear polycarbonate, has a pleasant going line, steep front part windscreen for down force with indents into the area while you are watching windscreen. The shark fin at the top of the cabin provides not only design but security. The smooth human anatomy lines enhance the vehicles look and accomplish that in whatever way you would like
The polycarbonate straight back wing uses raised cutes to the sides to enhance wheel approval.
Straight back wing owner
The composite back wing owner is attached to the rear bulkhead and shock tower. It's completely adjustable from 0,2,4,6 and 8 quantities. Its fixed into location by a washers and screws.
Ballbearings
high rate sealed metal ballbearings with oil.
Fasteners
Rough steel , mostly allen screws, roundhead and countersunk.
Tires
Durable white nylon flat faced tires, specifically designed to do business with the advancements inside front part and rear suspension geometry.
Steering system and Ackermann
The steering system has a reverse going pivot system that optimizes the effectiveness through various different varieties of corners. You have got 3 Ackermann choices.
Wheel-axles and wheel hex.
The springtime steel wheel-axles utilized 12mm hex adapter to stay glued to market demands. Leading springs steel axle is fixed, even though the straight back wheel-hex is a clamping aluminium variation.
Steering Block and back Upright
The steering obstructs fit 5x10x4 mm bearings. The trunk hub uprights utilize a larger 5x14x4 outside bearing and 10x15x4 mm inner for ultimate lasting performance. The steering obstructs and back uprights use one of the better high power materials on the market.
Upright Settings
a corner uprights allow you to adjust, the toe in from -2 to + 2 amounts by using different inserts furthermore inside the kit.
