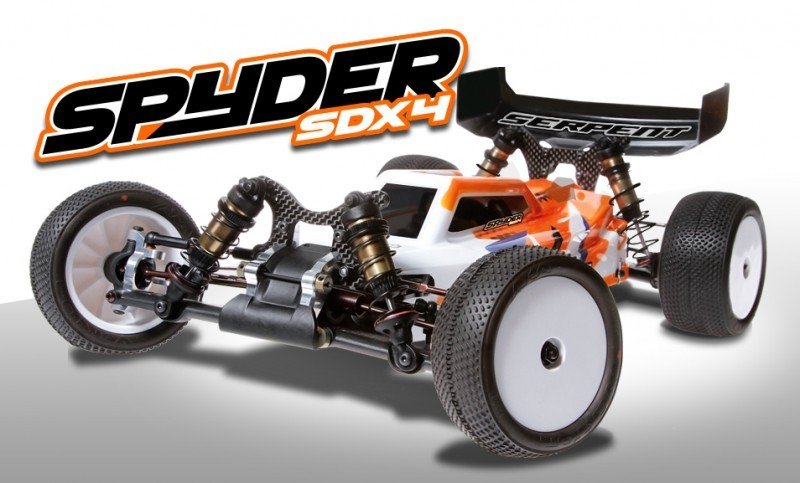

A brandnew first class Race degree 1/10 scale shaftdrive 4wd buggy actually clean, fast and simple available design. Made to perform on every area with versatile layouts which engine, battery pack and speedo could be installed in plenty of various places. Highly accessible for maintenance and set-up, with a amount of screws and screw types.
Needs:
- Automobile: Spyder SDX-4
- Course: 1/10 buggy 4wd
- Level: Competition
- Wheelbase: 288mm
- Front width: 240mm
- Back width: 240mm
- Weight: is founded on devices and tyres used
- Included: race framework, human anatomy, straight back wing, rims
- Perhaps maybe not included: tyres, tyre-inserts, electronic devices
Features:
- Lightweight clamp fitted gear-diffs alongside a primary slipper
- front part and right back compact and light gear diffs and main slipper
- 7075 T6 aluminium main diff/slipper owner and motormount
- 7075 T6 aluminium bulkheads front and back
- 7075 T6 aluminium 2mm hard coated framework and carbon stiffeners
- 7075 T6 aluminium c-hubs
- 7075 T6 aluminium uprights, equal L and R
- 7075 T6 aluminium hardcoated suspension system brackets x 4
- Closed type suspension system arms with optional carbon top-inserts
- pivotball sort inner hinges
- bigbore 1/10 shocks with hardcoated housings may be employed emulsion or membrame design
- springtime steel universal drive and main shafts
- carbon shocktowers
- carbon framework stiffner
- carbon mid area top-plate
- carbon top steering bracket
- carbon steeringplate u-bracket
- suprisingly low and sleek 4wd human anatomy and big durable back wing
- High-quality ball-bearings
Framework
The hardcoated lightweight 2mm 7075 T6 aluminium framework has the right flex with the composite side-guards / framework stiffeners and center spline. All holes are countersunk to have a totally flat bottom area. Holes are centered and symmetrical additionally for flex.
Chassis stiffener
Inside backside the SDX4 features a carbon fibre framework stiffener that's clamped concerning the rr fr suspension system system bracket and bulkhead and includes the guts. The brace has 5 optional holes to find the stiffness by putting the tiny stiffener pole and screw and sometimes even including more poles/screws.
the merchandise influences end flex and it's also set according to hold levels and driving design.
Battery and stays
The SDX4 automobile takes a shorty in standard trim, you can also mounts seat packages as required. The battery power is held constantly in place by a straightforward to operate composite battery-cover with a twistnut about the same side.
electronics
the center of the automobile allows many area to install the absolute most used speedo and receivers, with the transponder. The automobile also allows room enough enable good routing of the cables. Quietly associated with slipper the SDx4 provides 2 unique cable guiders.
Designs to pick from
- Standard is shorty battery power backside appropriate, motor right back kept, speedo/RX front side kept , servo front side right
- motor more toward center ( and swap front part and back main driveshafts)
- Shorty left and motor right
- Motor front side left and esc right back kept
- Motor front component left and chair packages in straight back ( needs optional chair pack battery pack brace-set)
Servo mount
The servo is installed inside automobile with a stand created from alu and carbon elements, and it is attached to the centerline inside automobile, to help keep additionally flex. Different spacers and horns are included to guide essentially the most used servo brands. An optional component additionally allows the servo to be relocated in steering meal and driveshaft. Optimum range of designs.
Drivetrain
The SDX4 utilizes lightweight springsteel univeral driveshafts front and straight back and main universals too.
Gear-diffs and circumstances
the 2 lightweight oil-filled gear differentials front component and backside. These super smooth devices are light and compact and very durable. The differentials will also be really a simple task to generate as they are zero-maintenance.
Both outside differential circumstances ( front side and back) are clamped relating to the aluminium bulkheads and need no other fasteners anyhow. Super quick and easy fast for maintenance.
Differential main gear and bevel gear.
The accuracy machined directly cut differential main gear and bevel gear are manufactured in hardened springsteel for smooth procedure.
Balljoints / trackrods
completely new design and item balljoints for smooth suspensions and steering. The external steering balljoints are angled to clear all rims/tyres . The trackrods and camberlinks are produced in slim but durable springsteel with L/R threading for simple adjustment.
Shocks
Serpent difficult coated surprise figures and composite surprise tops for super smooth procedure and durability. 3.2mm shafts with brand new pre-oiled X-ring package and molded pistons. The shocks can be utilized either emulsion or membrane layer layer setup. The shock springs have actually in fact grounded ends, examined and matched for perfect equal procedure. Ride height are effortless set utilizing the threaded collars which may have o-rings inside by which to remain destination.
Shock towers
extremely durable 4mm dense carbon fibre front and straight back shock towers with 3 jobs for shock angle. For roll center modification the very best bracket features 6 holes to chose camberlink jobs. 3 internal and 3 outside. The trunk you have got 8, 4 inside and 4 outer.
Shock is still
Very durable aluminum surprise stays alongside a little bushing and lightweight composite flanged nuts.
Slipper clutch
This light slipper-clutch unit, is a spring stuffed 3 pad variation, enables to modify the capability blood circulation.
Front suspension
Strong composite paid down suspension system system arms with mounting spots the pivotball caused anti-roll club. The arms are a shut type design for aero effect, rigidity and clean appearance. Regarding top part optional carbon inserts is used in the event harder hands are expected for control. Composite insertplates are standard. The very best fingers have actually 2 shockangle jobs.
Steering obstructs and c-hubs
The lightweight composite steeringblocks are coupled with aluminium 7075 T6 c-hubs. The c-hubs has 2 functions for rollcenter, and certainly will be further finetuned by simply utilizing practically shims. The c-hubs are 5 level, other optional people are 0 and 3 degree.
Steering
The completely ball raced angled dual axis steering system with integral servo saver function, provides an extremely very nearly perfect Ackermann effect. Ackermann might be set with small dishes which mount towards steering hands and so the black colored colored colored cotaed aluminium steeringbrace has 2 holes available. The servosaver has a pre-load nut to easily set the specified anxiety.
The steeringsystem is installed on a carbon fiber u-bracket that also links leading staying and right edges and functions stiffener.
Right back suspension
Strong composite paid off suspension system system system arms with mounting spots the pivotball caused anti-roll club. The hands are a closed type design for aero impact, rigidity and clean appearance. In top component optional carbon inserts works extremely well whenever harder fingers are essential for control. Composite insertplates are standard.
a corner hands have actually actually really 2 surprise mounting positions for every single part front part and backside. Leading part and right back shockmounting positions differ and fingers can be utilized on both sides from the car, therefore you have actually 4 shock angle jobs to select sort.
The trunk hands enable to put in the shocks in addition into the rear for the vehicle
Suspension arms pivot balls
as opposed to internal pivot pins the SDX4 utilizes small pivotballs which thread inside the supply. The suspension system brackets are machined to modify the pivotballs and create a reduced friction, no binding suspension system system. By turning the pivotballs in or out you are going to set the optimal play concerning leading component and back bracket.
Suspension brackets
Rough covered aluminum suspension system system system brackets fr fr and fr rr. Tiny but effective composite front side component bumper to protect the best end. The angled front incorporated kick up licenses smoother landings.
a large component rear suspension system bracket may be used standard with o-degree or unsightly as 3-degree anti-squat.
Bulkheads
The strong front side part diff example setup based on 2 durable 7075 T6 bulkheads is a really strong occasion to install the diff-housings, front shock tower and chassis too. Its additionally features the holders the ballraced anti-rollbarmounts.
Anti-roll club
the key side and rear hands and bulkheads make it easy for mounting the ball-raced anti-roll pubs. The cable sort anti-roll pubs are lasered for easy indentification. The cable connect to the hands along with the confirmed friction free supersmooth pivotball system. Its super easy to get involved with and impact the anti-roll bars as required.
Motor mount
The motor is installed firmly towards thick 3mm cnc machined 7075 T6 alu engine meal. The motor is set up towards the sliderplate, that will effortlessly be then effectively slotted constantly set up.
Center drive holders
The slipper clutch unit is hold set up by the motormount bracket and a H shaped lightened 7075 T6 aluminium owner topped by a carbon connector dish which also holds the cable guiders in place.
The slipper can be changed by a geardiff towards center. Its supereasy to obtain using the slipper or central geardiff.
Uprights
The lightened 7075 T6 aluminium uprights are same remaining and right and in addition 3 camberlink functions.
Wheelhex
Leading and rear wheel hex are 12mm industry standard size. The hexes are clamp sort and anodised to endure. Flanged wheelnuts are included to keep the wheels create.
Body mounts
The strong composite human body mounts is found in example used. As alternate velcro may be placed into the interior in regards to the framework stiffeners/side pubs.
Body
high-quality clear polycarbonate is needed for the Spyder SRX4 buggybody . The well shaped human anatomy has flat sides and roof for extra downforce and great managing. It in fact really renders room enough for electronic devices and air conditioning discovers as required. Your body closely follows the framework kind, therefore less debris can enter the automobile. The body comes with a white precut masking sheet.
straight back wing and wing holder
The strong clear polycarbonate wing is mounted towards the nylon back wing owner.
Rims
Durable Serpent created wheel are within white color for front and backside (tires and inserts are not included). Right back tires are just like SRX2 and SRX4, the key men and women have actually in fact another offset and are also amazing. Compliant toward latest IFMAR directions.
