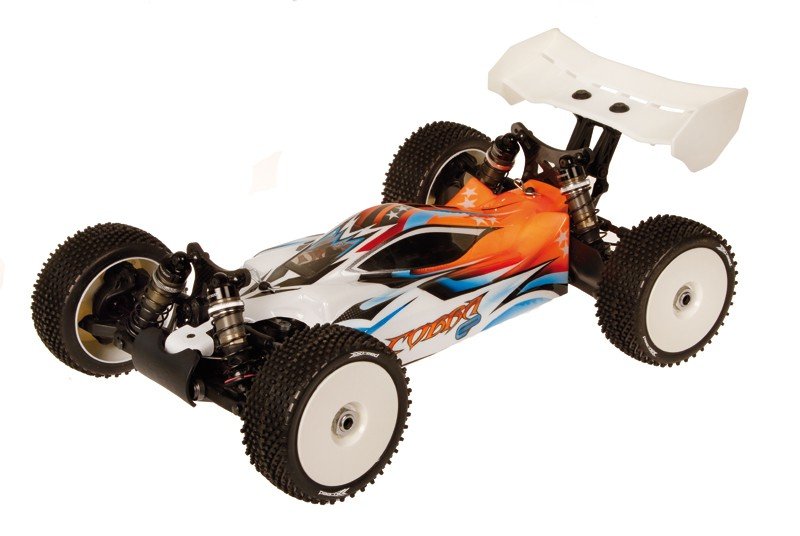

Serpent 1/8 scale buggy in electric powered variation. Serpent Cobra Buggy E. The Cobra 811e is founded on comparable platform due to the fact the gaspowered buggy. State related to art design with this primary area, with higher level built-in standing servo, receiver, speedo bracket, innovative motor-bracket and lay-down Lipo-pack setup with practical lid-system. Acutely slim and low design, optimised for overall fat security. Brand new low body-design and paid right back wing / wingmount.
Specifications:
- Name: Serpent Cobra-Be / 811-Be
- Course: 1/8 scale 4wd offorad, electric
- Type: kit-version, high end competition
- Differential: front component, center and backside
- Shocks: 16mm bigbore
- Included: kit, body, wing, full color manual, decals, set-up sheet
- Perhaps not included: tyres, wheels, radio gear, elecronics
Features:
Gearing / diffs
Leading and back gear-diffs are exactly the same creating using a 13T - 44T setup, which from our test bring top security and accelleration.The primary diff makes use of the 46T main gear. The newest improved V3 coupler system function a rubber boot and employs 2 bigger sealed bearings 13x19x4 and 8x19x6 for optimum security and durability.
Mud guards
In moist or wet dust circumstances these mud guards lessen and dust keeping a big component drive shafts and shocks.
Composite back uprights.
Durable composite rear uprights, fitted with superstrong plastic sealed bearings 8x16x5 external and 15x21x4 interior.
Larger 3.5 mm outside back hinge pins
Better effect opposition in crashes. Provides silky smooth suspension system system procedure and longer pin life.
Captured universal bones
Guarantees you will definitely complete a competition without loosing a pin or set screw. All elements, axles and drive train elements have in fact capture pins
Hinge pin suspension balls
This relieves pressure on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to seek out any angle without binding.
Captured and bolted hinge pins
All hinge pins are either captured or bolted put up. This insures your opportunities to finish an hour very long main event, while fighting for the lead.
Lightweight 3.5mm drive shafts
Precision machined spring-steel drive-shafts.
Flanged and serrated wheel peanuts
Guarantees you may not loose a wheel nut in a competition
Composite straight back wing mount
the lower type composite straight back wing mount, licenses to alter the angle the backside wing.
right back wing
Lower wing has two levels of angle. Helps improve down force and right line capability.
Super minimal profile human anatomy
exemplary appearance including keeps the profile low as well as front to back.
Oils and oil included
The S811 includes quality silicone oils for the difs and shocks and a container of grease.
Engine mount
The motor is positioned inside the many optimal invest the vehicle, maintaining motor-forces and transmission parts / positioning in your head. Just one-screw is important to secure the BL motor, inside well produced durable machined aluminium motormount. Area for extra motor-cooling available as required. The area the motor allows a maximum motor-length of 70mm, which covers hottest engines.
Battery-cases / side-guards
the main element eyecatchers will be the extremely low laydown longtudinal put battery-packs at each portion of vehicle, being some the side-guards, firmly fastened with a flip-lid, for effortless and fast battery pack changes. The excess weight low in the automobile and into the right spot, well-balanced. The Lipo holders conform to ROAR legal packages / proportions.
Lightweight Differentials and center spur.
Actually compact and light gear-diffs. By reducing the rotating mass, you'll be able to further enhance the amount of from component acceleration.
Carbon dietary fiber shock towers
4.5 mm dense Carbon shock towers improve appear and feel, nevertheless provide lighter fat.
Suspension brackets aluminium fr and rr
CNC machined suspension system system brackets front and rear. Quite strong and durable, yet lightweight design, maintaining the pivot-inserts well captured. Anodised and laser-engraved.
Symmetrical internal pivots
Front and rear pivots may be found in the very same airplane. This helps keep carefully the care more fundamental under cornering.
Zero scrub radiuses on steering knuckle
this particular function assists in reducing the jacking impact created by your steering knuckle offset. It gives a far more direct feel while keeping the cars chassis more degree while switching. Steering obstructs are fitted with superstrong artificial sealed bearings 8x16x5 outside and 15x21x4 internal.
Shock mounting Geometry on a supply.
Helps whenever locating the surprise regarding the lever supply to re adjust the shock size and angle without changing other unneeded things.
Front Steering knuckle installation
Leading roll center can be changed quickly by going the steering knuckle shims for his or her appropriate places.
Adjustable wheel base
5 mm of wheel base modification to the straight back from 322.5 to 327.5 mm.
Composite framework braces
Allows the framework to flex which assists enhance bump control. Front part and straight back.
Front bumper
Assists in reducing the garden dart impact on nose down jump landings. Furthermore actually really helps to avoid scrubbing down rate on moguls, and whoop design bumps
Chassis kick-up
many angle in its program, this may offer more approval for attacking as well as the most destroyed jump faces. It will guarantee you are able to guide the correct path up the facial skin without scrubbing straight down any valuable cost.
Eccentrics on suspension system system system mounts
there was an array of various eccentrics you can make use of to change your kick up inside front part connected with automobile as well as the anti squat in back.
Long steering tie rods
On the basis of the bell crank design the pole size is optimized become since near on very same length as possible in bringing down bump steer.
Big bore shocks 16mm
You can expect to enjoy all benefits of this compacted bigbore design with big o rings and superb bleeders. The greater amount of high priced o bands provide less overall anxiety and an improved seal without the majority of the dragging into the surprise shaft.
Laser angraved black colored tops.
Threaded shock figures
this may be for reducing elements inside pit bag. You can forget videos to loose. It can help adjust in much finer increments.
Oversized 4mm shock shafts
Reducing injury to shock shafts from hard jump landings or results.
Shock shoes with bump end
Shock shoes had been built to increase life, seal and make use of synthetic as a pillow to stop injury to suspension system elements.
Shock springtime buckets with debris drain and key locator The springtime buckets on root of the shock have actually really empty holes to acquire dust, water and debris through the usable surprise area. The true key locator helps align and secure the springtime bucket into position so that it stays put during procedure.
Captured ball cups
All camber links, steering links and steering servo links were caught. This assists avoid any ball cups from popping down.
Anti-roll pubs
Front and back anti-roll bars made of springtime metal cable and size indicated with engraving.Anti-roll bars are ballraced for effectiveness and smooth procedure. A variery of optional people available.
Chassis
Improves overall ground approval on sides for minimal framework dragging. This might be a marked enhancement for leaping and cornering over uneven ground. With less mass out wide the automobile will pitch less inside component, but additionally stay straighter in fast kept to right cornering.
Machined framework 3mm
Lightweight framework assists decrease fat and enhance basic automobile performance. Countersunk holes. Anodised in titanium color and laser etched Cobra logo.
All suspension system system mounts are keyed into spot
it can help to relieve the mount of any component forces from tumbling in a major accident. It just simply take the force from screws and transmission situation and sets that force regarding framework.
Pillow Ball sway club joints
this is often an immediate and easy solution to adjust the left and right tweak of the sway club.
Roll center modification
Leading roll center are changed quickly by going the steering knuckle shims because of their appropriate areas.
Ackerman dinner
utilising the design concerning the steering bell cranks whenever changing the Ackerman you will not want to improve your steering tie rods. You merely will simply should adjust your end points by yourself radio.Other optional Ackerman meals available.
Angled Bell cranks
The bell cranks are angled to lessen the angle of distinction relating to the total caster and steering airplane. Therefore you'll have less bump steer and a truer steering Ackerman through the entire number of suspension system system
Captured Servo Saver assembly
Reduces undesired debris from destroy servo saver faces. That could prevents any type of very early servo damage.
