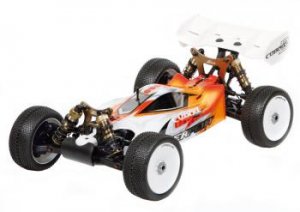

Serpent SER600006NT Cobra Buggy Be-RTR 1/8 EP  [SER600006NT]

Item Description

• Serpent Cobra 811 become Buggy RTR EP 1/8 4wd

  principal features
  - competition ready upper end electric ⅛ buggy
  - expert pre-assembled and pre-set
  - 4wd with cardanshafts, 3 compact ,durable geardiffs, super-easy machined alumiunium motormount, superlow longtudinal batteryboxes, compact speedo-servo mount, unique angled steeringsystem, 16mm bigbore shocks, ballraced anti-roll pubs FR and RR, 7075 T6 aluminum shocktower FR and RR, durable suspension system system system and transmission elements, captured supension pins, the works !!
  - Dragon-RC 120A waterproof speedcontroller
  - Dragon-RC powerfull 1650kv brushless sensorless motor
  - Dragon-RC 10.5kg strong servo with steel gears
  - Dragon-RC higher hold premounted racetyres and tires
  - prepainted and precut ultra low Cobra bodyshell and big nylon right back aero-wing
  - color user manual and decalset included

  Introduction

  Serpent now supplies the Cobra E-Buggy additionally in a willing to Race, to make this superb vehicle favored by a wider clientele, therefore additionally Hobby racers can now link the action. Serpent already supplies the Cobra become Sport as fundamental level kit, but this RTR variation includes it all.

  Topquality elements stuffed in a Ready-to-race package, the best start a Hobby-driver make.

  high-end race framework with quality elements, Waterproof electronic speedcontroller with smal impact, which fits the E-buggy owner like a glove along with a good 1650KV brushless motor with torque.

  Features

  Speed-controller
  The electronic speedcontroller is an entirely Waterproof 120A product from DragonRC with somewhat impact which fits the Cobra like a glove. The most up-to-date contemporary design is incredibly small and attractive searching. Topquality soft silicone covered cables.

  Brushless engine
  The DragonRC brusless sensorless engine is a strong 1650kv product which gives plenty of torque and amazing topspeed. , and it is anodised in exact same bronze color whilst the other aluminum regions of the car.

  Servo
  Dragon-RC 10.5kg strong servo with metal gears.

  Chassisplate
  Chassisplate in 3mm 7075 T6 aluminium. Kick-up angle on front side for stabile landings. Countersunk holes. Slots to locate the leading and back suspension system system system mounts exactly. Angled sides to improve tightness.

  Bumper
  Aligned with framework kikc-up for accurate landings including protect front suspension system owner and anti-roll club.

  Chassis stiffners
  Composite stiffner front side and back, to provide additional tightness, however enable some flex as required.

  Central radio / servo mount
  Composite lightweight radiobox that provides good space the steering servo and receiver.

  Battery-cases / side-guards
  the principal eyecatchers could be the extremely low laydown longtudinal put battery-packs at each and every and each and every component linked to automobile, being part of the side-guards, securely fastened with a fliptop-lid, for effortless and quick battery alterations. The extra fat low in the car in addition to in the appropriate place, sensible. The Lipo holders stick to ROAR legal packages / measurements.

  Motormount:
  The motor is placed in a number of optimal invest automobile, keeping motor-forces and transmission elements / placement in your mind. Simply one-screw is very important to secure the BL motor, in well produced durable machined aluminium motormount. Region for additional motor-cooling available as needed.
  the location the motor enables a maximum motor-length of 70mm, which covers many preferred engines ( with the exception of the truggy / monstertruck machines).

  Steeringblocks construction
  Composite steeringblocks and 10 dgr C-hubs for accurate steering. Spring steel wheel-axles with big size bearings and larger internal with accuracy threaded aluminum wheel-hubs with offset . Flanged and serrated wheel peanuts to ensure you'll not loose a wheel nut in a race.

  Front suspension system
  Durable oversized reduced suspension arms in strong composite nylon. Regarding reduced component the unique shaped downstops screws are set up. The reduced shock-mounting pins are secured with a small grubscrew through base.

  front side anti-roll club
  The ballraced front part anti-roll club system, consist of a spring metal fold cable, that will be directed through diff-cases and runs in ballraced metal adaptors. The cable is from lower suspension system system supply, with a captured adjustable threaded pivotball, for really exact and low friction procedure and easy tuning.

  Shocktower and bodymounts front
  4.0mm thick aluminium anodised shocktower with 2 top placement holes the shocks and and 3 holes for roll-center jobs. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts.

  Angled steering system / servo saver
  The bell cranks are angled to minimize the angle of difference between your total caster and steering airplane. Therefore you need to have less bump steer and a truer steering Ackerman through the entire selection of suspension system

  Ackermann dish
  combined with design of steering bell cranks when changing the Ackermann you won't should adjust your steering tie rods. You merely will still only have to adjust your end points on your own radio..

  right back suspension system hands
  Durable longer oversized paid down suspension system system fingers in strong composite nylon. To the paid off component the original downstops screws are mounted. The reduced shock-mounting pins are guaranteed with a little grubscrew through base.

  Mud-guards
  Optional is the composite mud guards, that may install towards reduced suspension system hands, and certainly will keep dust from your own anti-roll bars transmission and tires.

  right back uprights construction
  Composite uprights with 3 top roll-center jobs. Strong metal track-rods with L/R threading and strong balljoints to pre-set camber. Extreme steel wheel-axles with big size bearings and bigger interior people with precision threaded aluminum wheel-hubs with offset. Flanged and serrated wheel peanuts to make certain that you will maybe not free a wheel nut in a race.

  straight back anti-roll club
  The ballraced front side anti-roll club system, have a spring metal fold wire, that will be often led through back wingmount and runs in ballraced steel adaptors. The cable is because of this reduced suspension system supply, with a captured adjustable threaded pivotball, for extremely accurate and low friction procedure.

  Shocktower straight back
  4.5mm dense aluminium shocktower, incorporated into on trunk component for extra stiffness, with 2 top placement holes the shocks and 3 holes for roll-center functions.

  Wingmount and bodymounts straight back
  Composite back low aero wing, with strong nylon mounts, with angle modification. Main back bodymount.

  Captured pivot pins and balls and bolted hinge pins
  All spring-steel hinge pins are either captured or bolted in position making in spring-steel quality. This relieves stress on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to make to virtually any angle without binding.

  Shockabsorbers RCM big-bore 16mm
  Anodised aluminium shockbodies with durable 4mm shock-rods. Pre-load adjuster videos for trip height environment. Shocks utilize big diameter membrames and big diameter o-rings and bushings create a supersmooth and leak-proof package. Big diameter pistons take place constantly set up by a nut in polished shock-rods tops. Begin kind spring retainer allowing dust out simple.

  RCM shock springs
  Colorcoded modern surprise springs are provided the first standard set-up and all sorts of forms of springs are grinded flat top and base, and examined independently for anxiety and size and they are additionally matched.

  Compact geardifferentials
  acutely compact gear differentials with really smooth metal sintered gears, and steel shaft. Perfect sealing situation with original gasket and o-rings. Severely light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector operating in 2 oversized bearings The Cobra-E utilizes a 13T / 44T combination gearing. 46T core diff gear. This drive ratio provides amazing acceleration along side low car fat.

  Front and rear drive
  the key has captured driveshafts utilizing a CVD system. A large part has durable black colored metal driveshafts with hard metal pins.

  Hard black metal transmission components
  leading and right back strong hard black colored colored steel cardan shafts link the differentials .

  Body
  Serpent superlow Cobra E buggy human body, completely pre-painted in fact appealing design and pre-cut too. Stomach muscles low body has exceptional management, additionally supern in jumps.

  Back wing:
  minimal variation strong rear white aero right back wing is roofed for great downforce and right line safety.

  Tyres / tires
  The Cobra comes with premounted DragonRC buggy rushing tyres. The tyres are glued on durable but versatile DragonRC race-wheels with moulded cell-foam inserts. A super-package for exceptional grip into the most typical surfaces.

  natural oils and grease
  Top-quality silicone shock-oil, silicone diff oil and some oil lets you meet with the typical set-up.

  handbook and set-up
  color person manual with fairly simple to see actions, exploded views for simple spares purchasing. A seperate manual the speed controller is included.

  Decals
  monochrome promo body-decals ; Serpent generic and Cobra people.

  Packing
  The RTR kit is loaded in a colorfull big strong packaging package with safety the automobile.

  provider which help
  The Serpent provider, dealer or agent will be the supply for more information, as well as the Serpent website and so the user area plus the Youtube channel provides some information.


  had a need to complete the car:
  - Transmitter and receiver
  - 2 x Lipo hard-packs 3800 mA or maybe more
  - (recharging you equipment/ powersupply)
