The Cobra Race Buggy is a new revolutionary design based on 15 many years of off road competition experience.
It is a variety of unique and present ideas to provide a considerably better fundamental package. The total amount left to right and front to right back in addition has been enhanced over present designs. Subsequently provide a far more substantial tuning screen without loss in drivability. With many unique competitive buggies being positioned on a meal plan, you are going to never be disappointed, as the S811 may be at 3300 grms, entirely filled with most of the antique products. The philosophy ended up being effortless, how may you produce a car or truck, which could require the conventional motorist and transform him into outstanding motorist. The conclusion solution was to offer him with an item that'll are one harmonious item together, everything running together.
Needs:

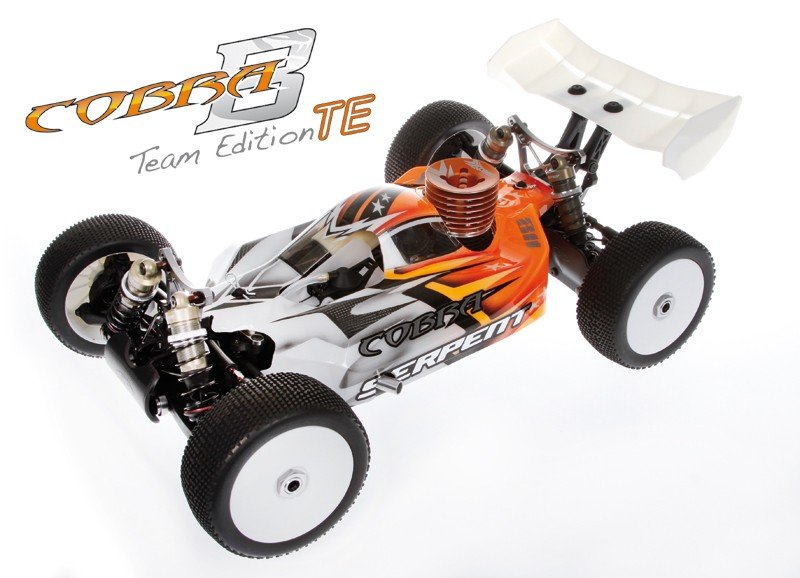

- Name: Serpent 811 Cobra Buggy Team Edition
- Class: 1/8 scale 4wd buggy
- Type: kit-version, top quality competition
- Wheelbase: 330mm
- Width: 305mm
- bodyweight: 3.300 grms (battle prepared, depends on radio-gear and motor)
- Clutch: 4-shoe centrifugal, carbon footwear
- Differential: lightweight, small geardiffs, front, central and rear
- Brake: piston kind with glassfibre disks
- Shocks: 16mm big bore
- Fueltank: 125ccm, with integral bronze filter
- Gear-ratio: 4:3:1
- Included: Kit, human body, wing, silicone oil, color manual, decalsheet.
- Not included: Radio-gear, tyres-wheels, engine, pipeline.
Features:
- professional sort 5.5mm alu shocktowers front and back
- bigger bearings in steeringblocks and uprights
- Brand new transmission making use of bigger bearings and brand-new couplers for extra durability
- enhanced stiffer framework
- Gard coated shockcaps front and back
- Lower back wing
Suspension brackets aluminium fr and rr
CNC products suspension system brackets front and right back. Quite strong and durable, yet lightweight design, maintaining the pivot-inserts well captured. Anodised and laser-engraved.
Symmetrical internal pivots
Front and rear pivots can be found in comparable airplane. This assists keep consitently the care more fundamental under cornering.
Steering
Inboard Bell crank Steering arm
this really is to provide a tighter fit regarding human body including keep consitently the lever and linkage inside the automobile. It helps in preventing injury to the steering system
Zero scrub radiuses on steering knuckle
this feature assists in reducing the jacking effect created by your steering knuckle offset. It provides an even more direct feel while maintaining the automobiles chassis more degree while switching.
Ackerman plates
Because of the design concerning the steering bell cranks whenever changing the Ackerman you may not desire to adjust your steering tie rods. You merely will still only have to adjust your end points on your radio..
Angled Bell cranks
The bell cranks are angled to reduce the angle of distinction involving the full total caster and steering airplane. Therefore you ought to have less bump steer and a truer steering Ackerman through the entire selection of suspension
Steering-blocks / caster obstructs / steering knuckle put up
Durable moulded composite steeringblocks with standard 10 degree caster obstructs.
Front Steering knuckle installation
leading roll center could be changed quickly by going the steering knuckle shims about their appropriate places.
Adjustable wheel base
5 mm of wheel base modification in the backside from 322.5 to 327.5 mm.
Composite framework braces
Allows the framework to flex which assists enhance bump control. Front part and right back.
Large radius front Bumper
Assists in easing the lawn dart affect nose down jump landings. In addition helps you to prevent scrubbing off rate on moguls, and whoop design bumps
Chassis kick up angle
many angle in its course, this may provide more approval for attacking also the most destroyed jump faces. It will guarantee you'll guide your path up the eye without scrubbing straight down any valuable price.
Chassis, slim design
Improves basic ground approval on edges for minimal framework dragging. This is an improvement for leaping and cornering over uneven ground. With less mass out wide the automobile will pitch less in corner, but additionally remain straighter in fast left to right cornering.
Machined framework 3mm
Lightweight framework assists minmise fat and enhance overall automobile performance. Countersunk holes. Anodised in titanium color and laser engraved Cobra logo design.
All suspension system system system mounts are keyed into destination
This helps to ease the mount of any component forces from tumbling in a collision. It you'll want to simply take the stress from screws and transmission example and locations where force inside framework.
Eccentrics on suspension system system mounts
there was an array of various eccentrics you should utilize to change your kick up in to the front component the vehicle along with the anti squat in rear.
Long steering tie rods
on the basis of the bell crank design the rod length is optimized become as near in direction of exact same size as possible in bringing down bump steer.
Captured Servo Saver installation
Reduces unwelcome debris from destroy servo saver faces. That will prevents almost any untimely servo damage.
One piece radio tray.
The construction is unique as is provides on rigid component that can house the majority of the radio gear. The treatment is unquestionably as easy with 6 screws total.
Crimping Antenna mount with rubber water evidence cap
With water ever being a concern in outside nitro race. This Crimping design not only will hold your antenna in position, but has a rubber limit to cease water from sneaking directly into your radio package.
Light Pro-type alu surprise towers
4.5 mm thick light alu surprise towers enhance looks, but offer lighter fat. Both front and back.
Big bore shocks 16mm
although it's changed into the standard you will definitely enjoy all benefits with this compacted bigbore design with big o bands and superb bleeders. The bigger o bands provide less basic anxiety and a much better seal without a lot of the dragging regarding shock shaft.
Laser angraved difficult anodised tops.
Threaded surprise figures
This really is for reducing elements within pit instance. Forget about videos to free. It can benefit adjust in much finer increments.
Oversized 4mm surprise shafts
Reducing problems for shock shafts from hard jump landings or results.
Surprise footwear with bump end
Shock shoes were created to increase life, seal and use plastic as a pillow to stop dilemmas for suspension elements.
Shock springtime buckets with debris drain and key locator The springtime buckets within base of the shock have in fact strain holes getting dirt, water and debris out from the usable surprise area. One of the secrets locator assists align and secure the springtime bucket into place such that it continues to be put during procedure.
Captured ball cups
All camber links, steering links and steering servo links happen trapped. It will help prevent any ball cups from popping down.
Anti-roll pubs
Front and back anti-roll bars constructed from springtime metal cable and size suggested with engraving.Anti-roll pubs are ballraced for effectiveness and smooth procedure. A variery of optional ones available, additionally as sets.
Pillow Ball sway club bones
this really is actually an easy and easy replacement adjust the left and right tweak connected with sway club.
Roll center modification
Leading roll center are changed quickly by going the steering knuckle shims with their appropriate places.
Fueltank
Splash basin on tank top
it can help reduce gasoline all around the framework in case there is a messy pit stop. The basin collects the splashed fuel and guides it correctly from the root of the framework
Personal centering vehicle's gas tank seal
The gas tank seal is angled to self guide its solutions to the bore of tank. Too provides a seal concerning the chamfered and flat edges related to seal, providing consistent engine performance in one pit stop to another location.
Built-in tank splash guard
Helps in avoiding fuel from splashing in your air conditioner filter in case of an extremely excited pit man.
Tank with swiveling nipple and drifting clunk.
Using the swiveling nipple you can adjust the angle in which you need you fuel line traveling. Furthermore the drifting clunk assists when you get unsightly. The clunk by gravity will fall back in the gas, using the flexibleness with this silicone fuel tubing.
Oversized Tank with adjustable quantity.
utilizing the insertion of a simple screw and volume reducer you need to have ROAR, IFMAR and just about another businesses appropriate tank quantity
Low profile air conditioner filter
Centralized ac filter design to attenuate cab width and height.Flexible rubber boot in conjunction with strong nylon situation to guide the foam elements. Exemplary dense foam airfilter elements to keep your machines clean inside.
Mud guards
In moist or damp dust situations these mud guards lessen and dirt after a large part drive shafts and shocks.
back upright
Durable composite rear uprights with bigger size bearings. Dustcovers can keep dust out while increasing lifespan.
Captured and bolted hinge pins
All hinge pins are either captured or bolted in place. This insures your possibilities to complete an hour or so extended primary event, while fighting for the lead.
Larger 3.5 mm external straight back hinge pins
Better effect opposition in crashes. Provides silky smooth suspension system system operation and longer pin life.
Hinge pin suspension system balls
This relieves strain on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to seek out virtually any angle without binding.
Lightweight 3.5mm drive shafts - Captured universal joints
whenever overall fat is a problem, maybe you have thought to reduce rotating mass. Equal lenght front part and right back. Precision machined spring-steel.
Captured universal bones
the style below have been effortless. Guarantees you will definitely complete a race without loosing a pin or set screw. All components, axles and drive train elements have actually capture pins
Drive ratio 4.3:1
This drive ratio provides amazing acceleration coupled with low car fat. Their a sure triumph, to aid enhance gas mileage
Lightweight Differentials and center spur.
By reducing the rotating mass, you are going to further raise the level of out from the component acceleration. Subsequently your motor breathes simple and utilizes less gasoline.
Throttle and brake lever ball cups
assists offer constant pulling regarding braking system lever or carburetor should you not require the linkage entirely aligned.
Piston Braking system
Provides more stopping power than you can have ever truly imagined before with a lot less servo energy. Is wholly adjustable with 3 forms of pistons
Solid
O musical organization sort
springtime kind
subsequently you are able to adjust your bias or braking feel towards style much more means than previously.
Fiber Glass disk brake system
Fiber Glass braking system disks with oversized front side.
Brake dish springs
will keep the laundry distribute available to guarantee perhaps not un-wanted dragging concerning the stopping system discs.
Racing clutch 4 - footwear
allows you to mix and match footwear materials evenly in pairs. In addition provides more area contact to guarantee the engagement.4 carbon shaped shoes are standard ( alu individuals optional).
Coil exhaust cable and alu mount
Helps help with the leading to back motion from the pipeline whenever framework flex occurs. Helps in avoiding injury to your exhaust gaskets.
Super Minimal profile Body
improves look and keeps the profile low along side front to right back.
Tall down force wing and Adjustable straight back wing mount
spine wing in strong versatile nylon. The composite straight back wing mount, allows to boost the angle of straight back wing.
Flanged and serrated wheel peanuts
Guarantees you will perhaps not free a wheel nut in a competition
Spur Gear Guard
aids in preventing the spur gear from slinging debris throughout the inside the vehicle and especially in toward ac filter. Functions for rainfall and water puddles.
