This brand-new development for Cobra buggy is recognized after another complete year of rushing across the globe, hearing feedback from many (team)drivers and specialized evaluation on many areas. According to exact same motorists a responsive tail, along with a great deal more steering would bring the Cobra on highest level.
Specs:

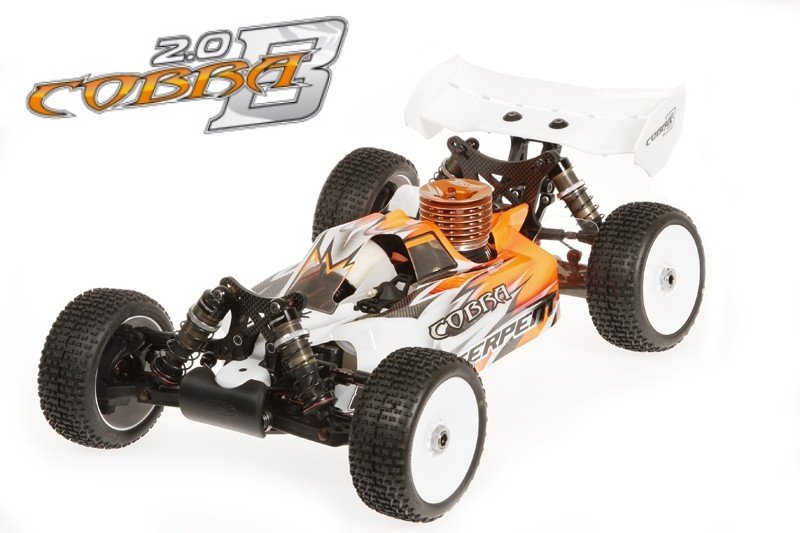

- Name: Serpent 811 Cobra Buggy 2.0
- program: 1/8 scale 4wd buggy
- Type: kit-version, high end competition
- Wheelbase: 330mm
- Width: 305mm
- Weight: 3.300 grms ( competition ready, differs based on radio-gear and engine)
- Clutch: 4-shoe centrifugal, carbon shoes
- Differential: lightweight, small geardiffs , front, central and back
- Brake: piston kind with glassfibre disks
- Shocks: 16mm big bore
- Fueltank: 125ccm, with built-in bronze filter
- Gear-ratio: 4:3:1
- Included: Kit, human body, wing, silicone oil, color manual, decalsheet.
- Maybe maybe not included: Radio-gear, tyres-wheels, engine, pipeline.
Features:
- Brand new wider buttocks with amazing geometry for lots more straight back traction and a less strenuous handling car with wider sweetspot
- Tear shockabsorbers relocated towards the trunk linked to the shocktower
- Longer straight back shocks, with much longer housing and shockrods to obtain more travel
- Back wing with built-in holders the ballraced back anti-roll club
- Longer rear paid off fingers, completely new higher carbon shocktower, considerably longer back shock, fresh upright
- Lexan mud-guards to set up on back arms
- Nylon mud-scrapers mount regarding straight back uprights
- enhanced differential gears
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches to produce flex make lighter. Kick-up angle on front for stabile landings. Countersunk holes. Slots to find the greatest and back suspension system system mounts correctly. Angled sides to improve tightness. Laser engraved Cobra logo design.
Bumper
Aligned with framework kikc-up for accurate landings and to protect front suspension holde rand anti-roll club.
Chassis stiffners
Composite stiffner front part and right back, to present additional tightness, but nevertheless allow some flex as required.
Central radio / servo mount
Composite radiobox that provides good room the steering and throttle-servo, the receiver and rx battery power. The complete construction including linkages could be eliminated effectively and fast at the same time, whenever cleansing the automobile, or doing maintenance. One extra post is added near to the servo for security.
Servo hands and linkages
The servo hands have actually in fact a splined insert to have the right fit per brand name. The linkages operate actually neat and tight and they're an easy task to get at to alter settings.
Suspension brackets
Beautifully machined 7065 T6 suspension system system brackets in anodized, laser angraved. Precision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks installation
Composite steeringblocks coupled with 10 dgr C-hubs for accurate steering. Spring steel wheel-axles with big size bearings and larger inside with precision threaded aluminum wheel-hubs with offset . Flanged and serrated wheel peanuts to make certain that you will definitely maybe not free a wheel nut in a race.
Front suspension system system
Durable oversized paid down suspension system system system arms in strong composite nylon. About the reduced side the unique shaped downstops screws are create. The reduced shock-mounting pins are assured with a small grubscrew from base.
Front side anti-roll bar
The ballraced front side anti-roll club system, consist of a spring steel fold cable, which will be guided through diff-cases and runs in ballraced metal adaptors. The cable is from the reduced suspension supply, with a captured adjustable threaded pivotball, for actually accurate and low friction procedure and easy tuning.
Shocktower and bodymounts front
4.5mm thick carbon shocktower with 5 top positioning holes the shocks and and 6 holes for roll-center jobs. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to lessen the angle of distinction between the total caster and steering airplane. Therefore you must have less bump steer and a truer steering Ackerman through the whole selection of suspension
Ackerman dishes
Aided by the design of the steering bell cranks when changing the Ackerman you will probably not want to manage your steering tie rods. You simply is only going to have to adjust your end points within radio.
right back suspension system system arms
Durable considerably longer oversized paid down suspension system arms in strong composite nylon. In paid down part the special downstops screws are installed. The paid off shock-mounting pins are assured with somewhat grubscrew from base. Mud-guards
Superlight polycarbonate mud guards mount towards the newest paid down suspension system hands, and will keep dust from your anti-roll bars transmission and wheels.
backside uprights installation
Composite uprights with 3 upper roll-center functions. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Spring steel wheel-axles with big size bearings and larger internal people who have accuracy threaded aluminum wheel-hubs with offset . Rubber dustcovers inside back to protect the cvd system and keep consitently the lubrication in. Flanged and serrated wheel peanuts to make sure that you will not free a wheel nut in a race.
Mud scrapers
Composite mud scrapers which mount towards the latest uprights, and can keep consitently the inside of your wheel cleaner in case of dirty conditons.
Rear anti-roll club
The ballraced front side anti-roll club system, contain a spring steel fold cable, which will be directed through diff-cases and operates in ballraced metal adaptors. The cable is through the lower suspension system system system supply, with a captured adjustable threaded pivotball, for very accurate and low friction operation.
Shocktower backside
4.5mm dense carbon shocktower, incorporated to the trunk component for additional stiffness, with 5 top placement holes the shocks and 6 holes for roll-center jobs.
Wingmount and bodymounts right back
Composite straight back wing, with strong nylon adjustable backside bodymounts on wide body-support bridge situated far adequate toward rear, to steer the systems in simplest method.
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted constantly in place making in spring-steel quality. This insures your opportunities so that you can complete one hour about lengthy most critical occasion, while fighting the lead. This relieves stress on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to turn to virtually any angle without binding.
Shockabsorbers big-bore 16mm
Tricky Teflon coated threaded shockbodies with 4mm shock-rods. Tough anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks utilize big diameter membrames and big diameter o-rings and bushings to make a supersmooth and leak-proof package. Big diameter pistons occur constantly set up by a nut regarding polished shock-rods tops. Begin sort springtime retainer to allow dust out simple. The shock-shafts are protected by synthetic boots.
RCM surprise springs
Short kind colorcoded shock springs are offered the initial standard set-up Springs are grinded flat top and base, and examined separately for stress and size.
Compact geardifferentials
actually lightweight gear differentials with actually smooth steel sintered gears, and steel shaft. Perfect sealing instance with unique gasket and o-rings. Extremely light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 10T with connector operating in 2 oversized bearings . Drive ratio 4.3:1. This drive ratio will give you amazing acceleration along with low automobile fat. It's a sure triumph, to greatly help enhance gas mileage
front side and rear cvd-sets
Both front side and back captured driveshafts are now actually along with CVD system. Durable yet light springtime metal engraved driveshafts with hard metal pins.
Spring metal transmission components
the leading and straight back slim but strong springtime steel cardan shafts connect the differentials .
Throttle and brake lever ball cups
Helps provide constant pulling on braking system lever or carburetor if you choose not need the linkage perfectly aligned.
Piston Braking system
Provides more stopping power than you can have ever really imagined before with a good deal less servo energy. Is completely adjustable with 3 forms of pistons, solid, O musical organization type, springtime kind. Subsequently you'll adjust your bias or stopping feel towards flavor way more techniques than in the past.
Fiber Glass disk brakes
Fiber Glass braking system disks with oversized front disk.
Brake meal springs
can keep the laundry distribute willing to accept guarantee un-wanted dragging of the stopping system discs.
Rushing clutch 4 - shoe
allows you to mix and match footwear materials evenly in pairs. Additionally provides more surface contact to insure the engagement. 4 carbon shaped footwear are standard ( alu ones optional).
Coil exhaust cable and alu mount
Helps help with ultimately causing back yet again movement from the pipeline whenever framework flex happens. Aids in preventing harm to your exhaust gaskets.
Engine mount
Machined 7075 T6 aluminium engine mount, with part cooling-fins.
Fueltank 125cc
Splash basin on tank top, self centering Fuel tank seal, The vehicle's gas tank seal is angled to self guide its technique inside bore related to tank. Simultaneously provides a seal in to the chamfered and flat edges from seal, providing constant engine performance from pit end to a different. Incorporated tank splash guard which assists to avoid fuel from splashing on your air conditioning gear filter in the event of an overly excited pit man.
Fueline and stoppers
Kit included topqualiity soft silicone fuelline to have linked to tank, car and pipeline, and includes little composite stoppers to shut year fuelline whenever taking right out tank, engine and or pipeline.
Tank with swiveling nipple and drifting clunk.
Utilising the swiveling nipple it is possible to adjust the angle which you need you fuel line to see. At exactly the same time the drifting clunk assists if you have inverted. The clunk by gravity will fall back the gas, utilising the flexibility from the silicone gasoline tubing.
Oversized Tank with adjustable quantity.
With all the insertion of a simple screw and amount reducer you'll have ROAR, IFMAR and just about almost every other organizations appropriate tank amount.
Low profile ac filter
Centralized air conditioning filter design to scale back cab width and height. Versatile synthetic boot coupled with strong nylon example to aid the foam elements. Excellent dense foam airfilter elements to keep your devices clean inside.
Body
Serpent cab ahead Avenger human anatomy, with movie and masking tape is roofed in kit.
Back wing
Minimal variation strong back white aero rear wing is roofed for great downforce and right line safety.
Oils and oil
The shock-oil, diff oil and several oil issues gather the traditional set-up.
