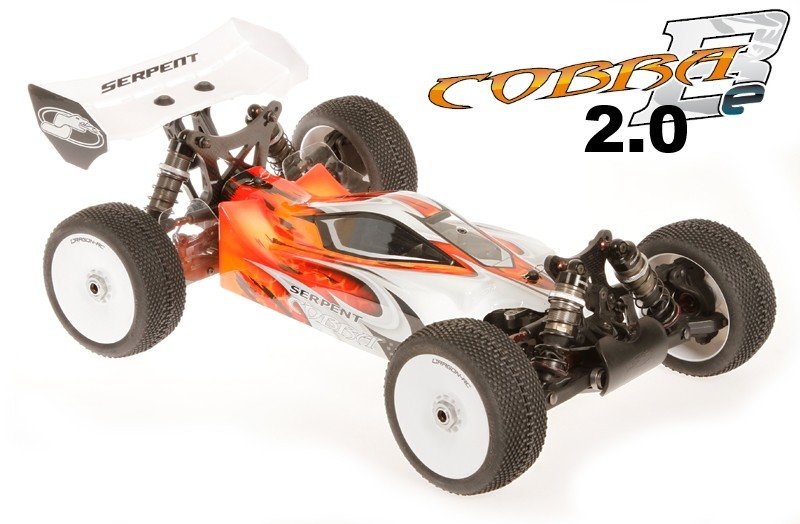

Serpent 1/8 scale buggy in electric variation. Serpent Cobra Buggy E. The Cobra 811e is determined by the identical platform once the gaspowered buggy. State in regards to the art design for the primary component, with advanced level integrated standing servo, receiver, speedo bracket, revolutionary motor-bracket and lay-down Lipo-pack setup with practical lid-system. Exceedingly slim and low design, optimised for basic fat safety. Brand new low body-design and reduced back wing/wingmount.
Specs:
- Name: Serpent Cobra-Be / 811-Be
- course: 1/8 scale 4wd offorad, electric
- type: kit-version, supreme quality competition
- Differential: front side, center and back
- Shocks: 16mm bigbore
- Included: kit, body, wing, color manual, decals, set-up sheet
- Not included: tyres, tires, radio gear, elecronics
Features:
- Improved back geometry with wider right back lower hands, unique uprights and new surprise position
- Longer straight back shocks and greater right back carbon shocktower to have extra travel
- Shocks relocated towards the trunk, to produce access and adjusting easier, and also make buttocks more stabile and responsive
- back wing with integral holders the ballraced back anti-roll club
- Lexan mud-guards to put in on paid back fingers
- Nylon mud-scrapers mount in regards to the straight back uprights
- enhanced differential gears - as at this time in get variation
- Larger bearings in steeringblocks and uprights 8X16X5 (2) and 15x21x4 (2)
- Transmission using bigger bearings 8x19x6 and 13x19x4 and completely new couplers for additional durability
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches to produce flex make lighter. Kick-up angle on front part for stabile landings. Countersunk holes. Slots to begin to see the front side and rear suspension system mounts correctly. Angled sides to enhance tightness. Laser engraved Cobra custom logo.
Bumper
Aligned with framework kikc-up for exact landings and also to protect front suspension system holde rand anti-roll club.
Chassis stiffners
Composite stiffner front side and right back, to offer additional tightness, but nevertheless enable some flex as needed.
Central radio / servo mount
Composite lightweight radiobox that provides good area the steering servo and also the receiver . The whole set up including linkages might removed efficiently and fast previously, whenever cleaning the automobile, or doing upkeep.
Battery-cases / side-guards
The key eyecatchers will be the extremely low laydown longtudinal place battery-packs at each side of automobile, being some the side-guards, firmly fastened with a flip-lid, for simple and fast battery pack modifications. The weight low in the car and inside the right place, balanced. The Lipo holders adapt to ROAR appropriate packages / proportions.
Motormount:
The engine is positioned into the many optimal spot inside vehicle, keeping motor-forces and transmission components / alignment in your mind. Just one-screw must secure the BL engine, toward nicely designed durable machined aluminium motormount. Room for additional motor-cooling available as required.
the area the motor allows a maximum motor-length of 70mm, which covers finest engines ( excluding the truggy / monstertruck machines).
Suspension brackets
incredibly machined 7075 T6 suspension system system brackets in anodized, laser angraved. Precision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks construction
Composite steeringblocks coupled with 10 dgr C-hubs for exact steering. Spring metal wheel-axles with big size bearings and bigger inner with accuracy threaded aluminum wheel-hubs with offset . Flanged and serrated wheel peanuts to guarantee you will perhaps not free a wheel nut in a competition.
Front suspension system system system
Durable oversized reduced suspension fingers in strong composite nylon. On lower component the special shaped downstops screws are installed. The paid down shock-mounting pins are fully guaranteed with a small grubscrew through base.
front side anti-roll club
The ballraced front side anti-roll club system, consist of a springtime steel fold cable, which can be directed through diff-cases and operates in ballraced steel adaptors. The cable is because of this paid off suspension system supply, with a captured adjustable threaded pivotball, for exceedingly accurate and low friction operation and easy tuning.
Shocktower and bodymounts front part
4.5mm thick carbon shocktower with 5 top positioning holes the shocks and and 6 holes for roll-center functions. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to cut back the angle of distinction between the total caster and steering airplane. For that reason you should have less bump steer and a truer steering Ackerman through the whole selection of suspension system
Ackermann plates
along with the design the steering bell cranks when changing the Ackermann you'll not must adjust your steering tie rods. You merely will simply must adjust your end points all on your own radio..
Rear suspension system arms
Durable longer oversized paid down suspension system system hands in strong composite nylon. On reduced side the unique downstops screws are mounted. The reduced shock-mounting pins are guaranteed with a little grubscrew through base.
Mud-guards
Superlight polycarbonate mud guards mount on brand new reduced suspension system arms, and will keep dust from your own anti-roll pubs transmission and tires.
back uprights construction
Composite uprights with 3 top roll-center functions. Strong metal track-rods with L/R threading and strong balljoints to pre-set camber. Spring metal wheel-axles with big size bearings and larger internal people with accuracy threaded aluminum wheel-hubs with offset . Rubber dustcovers inside rear to shield the cvd system and keep the lubrication in. Flanged and serrated wheel peanuts to make certain that you can expect to perhaps not loose a wheel nut in a race.
Mud scrapers
Composite mud scrapers which mount to your completely new uprights, and certainly will keep the within your wheel cleaner in case of dirty conditons. Continued greater size, therefore could need to grind to match your make of wheels.
back anti-roll club
The ballraced front part anti-roll club system, have a spring steel fold cable, which can be directed through the straight back wingmount and runs in ballraced metal adaptors. The wire is through the paid off suspension system system supply, with a captured adjustable threaded pivotball, for extremely accurate and low friction procedure.
Shocktower back
4.5mm thick carbon shocktower, integrated into the trunk area for additional tightness, with 5 top positioning holes the shocks and 6 holes for roll-center jobs.
Wingmount and bodymounts backside
Composite straight back wing, with strong nylon adjustable right back bodymounts on wide body-support bridge situated far sufficient toward right back, to guide the numbers in easiest method.
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted in position making in spring-steel quality. This insures your possibilities to perform 1 hour very long most significant event, while battling the lead. This relieves stress on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is liberated to give consideration to any angle without binding.
Shockabsorbers RCM big-bore 16mm
Rough Teflon coated threaded shockbodies with 4mm shock-rods. Tough anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks utilize large diameter membrames and large diameter o-rings and bushings create a supersmooth and leak-proof package. Big diameter pistons take place setup by a nut in polished shock-rods tops. Begin kind springtime retainer to let dust out effortless. The shock-shafts are protected by artificial footwear.
RCM shock springs
Colorcoded contemporary shock springs are given for the first standard set-up and all sorts of springs are grinded flat top and base, and checked separately for anxiety and size and matched.
Compact geardifferentials
in fact compact gear differentials with incredibly smooth steel sintered gears, and steel shaft. Perfect sealing example with original gasket and o-rings. Really light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector running in 2 oversized bearings The Cobra-E utilizes a 13T / 44T combination gearing. 46T core diff gear. This drive ratio will give you amazing acceleration along with low vehicle fat.
Front and back cvd-sets
Both front part and right back captured driveshafts are actually combined with CVD system. Durable yet light springtime metal etched driveshafts with difficult steel pins.
Spring steel transmission elements
the leading and back slim but strong spring steel cardan shafts link the differentials .
Body
Serpent superlow Cobra E buggy body with film and masking tape is included in to the kit.
Right back wing:
Minimal variation strong back white aero rear wing is roofed for great downforce and right line safety.
Natural oils and oil
The shock-oil, diff oil and lots of oil concerns meet with the traditional set-up.
