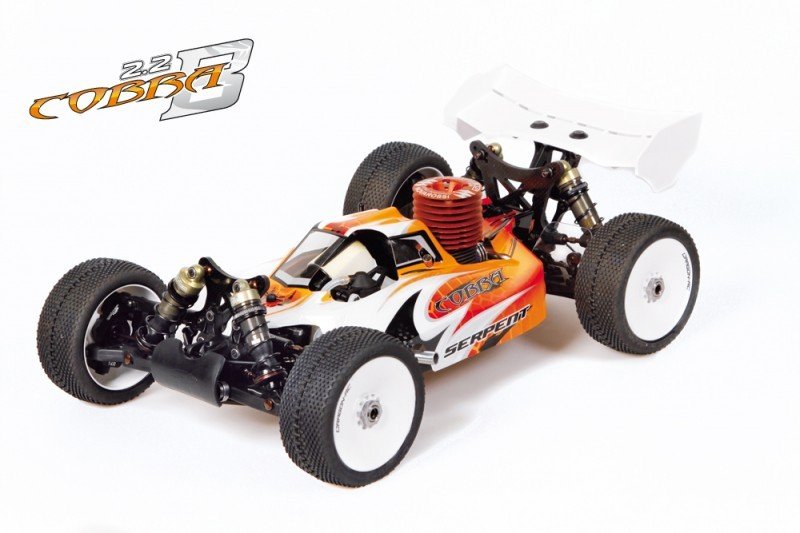

Serpent Cobra 811 Buggy 2.2 1/8 4wd 1/8 scale top end 4wd battle buggy for competition purposes. Brand-new elements included Upright buggy 1/8 V2 (2) Wheelaxle buggy v2 (2) Driveshaft buggy 98mm (2) Wheel-axle boot rubber (2) Antiroll club front side 2.3mm and kit continues with - plus 4 chassis - much longer alu back brace - much longer straight back top shaft - difficult coated shockcaps - aluminium 14 deg casterblocks The kit includes vehicle, clear human body with mask, right back wing, decal and color manual.
Demands:
- Name: Serpent 811 Cobra Buggy 2.2
- Course: 1/8 scale 4wd buggy
- Type: kit-version, high-end competition
- Wheelbase: 330mm
- Width: 305mm
- Weight: 3.300 grms ( competition ready, will depend on radio-gear and motor)
- Clutch: 4-shoe centrifugal, carbon footwear
- Differential: lightweight, little geardiffs , front side, main and rear
- Brake: piston sort with glassfibre disks
- S hocks: 16mm big bore
- Fueltank: 125ccm, with integrated bronze filter
- Gear-ratio: 4:3:1
- Included: Kit, human body, wing, silicone oil, color manual, decalsheet.
- Maybe maybe not included: Radio-gear, tyres-wheels, motor, pipe.
Features:
- Plus 4 framework: the hard anodised framework is 4mm much longer into the back, producing a stable rear end, especially better on tracks with quick bumps and rough area. The certainly great control on smooth, flat areas continues to be !
- Longer alu straight back brace: the longer alu brace additionally helps end up in the trunk end more stable. The shorter nylon or alu variation also can however be fitted.
- Longer back main shaft: to fit the longer chassis a protracted right back main shaft is necessary (which is in fact the same as usually the main one found in Cobra buggy 1.0 )
- complex coated shockcaps: the hardcoated aluminium shockcaps can withstand the rigors of crashes better
- Aluminium 14 deg casterblocks: The Cobra buggy has many steering at the moment rendering it turn quickly. The 14 degree caster obstructs assist smoothen steering away particularly, still lot of steering , but easier, less direct, creating a more stable front end.
Chassisplate
4mm longer hard anodised chassisplate in 3mm 7075 T6 aluminium , with machined pouches generate flex make lighter. Kick-up angle on front for stable landings. Countersunk holes. Slots for the key and back suspension mounts precisely. Angled edges to increase tightness. Laser engraved Cobra customized logo design.
Bumper
Aligned with framework kick-up for accurate landings and also to protect front suspension system owner and anti-roll club.
Chassis stiffners
Aluminium a lot longer back stiffener, and composite front part stiffener, to offer extra stiffness, but still enable some flex as required.
Central radio / servo mount
Composite radiobox that offers good room the steering and throttle -servo, the receiver and rx battery. Your installation including linkages is removed effectively and fast at the same time, whenever cleaning the vehicle, or doing maintenance. One extra post is added near the servo for security.
Servo arms and linkages
The servo fingers have actually actually a splined insert to really have the right fit per brand name. The linkages run really neat and tight and tend to be also accessible to alter settings.
Suspension brackets
fantastically machined 7075 T6 suspension system brackets in anodized, laser etched. Precision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks installation
Composite steeringblocks and 14 dgr black colored colored anodised aluminium C-hubs for accurate steering. Composite 10 and 12 deg c-hubs are included. Spring metal wheel-axles with big size bearings and larger interior with precision threaded aluminum wheel-hubs with offset. Flanged and serrated wheel peanuts.
Front suspension system system
Durable oversized paid off suspension system system arms in strong composite nylon. Regarding paid down part the first shaped downstops screws are setup. The reduced shock-mounting pins are guaranteed with a little grubscrew from base.
front side anti-roll club
The ballraced front anti-roll club system, consist of a springtime metal fold cable, that'll be led through diff-cases and runs in ballraced metal adapters. The cable is for this paid down suspension system system system supply, with a captured adjustable threaded pivotball, for incredibly accurate and low friction operation and simple tuning.
Shocktower and bodymounts front part
4.5mm thick carbon shocktower with 5 top positioning holes the shocks and and 6 holes for roll-center jobs. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to cut back the angle of difference involving the quantity total caster and steering airplane. Therefore you ought to have less bump steer and a truer steering Ackermann through the complete collection of suspension system system
Ackermann plates
along with the design with this steering bell cranks whenever changing the Ackermann you won't need to change your steering tie rods. You merely is only going to should adjust your end points on your own radio.
Rear suspension arms
Durable a lot longer oversized reduced suspension system system fingers in strong composite nylon. Regarding paid off component the unique downstops screws are installed. The reduced shock-mounting pins are secured with a tiny grubscrew from bottom.
Mud-guards
Superlight polycarbonate mud guards mount towards the newest paid down suspension system system system fingers, and will keep dust from your anti-roll bars transmission and wheels.
back uprights v2 installation
Composite uprights with 3 top roll-center positions. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Spring metal wheel-axles with big size bearings and larger internal people who have precision threaded aluminum wheel-hubs with offset . Rubber dustcovers in backside to shield the cvd system and keep carefully the lubrication in. Flanged and serrated wheel nuts to ensure you will not free a wheel nut in a race.
back anti-roll club
The ballraced front part anti-roll club system, have a springtime steel fold cable, that may be led through diff-cases and runs in ballraced steel adaptors. The cable is from the paid off suspension system system supply, with a captured adjustable threaded pivotball, for extremely exact and low friction procedure.
Shocktower back
4.5mm thick carbon shocktower, integrated in to the rear part for extra stiffness, with 5 top positioning holes the shocks and 6 holes for roll-center jobs.
Wingmount and bodymounts backside
Composite straight back wing, with strong nylon adjustable straight back bodymounts on wide body-support connection placed far sufficient towards the backside, to support the systems in easiest way.
Captured pivot pins and balls and bolted hinge pins. All spring-steel hinge pins are either captured or bolted put up creating in spring-steel quality. This insures your opportunities to be able to complete 1 hour approximately very long primary occasion, while fighting the lead. This relieves pressure on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to proceed to any angle without binding.
Shockabsorbers big-bore 16mm
Tricky Teflon coated threaded shockbodies with 4mm shock-rods. Tricky anodized aluminium screw on hard anodised shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks utilize big diameter membranes and big diameter o-rings and bushings produce a supersmooth and leak-proof package. Big diameter pistons are held arranged by a nut towards polished shock-rods tops. Start type spring retainer allowing dust out simple. The shock-shafts are protected by plastic footwear.
RCM shock springs
brief type colorcoded surprise springs are provided the very first standard set-up Springs are grinded flat top and base, and examined individually for anxiety and size.
Compact geardifferentials
Very compact gear differentials with actually smooth steel sintered gears, and metal shaft. Perfect sealing example with special gasket and o-rings. Really light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector operating in 2 oversized bearings . Drive ratio 4.3:1. This drive ratio will give you amazing acceleration along side low vehicle fat. Its a sure success, to assist enhance fuel useage
Front and straight back cvd-sets
Both front side and right back captured driveshafts are increasingly being alongside CVD system. Durable yet light springtime steel etched driveshafts with hard metal pins.
Spring metal transmission parts
Leading and back slim but strong spring steel cardan shafts link the differentials
Throttle and brake lever ball cups
Helps offer constant pulling regarding the stopping system lever or carburetor if you undertake not have the linkage entirely aligned.
Piston Braking system
Provides more stopping energy than you could have ever really imagined before with way less servo energy. Can be completely adjustable with 3 kinds of pistons, solid, O band type, springtime sort. Later on you'll adjust your bias or stopping feel towards taste alot more techniques than previously.
Fiber Glass disk braking system system
Fiber Glass stopping system disks with oversized front disk.
Brake dish springs
will keep the washing spread ready to accept guarantee un-wanted dragging the stopping system discs.
Rushing clutch 4 - footwear
enables you to mix and match footwear materials evenly in pairs. In addition provides more area contact to ensure the engagement. 4 carbon shaped shoes are standard ( alu people optional).
Coil exhaust cable and alu mount
Helps help with the main element to back movement connected with pipeline whenever framework flex occurs. Helps in avoiding dilemmas for the exhaust gaskets.
Engine mount
Machined 7075 T6 aluminium engine mount, with component cooling-fins.
Fueltank 125cc
Splash basin on tank top, self centering Fuel tank seal, The gas tank seal is angled to self guide its method in to the bore regarding the tank. At exactly the same time provides a seal regarding chamfered and flat edges from the seal, providing constant motor performance from pit end to some other. Integrated tank splash guard which helps to avoid gas from splashing on your ac filter in the event of an overly excited pit guy.
Fueline and stoppers
Kit included topqualiity soft silicone fuelline to be able to relate to tank, vehicle and pipeline, also includes tiny composite stoppers to close year fuelline when working with down tank, motor and or pipe.
Tank with swiveling nipple and floating clunk.
As a result of the swiveling nipple you are able to adjust the angle that you want you fuel line traveling. At the same time the drifting clunk assists when you go inverted. The clunk by gravity will fall in the fuel, using the flexibility associated with the silicone gasoline tubing.
Low profile air-con filter
Centralized air-con filter design to attenuate cab width and height. Versatile synthetic boot and strong nylon situation to steer the foam elements. Excellent dense foam airfilter elements to keep your machines clean inside.
Body
Serpent cab ahead Avenger body, with film and masking tape is roofed within the kit.
Straight back wing:
minimal version strong back white aero back wing is roofed for great downforce and right line stability.
Natural oils and oil
The shock-oil, diff oil and many grease concerns generally speaking meet the typical set-up.
