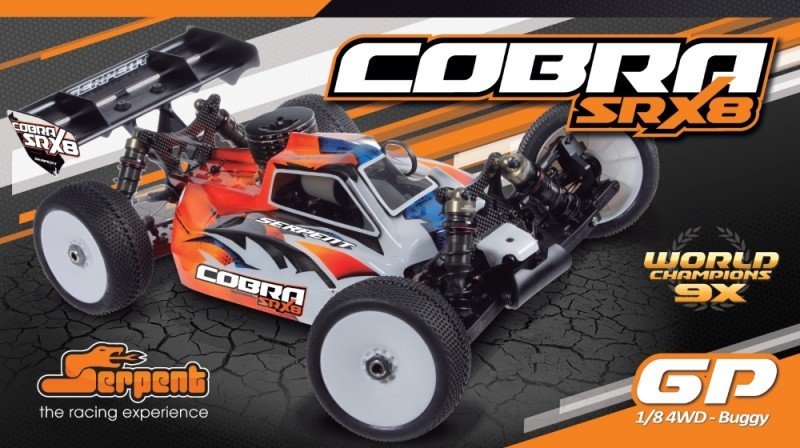

Cobra SRX8 buggy 1/8 GP top end rushing buggy in 1/8 4wd variation for gaspowered products. Main features include big bore shocks, 3 gear-diffs, twin diskbrake, competition clutch, ballraced anti-roll pubs, springsteel transmission elements and wheel axles.
Requirements:
- title: Serpent SRX8 Cobra Buggy
- course: 1/8 scale 4wd buggy
- type: kit-version, high-end competition
- wheelbase: 330mm
- width: 305mm
- weight: 3.300 grms ( battle prepared, depends upon radio-gear and motor)
- clutch: 4-shoe centrifugal, carbon shoes
- differential: lightweight, 3 geardiffs
- braking system: piston type with steel disks
- shocks: 16mm big bore with 3.5mm shafts
- fueltank: 125ccm, with built-in bronze filter
- gear-ratio: 4:3:1
- included: Kit, body, wing, silicone natural oils, color manual-USB, decalsheets.
Features:
- Stunning standard gear
- Cool Innovations
- Efficiency stuffed
- made to last
- effortless upkeep
- Great solution and help
Stunning standard gear
- Hardcoated coated framework 7075 T6, laser etched
- Steeringblocks alu 7075 T6, black colored colored colored coated, laser etched
- C-hubs 15 dgr, alu 7075 T6, black colored coated, laser engraved
- back uprights, alu 7075 T6, black colored coated, laser etched
- 4.5mm carbon fiber shocktowers front and back
- Big-bore shocks with machined pistons and spacers, unique supersmooth x-rings
- Hardcoated engraved shockcaps, 3.5mm rods and plastic sleeves.
- Front, central and rear geardifferentials
- 4-shoe racing clutch
- Durable wishbones ready for use with inserts ( moulded standard, carbon optional )
- metal diskbrake system with original pre-mounted brake-pads
- covered metal included framework skidplate in rear
- Lightweight and strong hardcoated aluminum camber and tracksrods
- right rear wing and fresh Avenger design human body
- Springsteel drive-train system with CVD and synthetic defenses footwear
- Ballraced anti-roll bars front and rear with pivot system
- Supernice radiobox design and completely included transponder -holder
- Decals the radiobox caps
- Top-quality sealed bearing with seals
Cool Innovations
- the newest Gear-differentials have actually a more substantial situations enabling substantially more oil inside, whilst having a build in effect compensating system. Both will generate a far more consistent diff in the longer functions.
- Wishbones which allow mounting inserts both in top like in to the base related to wishbones, that permits for a lot of feasible options to help nearly flex, utilizing no inserts, moulded inserts, carbon inserts, or mixed inserts.
- Angled steering system for optimal Ackermann and reduced bumpsteer.
Effectiveness loaded
- Fully adjustable for caster, camber, toe-in, toe-out, roll-center, rideheight, wheelbase, downstops, anti squat, kingpin angle, ackermann, the works !
- amazing geometry front side and back in conjunction with brand new framework form and much longer framework braces to obtain additional agile management, more steering, more straight back hold and improved security.
- Angled steering system for optimal Ackermann, responsive steering and repaid bumpsteer.
- Hardcoated shocks with groundbreaking internals in accordance with above requirements.
- battle clutch with 4- carbon footwear system
- Effective airfilter system with brand new angled artificial connector and strong wireholder
- unique areo pack with wider Avenger human body and brand new right wing for medium downforce. Optional high downforce adjustable polycarbonate right back wing and a premier downforce body become released quickly too.
Made to final
- Hardcoated framework with back framework skidplate
- Springsteel transmission elements and wheelaxles
- Aluminium steeringblocks, C-hubs,
- Dust footwear for shocks and all transmission components
- Unique mix composites for super durable moulded elements
- straight back bodymount with artificial damped system
- top quality greased, sealed bearings throughout
- Durable steering and servo-saver system, and aluminium Ackermann dish with prepressed bearings.
Easy maintenance
- quite simple front side part and back differential access with 4 screws simply
- a breeze use of the primary differential and braking system system
- quite simple lever system the throttle and stopping system
- Super easy reduction and re-assembly of motor, radiobox, tank, complete radiobox, complete front side and rear, complete center installation
- Supernice fresh fueltank with screw-on type fueltube holders, insert-system to lessen tankvolume , improved filter/clunk , enhanced fuelcap and springtime.
Great info, solution and help
- Car-kit includes USB stick to color construction in PDF with hotlinks to internet sites for simple additional components selection ( printed manual variation to check out).
- Serpent distributors and dealers are active in every aspects of the rc race world, for information, solution, help and provide
- Effective Kits, spares and optional supply
- usage of Serpent website, TeamSerpent site, Serpent Twitter, Serpent Twitter Groups ( per automobile), Serpent Twitter, Serpent Advanced Manuals
- be engaged set for Serpent Master Classes ( SMC) by Serpent team-drivers
Framework
The framework cnc machined from 3mm dense aerospace kind 7075 T6 aluminium and comes hard anodised for durability. The brand new sort is wider through the back into just help the framework roll and drag in rougher conditions. The kick-up angle is optimised to suit due to the mating elements. All holes in framework are countersunk.
The framework features 2 big pouches, one is the metal skid dinner and one the principal skidplate. You will find 2 keyholes to center-fix the greatest and rear suspension system system system brackets set up. The pocket the flywheel is sufficient to complement oftentimes used starterwheels.
The sideguards mount toward fold chassis-sides through the inside with pre-threaded holes into the framework. The framework provides good size surfaces the downstops.
Straight back skid plate
The cnc machined metal skid dinner will protect the framework within buttocks which it wears most. Its effectively replacable by a whole new one, with only 4 screws. Optional individuals in other materials to check out.
Steeringblocks
The steeringblocks are produced from 7075 T6 aluminium and are also usually anodised in black colored. These steering obstructs happen created to enable you to change the Ackermann within steering spindle including offer usa aided by the optimal scrub offset in conjuction due to the caster block. The bushings push into the obstructs and minimize any unwanted play.
Chassis stiffeners
additional long framework stiffeners, front and rear in composite product to possess best flex and stops the framework to flex excessively. Simple securing fastening system.
Side-guards
The composite sideguards help with keeping debris out of the vehicle, contain rigidity toward framework and support the body. The sideguards are fixed towards chassis from most remarkable in pre-threaded holes toward framework. This way the screws are protected well and its own more straightforward to re-assembly whenever required. The sideguards work a pocket externally allowing mounting some felcron tape to steer / fix your system.
Steering system
The double axis steeringsystem with essential servo saver is set up under an angle in the low priced bumpsteer and a direct steering feel. The axis are built in lightweight aluminium.
the newest bellcrank takes a bearing raced crossbar with zero slop. It created combined with the optimal Ackermann to boost the cars driveability.
Servo saver
These completely new servo saver elements not only have the latest Ackermann, but additionally have actually in fact a fresh interior servo saver design. It gives a helix in order to guarantee the proper working for the servo saver construction. The servo saver springtime is protected by a dense foam target, to carry debris out. The springtime pre-tension clamp nut may be locked in place in order to avoid switching loose.
Radio-tray
the straightforward to utilize and durable radiotray is established lower than feasible yet such shows that many devices easily fit in easy and simple well. Its features a seperate area towards front part the battery pack, to really have the heavier component more front. The lid has 4 screws. Both servos easily match well with lots servo-spacers to set up them regarding right height. The framework below the servos has reduced pouches allow mounting the servo?s suprisingly low. Ofcourse you need to think of chassisflex/torsion, consequently dont mount them too low. The transponder, little or medium type, has a nice flush mounted owner included. The receiver package offers 4 little screws for easy and quick access. You will install an ordinary switch, or make use of the provided address by using another solution. 2 decals are included to invest in the battery pack and receiverbox.
Airfilter
good quality 2 piece dense foam for perfect filtering ( usage topquality airfilter oil just ). The master enables effortless construction. Regarding front part ?top component the mount is linked to the guts assistance with a spring cable, fixed with a bodyclip. The most recent synthetic elbow allows good airflow and features wide grooves to make use of tie-wraps.
Fueltank
The125cc gas tank is a complete brand-new design. The springtime and limit permit the force be a bit more equal through the whole the top of restriction, plus the design from the restriction does not have flex . The clunk was increased so that it will remain in base from the tank and will maybe not pop-up or float in the base. Although the drain area towards the top is improved where there was now a 4mm opening which will enable dust and debris to flee and not block. The fuel-tube videos now mount on tank with screws so you will not should be concerned about loosing them. The tank pull allows for quicker and more safe refuelling. The tank is re positioned to ensure its further from exhaust , which will prevent melting regarding the tank. The kit includes function made insert to cut back this article if needed. The tank mounts on 2 strong composite poles with plastic grommets for versatile mounting and invite easy dis-assembly for checks and cleansing.
Driveshafts / transmission
The Serpent springsteel driveshaft are equal long ahead and rear and definitely the main ones, that is feasible for spares stocking.
Center diff mount
Durable center mounts with big size bearings to put in the braking system system and center diferential. A moulded brakedisk guider is installed regarding the brackets. Your whole system is manufactured as low as easy for CG reasons. The sleek top-cover keeps dirt away and guides both braking system cams.
brake system
The SRX8 provides a regular braking system with stopping system cams, metal disks and metal pads with effective pre-glued brakepads .
Differential circumstances
The strong moulded differential circumstances that include the differential and aids the shocktowers.
The differential front side and back are eliminated after taking out just 4 screws and eliminating the anti-roll bars, super-easy !
Differentials
The diff housing was completely re-designed to produce way of evolution in diff technology. The diff now has cavities created made for shut mobile foam. This foam can make up for expansion linked to the oil, that may let us fill the diffs more complete, maintaining the gears entirely engulfed in oil. The cavity in which the gears sleep has additionally been redesigned so that there is not low force areas outside of the gears. This might keep more oil on gears additionally whenever rotating at high rpms. Consequently could well keep the diff more constant at low and high rates including hot or cool .
Differential gears 28 / 14 / 44
The hardmetal 28T and 14T satellite gears have an even more significant general diameter, to cause them to become more in oil, making the diff more constant , smoother and much more effective . The metal 44T ring gear is lighter and possesses an incredible match using the unique 28T gear.
engine mount
Lightweight CNC machined motor install in 7075 T6 aluminium with pre-threaded holes and big contact area with framework, comes grey anodised .
Wingholder back
the trunk wing owner is an excellent durable and light one piece moulded device . The set includes wing-spacers to place the wing under some views.
Wheel axles / hex / footwear
The durable Serpent springsteel wheelaxles are captured CVD design and still have plastic shoes to shield the product and bearings against dirt and dust, therefore it will all continue much longer. The wheel hex is a durable hard aluminium variation which fits all popular tires completely. The pins used are 3mm people to boost durability.
C-hubs
The brand new 15 dgr c-hubs are manufactured in 7075 T6 alminium and are also anodised in black colored colored. These available design actually durable devices allow enough room enabling the most steering-angle and lalow area to put in the rubber dust protectors regarding CVD system. As optional you can expect 13 and 17 dgr alu c-hubs too.
Uprights
The uprights are manufactured from 7075 T6 aluminium with black colored colored anodizing and are usually usually universal individuals be used held and appropriate . The most recent uprights have truly the roll center modification offered with little inserts . Set screws are used to shrink down regarding hinge pin to eliminate any unwelcome play. Inside base level 2 threaded holes are created to permit mounting the optional metal loads of 15 gr each for rough conditions.
Wishbones
actually durable and very long moulded wishbones front and back. The composite is plumped for to own enough flex whenever needed. The design has pouches in top and base area of each supply to set up the traditional moulded insert meals, and/or optional carbon fibre people. In that way you'll be able to select the best supply flex for every single condition. Additionally various or no inserts front part or straight back and combining moulded and carbon inserts is achievable. The moulded inserts will stiffen the arms some, but keeps them cleaner. The carbon people, or blended with moulded ones will stiffen the hands lots. Several choices to make use of.
Mudguards
The mudguards are situated in lightweight transparant polycarbonate and will also be left clear, be painted or skinned as prefered.
Suspension brackets
The suspension system system brackets are CNC machined in 7075 T6 aluminium and grey anodised. They key in toward framework for perfect fit. The brackets have accuracy machined pouches to work with inserts to change the set-up.
Anti-roll pubs
The anti-roll club system is the greatest around. Precison made cable runs in ballraced adaptors about the front side and back diff case-plates. Superfree and stabile. The cable links to a balljoint that is usually fitted with a pivotbal toward wishbone. The works !
Shocktowers
the key and back shocktowers are durable 4.5mm carbon fibre devices, CNC machined.
Clutch
The effective 4-carbon shoe competition clutch is continued . It may be entirely pre-assembled and stay installed towards motor. The system includes a light and little alumnium flywheel and durable springsteel 13T clutch-housing .
Shock springs
Race shock springs which are pre-selected and paired. The shocksprings are grinded flat for perfect operation.
Shocks
The shocks are an entirely overhauled design. Durable polished steel 3.5mm rods are used with hard anodised caps and threaded shock-bodies. A fresh sealpack contain machined bushings and fresh x-rings which is held in place with a small inside clip. The shockpistons are machined delrin products for best performance. The shocks in kit are membrame design, with emulsion type hardcoated caps and seals become offered as choice.
Wing back black colored
the newest flat type back wing is an efficient medium downforce product with big sidewings. The decalsheet offers sidewing decals to work well with.
Bodymounts
a corner human anatomy mount has a plastic pillow inside. Permits the body mount to turn front part to rear in an obvious impact or crash. This saves the body from breaking or tearing. Leading one is a fixed sort which is easy available.
Ballbearings
quality shielded bearings with oil through kit.
Body
a whole new Avenger design body is developed the SRX8 with moderate level downforce. Cab-forward design human anatomy with little fin on the top for safety. Sweet moving sides with little back upward fins for straight back downforce. Enough room allowing for airfilter, enggine head, carburetor and exhaust / exhaust adaptor. Top-notch polycarbonate. Your body has good trimlines for easy cutting. Exact same the bodyholes. A masking sheet is roofed to assist with paintjob preps.
