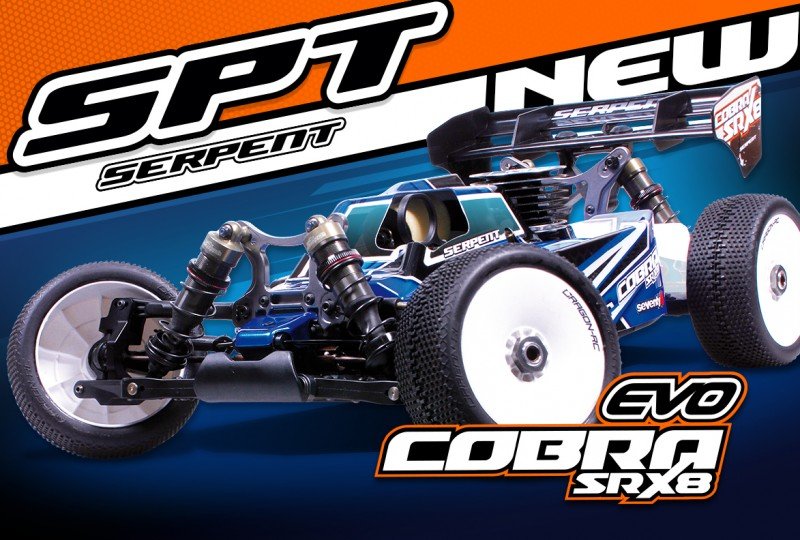

Serpent SER600019 Cobra SRX8 EVO GP 1/8 4wd [SER600019]

Price:

£488.44

Brand:

Serpent

Model:

SER600019

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Off-Road - Buggy - Nitro Powered category

Write a review

alt="Serpent SER600019 Cobra SRX8 EVO GP 1/8 4wd" title="Serpent SER600019 Cobra SRX8 EVO GP 1/8 4wd"

Description

Specifications

name: Serpent SRX8 EVO Cobra Buggy
course: 1/8 scale 4wd buggy
kind: kit-version, upper end competition
wheelbase: 330mm
width: 305mm
weight: 3.300 grms ( competition prepared, depends upon radio-gear and motor)
clutch: 4-shoe centrifugal, carbon shoes
differential: lightweight, 3 geardiffs
brake: piston kind with metal disks
shocks: 16mm big bore with 3.5mm shafts
fueltank: 125ccm, with integral bronze filter
gear-ratio: 4:3:1
included: Kit, human anatomy, wing, silicone natural oils, color manual-USB, decalsheets.

Stunning standard gear

- coated framework 7075 T6, laser engraved
- Steeringblocks aluminum 7075 T6, black colored coated, laser engraved
- C-hubs 15 dgr, aluminum 7075 T6, black colored colored coated, laser etched
- 4.5mm anodized aluminium 7075 T6 shocktowers front component and rear
- Big-bore shocks with machined pistons and spacers, brand new supersmooth x-rings
- Hardcoated engraved shockcaps, 3.5mm rods and synthetic sleeves.
- front part, primary and straight back geardifferentials with foam insert system
- 4-shoe battle clutch
- durable wishbones prepared to be used with inserts ( molded standard, carbon optional )
- metal diskbrake system with exclusive pre-mounted brake-pads
- Lightweight and strong hardcoated aluminum camberlinks and tracksrods
- right back wing and groundbreaking Avenger high downforce design body
- Springsteel drive-train system with CVD and synthetic defenses shoes
- Ballraced anti-roll bars front and right back with pivot system
- Supernice radiobox design and totally included transponder -holder
- Decals for the radiobox caps
- Top-quality NSK sealed bearings in critical areas

Servo saver

These servo saver elements not just get the best Ackermann, and have now now good inside servo saver design. It provides a helix to assure the appropriate running regarding the servo saver make. The servo saver springtime is protected by a dense foam target, to carry debris out. The springtime pre-tension clamp nut are locked in position to avoid turning loose.

Steering system â servo saver

The double axis steeringsystem with built-in servo saver is installed under an angle about the inexpensive bumpsteer and a far more direct steering feel. The axis are developed in light-weight aluminium. This brand new bellcrank takes a bearing raced crossbar with zero slop. It constructed with the most effective Ackermann to enhance the automobiles drive-ability.

Engine mount

Lightweight CNC machined motor install in 7075 T6 aluminium with pre-threaded holes and big contact area with framework, comes grey anodised .

Chassis stiffeners
Extra long chassis stiffeners, front and in composite product to own right flex and stops the chassis to fold too much. Effortless securing fastening system.

Side-guards
The composite sideguards keep debris from the car, include rigidity toward framework and gives the body. The sideguards are fixed towards framework through the top in pre-threaded holes into the framework. Because of this the screws are protected well including its better to re-assembly whenever required. The sideguards work a pocket on the outside allowing mounting some felcron tape to steer / fix your body.

Serpent Cobra SRX8; Comprehensive Details

Chassis
The framework cnc machined from 3mm aerospace kind 7075 T6 aluminium and comes anodised for durability and possesses an optimised engine location. All holes within the framework are countersunk.
The pocket the flywheel is adequate allowing for many commonly used starterwheels. The sideguards mount to your fold chassis-sides through inside with pre-threaded holes in chassis. The framework provides good size areas for the downstops.

Engine mount
Lightweight CNC machined motor install in 7075 T6 aluminium with pre-threaded holes and large contact area with framework, comes grey anodised .

Chassis stiffeners
Extra long framework stiffeners, front part and back in composite material to possess right flex and prevents the framework to fold in excess. Effortless securing fastening system.

Side-guards
The composite sideguards keep debris from the car, include rigidity towards the framework and provide the human body. The sideguards are fixed towards the framework from top in pre-threaded holes in to the framework. In this manner the screws are protected well as well as simpler to re-assembly whenever needed. The sideguards feature a pocket externally allowing mounting some felcron tape to guide / fix the body.

Steering system â servo saver
The double axis steeringsystem with integrated servo saver is installed under an angle at a lower price bumpsteer and a direct steering feel. The axis are manufactured in light-weight aluminium. This brand new bellcrank accepts a bearing raced crossbar with zero slop. It created using the right Ackermann to enhance the cars drive-ability.

Servo saver
These servo saver elements not only get the best Ackermann, but in addition have actually really good interior servo saver design. It includes a helix to make sure the most suitable working from the servo saver arranged. The servo saver springtime is protected by a dense foam address, to hold debris out. The spring pre-tension clamp nut is locked create to stop turning loose.

Radio-tray
The user friendly and durable radiotray is created only feasible yet such suggests that all electronics easily squeeze into simple and easy well. Its features a seperate part in-front the battery, to truly have the thicker component more front. The lid has 4 screws. Both servoâs squeeze into nicely with lots servo-spacers to install them on right height. The chassis inside the servoâs has paid off pouches allowing mounting the servoâs suprisingly low. Ofcourse it is also imperative to consider chassisflex / torsion, consequently donât mount them too low. The transponder, little or moderate sort, has an excellent flush mounted owner included. The receiver industry has also 4 small screws for effortless and quick access. You can expect to install a day to day switch, or use supplied target in the event that you utilize another solution. 2 carbon look decals are included to cover the battery pack and receiverbox.

Fueltank
The125cc fuel tank using the spring and cap enable the force are far more equal throughout the entire the top limit, and the design of restriction doesn't always have flex . The clunk is increased in order that it will always be in base of tank and will not pop-up or float in the bottom. Even though the drain area at the top was improved by which there was now a 4mm opening that will enable dust and debris to flee and not block. The fuel-tube videos now mount towards the tank with screws consequently you wont must certanly be worried about losing them. The tank pull allows faster and many other things safe refuelling. The tank is further from exhaust , which will avoid melting regarding the tank. The kit includes purpose made insert to cut back the knowledge if required. The tank mounts on 2 strong composite poles with artificial grommets for versatile mounting and permit effortless dis-assembly for checks and cleaning.

Airfilter
High quality 2 piece dense foam for perfect filtering ( usage topquality airfilter oil just ). The owner allows effortless installation. Regarding the front âtop component the mount is attached to the center advice about a spring cable, fixed with a bodyclip. The latest plastic elbow allows for good airflow and features wide grooves to utilize tie-wraps.

Center diff mount
Durable center mounts with big size bearings to install the stopping system system and center diferential. A moulded brakedisk guider is attached to the brackets. Your entire system is made just simple for CG reasons. The sleek top-cover keeps dust away and guides both braking system cams.

Brakes
The SRX8 supplies the typical stopping system with brake cams, metal disks and metal pads with effective pre-glued brakepads .

Clutch
The effective 4-carbon footwear competition clutch is proceeded . It could be totally pre-assembled and become setup on engine. The device comes with a light and small aluminium flywheel and durable springsteel 14T clutch-housing .

Differential cases
The strong moulded differential situations which may have the differential and supports the shocktowers.
The differential front and rear is removed after taking out fully just 4 screws and getting rid of the anti-roll pubs, super-easy !

Differentials
The compact geardiffs with big oil quantity. The diff has cavities created specifically for shut mobile foam. This foam can make up for expansion the oil, which will let us fill the diffs more full, keeping the gears totally engulfed in oil. The cavity where gears rest has additionally been redesigned in order that there is not low force areas not inside gears. This might keep more oil inside gears although rotating at high rpms. As a result can keep the diff more constant at low and high rates as well as hot or cool .

Differential gears 28 / 14 / 44
The hardmetal 28T and 14T satellite gears have actually really an even more impressive general diameter, to make sure they are more in oil, making the diff more consistent , smoother and more powerful . The metal 44T band gear is light possesses an ideal match using the brand-new 28T gear.

Wheel axles / hex / boots
The durable Serpent springsteel wheelaxles are captured CVD design whilst having plastic shoes to safeguard the system and bearings against dust and dirt, so that it will all last longer. The wheel hex is a durable difficult aluminium variation which fits all popular tires well. The pins used are 3mm individuals improve durability.

Steeringblocks
The steeringblocks are designed in 7075 T6 aluminium because they are furthermore anodised in black colored. These steering blocks happen built to allow you to replace the Ackermann on steering spindle plus offer united states aided by the suitable scrub offset in conjuction aided by the caster block. The bushings push in to the obstructs and minmise any undesirable play.

C-hubs
The fresh 15 dgr c-hubs are designed in 7075 T6 alminium and generally speaking are anodised in black colored. These available design really durable products help enough room to permit the optimum steering-angle and lalow area to mount the rubber dust protectors on CVD system. As optional currently 13, 17 and 19 dgr aluminum c-hubs too.

Uprights
The fresh strong composite uprights enter into utilize the team variation. Offering 2 lower and 4 top roles for set-up.

Wishbones
Very durable and extremely long moulded wishbones front and back. The composite is selected to own adequate flex whenever required. The appearance has pockets towards the top and underside of this supply to include the typical moulded insert meals, and/or optional carbon fibre people. By doing so you are going to pick the best supply flex for every single condition. Also different or no inserts front component or straight back and combining moulded and carbon inserts can be done. The moulded inserts will stiffen the arms a little, but keeps them cleaner. The carbon ones, or alongside moulded people will stiffen the hands a great deal. Several choices in an attempt to use.

Mudguards
The mudguards can be found in lightweight transparant polycarbonate that may be held clear, be painted or skinned as prefered.

Suspension system brackets
The suspension system brackets are CNC machined in 7075 T6 aluminium and grey anodised. They key to the framework for perfect fit. The brackets have actually in fact accuracy machined pouches to work well with inserts to enhance the set-up.

Anti-roll bars
The anti-roll club system is the foremost around. Precison made cable runs in ballraced adaptors within the front part and back diff case-plates. Superfree and stabile. The cable links to a balljoint that will be fitted with a pivotbal on wishbone. The works !

Shocktowers
leading and right back shocktowers are durable 4.5mm 7075 T6 alumimium items, CNC machined and laser etched with Serpent logo.

Shocks
Durable refined steel 3.5mm rods are used with hard anodised caps and threaded shock-bodies. The sealpack have machined bushings and brand-new x-rings and is held in position with just only a little inside clip. The shockpistons are machined delrin items for many effortlessly of use performance. The shocks in the kit are membrame design, with emulsion kind hardcoated caps and seals become supplied as choice.

Shock springs
Race surprise springs being pre-selected and paired. The surprise springs are grinded flat for perfect procedure.

Wing back black
The unique flat sort straight back wing is an effectual medium downforce device with big sidewings. The decalsheet provides sidewing decals to work well with.

Wingholder rear
The straight back wing owner is a wonderful durable and light one piece moulded unit . The set includes wing-spacers to put the wing under an array of views.

Body
Avenger design high downforce body is developed the SRX8. Cab-forward design human body with little fin over the top for protection. Sweet going sides with little back upward fins for rear downforce. Room enough making it possible for airfilter, enggine mind, carburetor and exhaust / exhaust adaptor. Excellent polycarbonate. The body has nice trimlines for easy cutting. Identical the bodyholes. A masking sheet is roofed to greatly help with paintjob preps.

Bodymounts
This straight back body mount has a rubber cushion inside. Permits your system mount to turn front component to rear in a primary effect or crash. This saves our body from breaking or tearing. The best one is a collection sort which is effortless available.

Ballbearings
Top quality shielded NSK bearings with oil through the entire kit.

Manual
amazing color PDF manual in landscape orientation to own more area to spell out all, while having now appropriate design for display usage and. Color variation with extra step-by-step views and documents, and showing the device in genuine size for every web page. Serpent USB stick is roofed with manuals and set-up sheets.

Set-up sheet
Blank, standard and edit variants ready to utilize.

Decals
In the kit comes 1 Serpent logosheet and 1 Cobra SRX8 sheet

Box / packing:
The Cobra SRX will be good carton field with Serpent logo design, that is usually re-used for tyres or other gear. The container is covered with outstanding color sleeve showing the vehicle front part and straight back.

Heritage

Serpent as business had been only for sale in 1980, and it has now now over 35 years expertise in developing, testing, designing and manufacturing rc modelcars and it is one of the longest current rc brands worldwide with 10 World Championship games and countless European, United states, Asian and nationwide games won by Serpent motorists !

Design

Serpent designer Billy Easton from USA, is element of a group of designers, each using their own specialty. Billy used the input from numerous Serpent motorists, teamdrivers and organizations, to come up with this EVO variation 1/8 buggy. The important thing focus is constantly on performance, but we now have paid some consider eas of good use and durability.

For motorists that also operate electric 1/8 buggy, Serpent provides the Cobra SRX8-E that'll be in line with the exact same platform and stocks numerous elements using the GP variation, therefore its outstanding combination.

Great information, solution and help

- Car-kit includes USB follow color construction in PDF with hotlinks to websites for effortless free components selection .
- Serpent vendors and dealers are active in nearly every areas of the rc battle globe, for information, solution, help and supply
- usage of Serpent site, TeamSerpent website, Serpent Twitter, Serpent Twitter Groups ( per automobile), Serpent Twitter, Serpent Advanced Manuals
- be involved in for Serpent Master Classes ( SMC) by Serpent team-drivers

Eas of upkeep

- simple front and back differential access with 4 screws only
- quite simple utilising the main differential and brake system
- quite simple lever system the throttle and stopping system
- quite simple therapy and re-assembly of motor, radiobox, tank, complete radiobox, complete front and right back, complete center assembly
- Supernice fueltank with screw-on kind fueltube holders, insert-system to cut back tankvolume , enhanced filter/clunk , improved fuelcap and springtime.

Performance loaded

- completely adjustable for caster, camber, toe-in, toe-out, roll-center, rideheight, wheelbase, downstops, anti squat, kingpin angle, ackermann, the works !
- geometry front side and straight back coupled with framework kind and longer framework braces for lots more agile administration, more steering, more back hold and enhanced balance.
- Angled steering system for optimal Ackermann, responsive steering and paid off bumpsteer.
- Hardcoated shocks
- battle clutch with 4- carbon footwear system
- Effective airfilter system with brand-new angled synthetic connector and strong wireholder
- amazing areo pack with Avenger high downforce human body and right wing for medium downforce. Optional high downforce adjustable polycarbonate rear wing.

Set-up sheet

Blank, default and edit variations prepared to utilize.

Decals
In the kit comes 1 Serpent logosheet and 1 Cobra SRX8 sheet

Box / packing:
The Cobra SRX will be an excellent carton industry with Serpent company logo, which are often re-used for tyres or other gear. The container is covered with an excellent color sleeve showing the vehicle front side and right back.
