Top competition rushing buggy, for high-end competition use. 4wd, 3 small diffs, 4-shoe competition clutch, 16mm bigbore shocks, light alu shocktowers, shaped alu suspension system system system holders, unique angled front component steering, low design braking system, exemplary springtime metal and very durable anodised alu elements.
Specs:

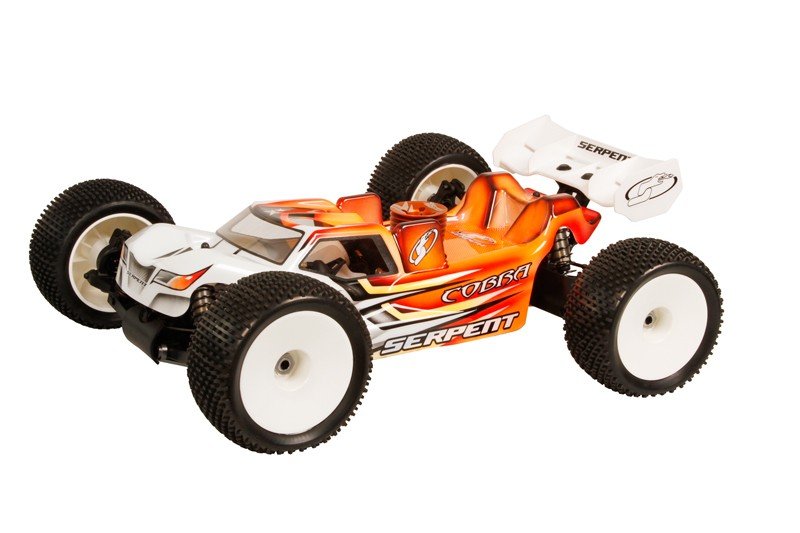

- name: Serpent Cobra-T Truggy
- course: 1/8 scale 4wd truggy
- type: kit-version, first class competition
- weight: 3.600 grms ( competition ready, is dependent upon radio-gear and motor)
- clutch: 4-shoe centrifugal, carbon footwear
- differential: lightweight, small geardiffs , front, main and rear
- brake: piston type with glassfibre disks
- shocks: 16mm big bore
- fueltank: 150ccm, with vital bronze filter
- gear-ratio: 4:3:1
- included: Kit, body, wing, silicone oil, full color manual, decalsheet.
- perhaps perhaps not included: Radio-gear, tyres-wheels, engine, pipeline.
Features:
Framework
incredibly slim 3mm 7075T6 aluminium framework, with a lot of machining in top face making it lighter in strategic areas plus get a handle on flex. Kick-up front side for appropriate landings. Angled part to boost cornering approval, and safeguarded and easy mounting component guards with 5 screws. Countersunk holes, chamfered sleeve for flywheel, pouches to place the suspension system system brackets. Grey anodized with Cobra Logo engraved.
In general the Truggy was created to keep the fat actually main and then on centerline you could, to come up with great
Central diff / braking system / spur-gear guard
Optimised central gear-diff with 50T super-hard spur-gear . Really small, compact design to cut back rotating mass on optimum.
Spur Gear Guard
helps while we are avoiding the spur gear from slinging debris all over the in the automobile and especially inside ac filter. Functions for rainfall and water puddles.
Piston Braking system
Provides more stopping power than you can have ever imagined before with a lot less servo energy. Is also completely adjustable with 3 kinds of pistons
solid, O-ring sort, springtime kind. Afterwards you can adjust your bias or braking feel towards style way more methods than previously.
Fiber Glass braking system disks with oversized fronts. Brake dinner springs can keep the toilet distribute ready to accept guarantee maybe not un-wanted dragging towards stopping system discs.
Transmission shafts
Durable but light and slim Serpent springtime metal, laser etched shafts.
Front and straight back diff
Optimised gear-diff with 50T superhard spur-gears . Small, compact design to minimize rotating mass on optimum. Same variation front side and rear. Diff coupler in spring metal for 3 bearings
back shocktower
Light, strong and durable machined 5mm carbon fibre devices with 5 functions for shockangle.
Sleek low profile air-con filter
Centralized ac filter design to attenuate cab width and height. Versatile synthetic boot along with strong nylon situation to steer the foam elements. Exceptional dense foam airfilter elements to put up your machines clean inside
Rubber footwear for shafts
Keeps the dust out and lubrication in. Reduces use.
Suspension brackets back
Well machined 7075 T6 alumnium with eccentric inserts to boost set-up.
straight back wing mount
The composite straight back wing mount, permits to enhance the angle linked to back wing.
Back wing
Two period high down force wing, has two levels of angle, that also includes 2 fins. Helps improve down force and right line ability
Bodymounts
Nylon bodymounts with wider sitting the human body, firmly fastened towards shocktowers.
Super minimal profile body
Improves appearance plus keeps the profile minimum.
Decals
Serpent and Cobra logo decals in black-white printing
Broadcast package
Composite one piece radiobox to securely install servo s, battery pack and receiver. Immediate access with screw on tops and good switch-cover. Broadcast linkages run extremely right and are also a simple task to install and set. Effortless system to help keep settings whenever eliminating the linkage arranged.
Anti-roll club
Anti-roll bar / anti-roll club linkage with pivotball
The anti-roll pubs front and right back are formulated out of quality unique springtime steel, and generally are usually in addition captured in regards to the diff-cased in ballbearing for perfect guidance and control.
Front suspension system system
Extended and durable composite reduced wishbones, along with top spring-steel trackrods. 2 paid off shock-mount functions. Downstops can be utilized as required. Pivotball sort anti-roll bar rods.
Front steering / servo saver / angled
Revolutionary angled front part steering arranged to lessen the angle of massive difference between your total caster and steering airplane. For that reason you will have less bump steer and a truer steering Ackerman through the entire range of suspension system.
Adjustable springtime stuffed servo-saver system with interchangeable Ackermann meals. Aided by the design associated with steering bell cranks whenever changing the Ackerman you won't need certainly to adjust your steering tie rods. You just will simply must take control of your end points inside radio.. a breeze to find yourself in and set-up.
The Inboard Bell crank keeps the lever and linkage in the automobile. It will help with preventing issues for the steering system. Zero scrub radiuses on steering knuckle, assists in reducing the jacking impact generated by your steering knuckle offset. It includes a much more direct fallen while maintaining the cars chassis more level while switching.
Leading roll center are changed quickly by going the steering knuckle shims for their appropriate areas. Topped of with a great 5mm carbon fibre top-plate.
Front steering-block / c-hubs
really durable front side steeringblock / C-hub construction .
Drive-shafts
Long and lightweight springtime steel devices with pressed in metal pins, laser-engraved. Same size front component and back.
Wheel-axles / wheel-nut
Serpent springtime metal threaded wheel-axles with lightweight grey anodised aluminium wheel-nuts ( flanged and serrated) to help keep the massive truggy wheels/tyres on the right track.
Composite framework braces
Allows the framework to flex which assists improve bump management. Front side and straight back.
Front bumper
well curved front side bumper, the same as about the Cobra buggy, to protect the best anti-roll club, suspension system system brackets, and moves inline with kick-up framework front part for safe landings.
Front shocktower
Light, strong and durable machined 5mm carbon fibre devices with 5 jobs for shockangle.
Suspension brackets alu
The hinge-pins / hingepin balls are captured in precision machined, special shaped 7075 T6 aluminium, grey anodized with indicated type. They capture the nylon roll-center inserts.
Captured universal bones
the theory the following completed up being easy. Guarantees you ought to complete a race without loosing a pin or set screw. All parts, axles and drive train elements have actually capture pins
Side guards
Durable shaped composite component guards that continue due to the type of the framework, and mount with 5 screws each part. Front and edges enough to help keep the dirt down.
Shock-set front side and back
16mm big bore shocks, with difficult anodized accuracy threaded shock-bodies. Shockboots in silicone synthetic to put up the dust out . Chromed shock-shafts for supersmooth shockaction . The bigger o rings provide less fundamental stress and a better seal without dragging regarding shock shaft.
backside uprights
Durable composite back uprights with 3 camber functions
Mudguards
In moist or damp dirt circumstances these mud guards reduce and dirt sticking to a large part drive shafts and shocks. Follow distinct wishbone completely.
motor mounts
Wide aluminium engine mounts with part cooling-fins. Fits any brand of motor.
Pipe-mount / cable
Alumnium variation and coil spring-steel wire, to help keep pipeline well placed and limitations seal ?breakage.
Rushing clutch 4 - footwear
enables you to mix and match footwear materials evenly in pairs. Furthermore provides more area contact to make sure the engagement. 4 carbon shaped footwear are standard ( alu people optional).
Fueltank
Strong nylon 150cc fueltank with clunk-style filter.
Splash basin on tank top, which assists in reducing gas all around the framework in the event of a messy pit stop. The basin gathers the splashed gas and guides it properly out of the base from the framework. The fuel tank seal is angled to self guide its option to the bore regarding the tank. Furthermore provides a seal regarding chamfered and flat sides associated with seal, supplying constant engine performance from an individual pit stop to a new location.
Tank with swiveling nipple and drifting clunk.
Utilising the swiveling nipple you'll adjust the angle by which you will need you fuel line to visit. At exactly the same time the drifting clunk assists once you have unsightly. The clunk by gravity will fall back in the gas, utilizing the freedom associated with the silicone gasoline tubing.Oversized Tank with adjustable amount. Utilizing the insertion of a simple screw and quantity reducer you will have ROAR, IFMAR and simply about every single other organizations appropriate tank volumeSmall nylon stoppers the fuel-line are incorporated with the kit to prevent fuel spilling.
Ball bearings
Complete musical organization of high speed, unique lubricated ball bearings.
sebum / oil
Kit includes quality silicone oils the diffs and shocks and a container of oil.
