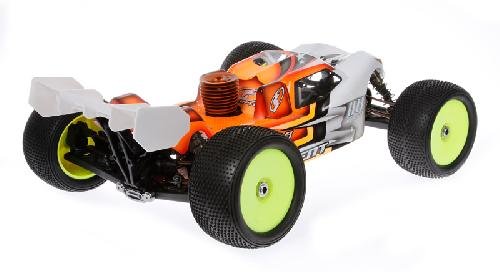

Serpent Cobra Truggy, variation TE, gaspowered 1/8 scale 4wd upper end competition variation. Kit variation. Brand new variation features brand-new diff-couplers coupled with larger bearings, and bigger bearings in steeringblocks and uprights, all to improve durability far more. 4wd gaspowered version, on the basis of the effective Cobra Buggy. The ultimate competition rushing truggy, for top quality competition usage. Developed by Serpent designer/racer Billy Easton, Usa.
Specs:
- Title:: Serpent Cobra-T Truggy
- Class:: 1/8 scale 4wd truggy
- Type:: kit-version, excellent competition
- Body fat:: 3.600 grms ( competition prepared, is created on radio-gear and engine)
- Clutch:: 4-shoe centrifugal, carbon footwear
- Differential:: lighweight, small geardiffs , front part, main and back
- Brake:: piston type with glassfiber disks
- Shocks:: 16mm big bore
- Fueltank:: 150ccm, with integrated bronze filter
- Gear-ratio:: 4:3:1
- Wheels: perhaps not included; vehicle made for 0-offset tires
- Included:: Kit, human body, wing, silicone oil, full color manual, decalsheet.
- Not included:: Radio-gear, tyres-wheels, motor, pipeline.
Features:
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches to come up with flex make lighter. Kick-up angle on front for stable landings. Countersunk holes. Slots to learn top and right back suspension system system system mounts correctly. Angled sides to enhance tightness. Laser engraved Cobra T logo.
Bumper
Aligned with framework kick-up for accurate landings also to protect front suspension system system owner and anti-roll club.
Chassis stiffeners
Composite stiffener front component and rear, to give additional tightness, but nevertheless allow some flex as required.
Central radio / servo mount
Composite radiobox providing you with good room the steering and throttle -servo, the receiver and rx battery power. The whole installation including linkages are removed efficiently and fast simultaneously, whenever cleansing the vehicle, or doing upkeep. One extra post is added towards the servo for safety.
Servo fingers and linkages
The servo arms have actually a splined insert to have the right fit per brand. The linkages operate in fact neat and tight and so are often available to change settings.
Suspension brackets
Beautifully machined 7065 T6 suspension system system brackets in anodized, laser etched. Precision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks construction
Composite steeringblocks along with 10 dgr C-hubs for accurate steering. Spring steel wheel-axles with big size bearings and bigger internal with precision threaded aluminium wheel-hubs with offset . Flanged and serrated wheel peanuts to ensure you'll not loose a wheel nut in a competition.
Front suspension
Durable oversized repaid suspension system system arms in strong composite nylon. On paid down component the initial shaped downstops screws are installed. The reduced shock-mounting pins are guaranteed with a little grubscrew from base.
front side anti-roll bar
The ballraced front part anti-roll club system, have a springtime metal fold wire, that will be led through diff-cases and runs in ballraced steel adaptors. The cable could be because of this paid down suspension system system supply, with a captured adjustable threaded pivotball, for exceptionally accurate and low friction procedure and easy tuning.
Shocktower and bodymounts front
4.5mm thick carbon shocktower with 5 top placement holes the shocks and and 6 holes for roll-center jobs. 1 found adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to reduce the angle of difference between the full total caster and steering airplane. Therefore you ought to have less bump steer and a truer steering Ackermann through the complete selection of suspension
Ackermann dishes
as a result of the design through the steering bell cranks whenever changing the Ackermann you won't wish to change your steering tie rods. You merely is only going to must adjust your end points on your own radio..
back once again suspension system system arms
Durable long oversized repaid suspension system system system fingers in strong composite nylon. In to the lower component the unique downstops screws are installed. The reduced shock-mounting pins are fully guaranteed with a tiny grubscrew from the bottom.
Mud-guards
Mud guards mount towards reduced suspension system system system arms, and will keep dirt definately not your anti-roll bars transmission and tires.
back uprights set up
Composite uprights with 3 top roll-center functions. Strong metal track-rods with L/R threading and strong balljoints to pre-set camber. Spring steel wheel-axles with big size bearings and bigger internal individuals with accuracy threaded aluminium wheel-hubs with offset . Rubber dustcovers inside backside to shield the cvd system and keep carefully the lubrication in. Flanged and serrated wheel peanuts to ensure you'll definitely perhaps not loose a wheel nut in a race.
Rear anti-roll club
The ballraced front part anti-roll club system, consist of a springtime steel bend cable, which led through diff-cases and runs in ballraced metal adaptors. The cable is linked to the reduced suspension system system supply, with a captured adjustable threaded pivotball, for incredibly accurate and low friction procedure.
Shocktower right back
4.5mm thick carbon shocktower, incorporated into the rear area for additional tightness, with 5 top positioning holes the shocks and 6 holes for roll-center functions.
Wingmount and bodymounts straight back
Composite back wing, with strong nylon adjustable rear bodymounts on wide body-support connection positioned far enough towards the trunk, to help the numbers in easiest way.
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted arranged making in spring-steel quality. This insures your opportunities to be able to complete an hour or so roughly lengthy most significant occasion, while fighting the lead. This relieves stress on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is liberal to turn to just about any angle without binding.
Shockabsorbers big-bore 16mm
elaborate Teflon coated threaded shockbodies with 4mm shock-rods. Tough anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks use big diameter membranes and big diameter o-rings and bushings to produce a supersmooth and leak-proof package. Big diameter pistons happen set up by a nut in the polished shock-rods tops. Open sort springtime retainer to permit dust out simple. The shock-shafts are protected by synthetic shoes.
RCM shock springs
Brief type colorcoded shock springs are provided the 1st standard set-up Springs are grinded flat top and base, and examined separately for stress and size.
Compact geardifferentials
actually lightweight gear differentials with incredibly smooth steel sintered gears, and steel shaft. Perfect sealing case with unique gasket and o-rings. Extremely light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 10T with connector operating in 2 oversized bearings . Drive ratio 4.3:1. This drive ratio provides amazing acceleration due to the low car fat. Their a sure success, to simply help enhance gas consumption
front part and back cvd-sets
Both front and right back captured driveshafts are increasingly used together with CVD system. Durable yet light springtime metal etched driveshafts with hard metal pins.
Spring steel transmission elements
the best and rear slim but strong springtime steel cardan shafts link the differentials .
Throttle and brake lever ball cups
Helps offer constant pulling in regards to the brake lever or carburetor should you not require the linkage perfectly aligned.
Piston Braking system
Provides more stopping power than you possibly might have ever really imagined before with a whole lot less servo energy. Is completely adjustable with 3 kinds of pistons, solid, O band type, springtime kind. Consequently you are able to adjust your bias or stopping feel towards taste more methods than formerly.
Fiber Glass disk brake system
Fiber Glass stopping system disks with oversized front disk.
Brake meal springs
Will keep the toilet distribute ready to accept guarantee un-wanted dragging in regards to the braking system discs.
Rushing clutch 4 - footwear
allows you to mix and match shoe materials evenly in pairs. Also provides more surface contact to ensure the engagement. 4 carbon shaped footwear are standard ( alu individuals optional).
Coil exhaust cable and alu mount
Helps help utilizing the front side to back motion the pipeline whenever chassis flex occurs. Aids in preventing problems for your exhaust gaskets.
Motor mount
Machined 7075 T6 aluminium engine mount, with component cooling-fins.
Fueltank 150cc
Splash basin on tank top, self centering vehicle's gas tank seal, The gas tank seal is angled to self guide its means into the bore concerning the tank. At the same time provides a seal concerning the chamfered and flat edges connected with seal, supplying consistent engine performance in one pit end to a different location. Integrated tank splash guard which helps while we are avoiding fuel from splashing on your own air-con filter in the event of an exceedingly excited pit guy.
Fueline and stoppers
Kit included topqualiity soft silicone fuelline allowing you to connect with tank, automobile and pipeline, and includes small composite stoppers to shut year fuelline whenever taking out fully tank, engine and or pipeline.
Tank with swivelling nipple and drifting clunk.
Utilizing the swivelling nipple you could adjust the angle that you'll need you fuel line traveling. Too the drifting clunk assists when you are unsightly. The clunk by gravity will fall back into the fuel, utilizing the freedom of silicone gasoline tubing.
Oversized Tank with adjustable amount.
utilizing the insertion of a straightforward screw and amount reducer you will have ROAR, IFMAR and just about every single other organizations appropriate tank volume.
Minimal profile ac filter
Centralized air conditioning equipment filter design to attenuate cab width and height. Versatile synthetic boot along with strong nylon example to steer the foam elements. Excellent dense foam airfilter elements to keep your machines clean inside.
Body
Serpent Truck human body , with movie and masking tape is roofed in the kit.
Back wing:
minimal variation strong back white aero back wing is roofed for great downforce and right line safety.
Oils and oil
The shock-oil, diff oil plus some grease involves meet with the standard set-up.
