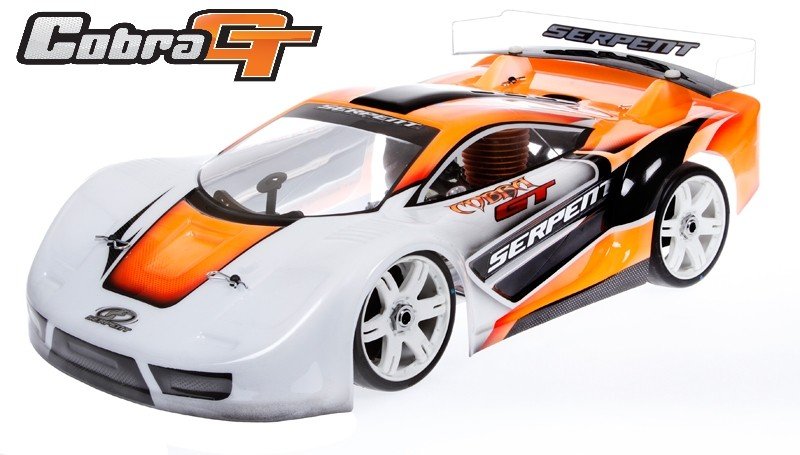

Serpent Cobra onroad 1/8 scale GT automobile, gaspowered variation. In line with the Cobra platform, designed to perform on asphalt songs.
Demands:
- course: 1/8 scale 4wd GT
- Purpose: high-end competition
- Suspension: entirely split
- Clutch: 4 footwear
- Gearbox: 2-speed SL8
- Drivetrain: cardan shafts, 2 gear diffs
- Fueltank: 150ccm
- Wheel-base: 328mm
- Width: 305mm
- handbook: color with create actions and exploded views
- Decals: 2 sheets
- not included: body, radio gear, engine-pipe, airfilter, tyres-wheels
Features:
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pockets create flex and or make lighter. Kick-up angle on front as need as a result of the race-rules. Countersunk holes. Slots to learn the best and back suspension system system mounts properly. Angled sides to enhance tightness. Begin pouches to find yourself in flywheel and 2-speed gearbox. Laser engraved Cobra GT company logo.
Bumper
Captured foam bumper set, with wide foam bumper and strong top and reduced bumper-plate.
Chassis stiffners
Composite stiffner front part and straight back, to produce extra tightness, but nevertheless enable some flex as required.
Central diskbrake system
Really low and centrally put brake system for low centre of gravity with ventilated glassfibre stopping system disks, and thick steel meals which wont fold under anxiety.
Radio-box
Composite radiobox that delivers space the lay-down steering servo and upright put brake-throttle servo. Adequate spacers are offered for proper suitable from the servos. The receiver and battery power are placed precisely underneath the big cap. The transponder might set up into the main part, between servo and receiverbox. Your installation including linkages are eradicated efficiently and fast at the same time, whenever cleansing the vehicle, or doing upkeep.
Servo fingers and linkages
The servo arms have actually really in fact a splined insert to really have the right fit per maker. The linkages operates actually clean and tight and are readily available to change settings.
Suspension brackets
Wonderfully machined 7065 T6 suspension system brackets in anodized, laser angraved. Pecision complement the nylon roll center inserts and pivot balls / pins.
Steeringblocks installation
Composite steeringblocks in conjunction with 10 dgr C-hubs for exact steering. Spring steel wheel-axles with big size bearings 8x18x5 and 15x21x4 with precision threaded aluminum wheel-hubs with +3 offset . Flanged and serrated wheel peanuts to make sure you will certainly perhaps not free a wheel nut in a race.
Front suspension system
Durable oversized paid down suspension system hands in strong composite nylon. In reduced component the unique downstops screws are create. The lower shock-mounting pins are guaranteed with a tiny grubscrew through the base.
Front part anti-roll club
The ballraced front side anti-roll club system, contain a spring metal fold cable, which led through diff-cases and run in ballraced metal adaptors. The cable is through the paid down suspension system system supply, with a captured adjustable threaded pivotball, for incredibly accurate and low friction procedure.
Shocktower and bodymounts front
4.5mm dense carbon shocktower with 5 top placement holes the shocks and and 6 holes for roll-center jobs. 1 situated adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to cut back the angle of difference between the total caster and steering airplane. Therefore you should have less bump steer and a truer steering Ackerman through the whole array of suspension system system
Ackerman plates
as a result of the design concerning the steering bell cranks whenever changing the Ackerman you may not require to modify your steering tie rods. You merely only will need adjust your end points all on your own radio..
Rear suspension system arms
Durable oversized paid down suspension system arms in strong composite nylon. On reduced component the initial downstops screws are installed. The paid down shock-mounting pins are guaranteed with a tiny grubscrew from base.
right back uprights arranged
Composite uprights with 3 top roll-center positions. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Spring metal wheel-axles with big size bearings 8x16x5 and 13x19x4 with accuracy threaded aluminum wheel-hubs with +3 offset . Rubber dustcovers in the backside to protect the cvd system and kepe the lubrication in. Flanged and serrated wheel peanuts to ensure that you will not loose a wheel nut in a race.
straight back anti-roll club
The ballraced front part anti-roll club system, include a spring metal fold wire, which can be frequently directed through diff-cases and operates in ballraced metal adaptors. The cable is with this paid off suspension system system supply, with a captured adjustable threaded pivotball, for actually accurate and low friction procedure.
Shocktower backside
4.5mm dense carbon shocktower, built-into the trunk area for additional tightness, with 5 top positioning holes the shocks and 6 holes for roll-center roles.
Wingmount and bodymounts right back
Composite right back wing, with strong nylon adjustable straight back bodymounts on wide body-support connection situated far enough toward rear, to greatly help the figures in simplest means. .
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted create making in spring-steel quality. This insures your opportunities to finish one hour very long primary occasion, while fighting the lead. This relieves pressure on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is liberal to take a look at just about any angle without binding.
Shock absorbers big-bore 16mm
Tricky Teflon coated threaded shockbodies with 4mm shock-rods. Ebony anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings inside. Shocks utilize large diameter membrames and large diameter o-rings and bushings to construct a supersmooth and leak-proof package. Large diameter pistons occur in position by a nut about the polished shock-rods tops. Start sort springtime retainer to permit dust out simple.
RCM surprise springs
fast type colorcoded surprise springs are provided the 1st standard set-up Springs are grinded flat top and base, and examined separately for anxiety and length.
Lightweight gear differentials
really compact gear differentials with extremely smooth metal sintered gears, and metal shaft. Perfect sealing situation with special gasket and o-rings. Actually light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector working in 2 oversized bearings 8x19x6 and ballbearing-13x19x4.
front side and right back cvd-sets
Both front part and right back captured driveshafts are increasingly being alongside CVD system. Durable yet light springtime steel engraved driveshafts with difficult steel pins.
Spring steel transmission components
the leading and rear slim but strong springtime metal cardan shafts connect the differentials along with the gearbox area.
motor mount
Machined 7075 T6 aluminium motor mounts with component ac fins.
Coil exhaust cable and alu mount
The tuned pipeline is securely fastened using the cols springtime and alumium owner.
Helps assistance with causing right back movement using this pipeline whenever framework flex occurs. Really really helps to avoid problems for your exhaust gaskets.
SL8 2-speed gearbox
SL8 gearbox comes right from Serpent 966 1/8 scale onroad vehicle. Actually light and compact design. Centrifugal springtime stuffed footwear system with big alu bell and flange with one-way bearing. Durable composite 2-speed gears.
2-speed clutch-housing with screw-on gears
Strong steel clutch-housing with precision machined threading, with hard coated aluminum screw on gears.
4-shoe clutch
Complete carbon 4 footwear clutch-set with medium type springs. An easy task generate with light and durable anodized aluminum flywheel.
150cc fueltank
Composite nyon fuel-tank with supersealing springloaded shock-cap, bronze sintered clunk sort filter and splash-side guard. Component features slots to include the supplied tube-guiders. Tank mounts to framework on longer composite articles with incorporated synthetic buffers enabling some movement and minmise fuel-foaming. The clunk system enables the engine to carry on operating if the automobile is up-side-down.
oils and oil
The shock-oil, diff oil and many oil comes to meet the conventional set-up.
