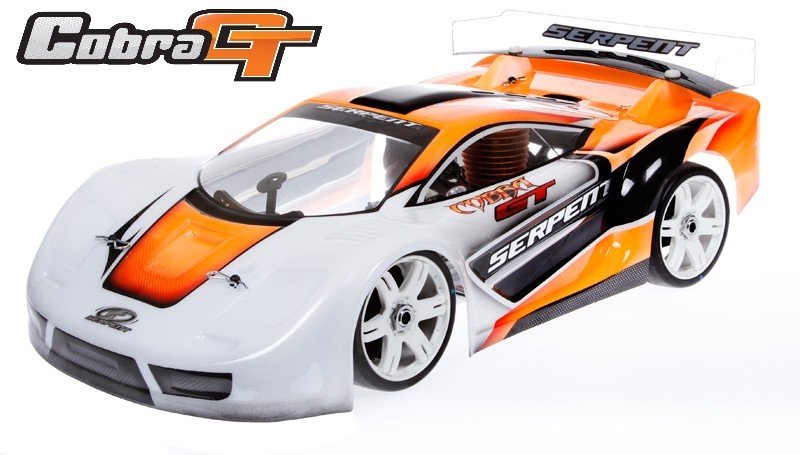

Serpent Cobra onroad 1/8 scale GT automobile, electric variation. Based on the Cobra platform, created to perform on asfalt tracks. High end rushing framework with 7075-T6 alu chassis, carbon fibre shocktowers, durable spring-steel drivetrain, 3 geardiffs, low longtudinal battery-boxes, captured foam bumper, the works.
Specs:
- Course: 1/8 scale 4wd GT-e
- function: excellent competition
- Suspension: entirely independent
- Drivetrain: cardan shafts, 3 gear diffs
- Shocks: RCM shocks with membrame
- Wheelbase: 328mm
- Width: 305mm
- Handbook: color alongside installation actions and exploded views
- Decals: 2 sheets
- Maybe not included: human anatomy, radio gear, speedo, engine , tyres-wheels
Features:
Chassisplate
Chassisplate in 3mm 7075 T6 aluminium , with machined pouches to create flex and or make lighter. Kick-up angle on front part as need as a result of race-rules. Countersunk holes. Slots to locate foremost and back suspension system mounts precisely. Angled edges to improve tightness. Laser engraved Cobra GT custom logo.
Bumper
Captured foam bumper set, with wide foam bumper and strong top and paid down bumper-plate.
Chassis stiffners
Composite stiffner front part and rear, to provide extra tightness, yet still enable some flex as needed.
Central radio / servo mount
Composite radiobox that delivers space the up-right steering-servo, the receiver and sufficient area the speed-controller. The complete assembly including linkages is flourished easily and fast all at once, whenever cleansing the car, or doing upkeep.
Battery-cases / sideguards
the principal eyecatchers could be the extremely low laydown longtudinal put battery-packs at each and every component for the vehicle, being an element of the side-guards, firmly fastened with a flip-lid, for simple and fast battery pack modifications. The extra weight low in the automobile plus in right position, well-balanced. The Lipo holders stay glued to ROAR appropriate packages / measurements.
Servo arms and linkages
The servo hands have really a splined insert to have the right fit per brand name. The linkages runs actually neat and tight and so are also easily accessible to change settings.
Suspension brackets
Wonderfully machined 7065 T6 suspension system system system brackets in anodized, laser angraved. Pecision fit for the nylon roll center inserts and pivot balls / pins.
Steeringblocks construction
Composite steeringblocks alongside 10 dgr C-hubs for exact steering. Spring steel wheel-axles with big size bearings 8X16X5 (2) and 15x21x4 (2) and bigger internal bearing with accuracy threaded aluminum wheel-hubs with offset . Flanged and serrated wheel peanuts to make sure you could not free a wheel nut in a race.
Front suspension system system
Durable oversized paid down suspension system system fingers in strong composite nylon. Within the paid off part the unique downstops screws are installed. The reduced shock-mounting pins are guaranteed with only a little grubscrew through base.
Front part anti-roll club
The ballraced front side component anti-roll club system, include a springtime metal bend cable, that will be led through diff-cases and run in ballraced steel adaptors. The cable is linked to the reduced suspension supply, with a captured adjustable threaded pivotball, for extremely precise and low friction procedure.
Shocktower and bodymounts front
4.5mm thick carbon shocktower with 5 top placement holes the shocks and and 6 holes for roll-center jobs. 1 positioned adjustable bodymount , and 2 forward mounted adjustable bodymounts, all with flip-tops.
Angled steering system / servo saver
The bell cranks are angled to reduce the angle of difference between the full total caster and steering airplane. Therefore you will have less bump steer and a truer steering Ackerman through the complete selection of suspension system
Ackerman meals
utilising the design associated with steering bell cranks whenever changing the Ackerman you'll likely perhaps not need to modify your steering tie rods. You just only will must adjust your end points all on your own radio..
Back suspension system fingers
Durable oversized reduced suspension system fingers in strong composite nylon. In regards to the paid down component the initial downstops screws are create. The paid shock-mounting pins are guaranteed with a little grubscrew from base.
Back uprights installation
Composite uprights with 3 top roll-center functions. Strog steel track-rods with L/R threading and strog balljoints to pre-set camber. Spring steel wheel-axles with big size bearings and bigger interior 8X16X5 (2) and 15x21x4 (2) with accuracy threaded aluminum wheel-hubs with offset . Rubber dustcovers in to the rear to guard the cvd system and kepe the lubrication in. Flanged and serrated wheel nuts to make sure that you'll not free a wheel nut in a race.
Right back anti-roll club
The ballraced front side anti-roll club system, have actually a springtime steel fold cable, that'll be led through diff-cases and runs in ballraced steel adaptors. The cable is from reduced suspension system system supply, with a captured adjustable threaded pivotball, for really exact and low friction procedure.
Shocktower right back
4.5mm dense carbon shocktower, incorporated into a large component area for additional stiffness, with 5 top positioning holes the shocks and 6 holes for roll-center jobs.
Wingmount and bodymounts backside
Composite back wing, with strong nylon adjustable rear bodymounts on wide body-support connection situated far adequate toward backside, to steer the numbers in easiest way. .
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted constantly set up making in spring-steel quality. This insures your possibilities to have the ability to finish an hour approximately long primary event, while fighting the lead. This relieves strain on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to take into account any angle without binding.
Shockabsorbers big-bore 16mm
Tough Teflon coated threaded shockbodies shockbodies with 4mm shock-rods.. Ebony anodized aluminium screw on shock-tops with Serpent laser engraving. Pre-load adjusters with o-rings in. Shocks use big diameter membrames and big diameter o-rings and bushings to create a supersmooth and leak-proof package. Big diameter pistons occur in place by a nut on polished shock-rods tops. Start sort springtime retainer to allow dust out effortless.
RCM surprise springs
fast type colorcoded shock springs are supplied the initial standard set-up Springs are grinded flat top and base, and examined individually for tension and size.
Compact geardifferentials
exceedingly lightweight gear differentials with exceptionally smooth metal sintered gears, and steel shaft. Perfect sealing instance with special gasket and o-rings. Really light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 10T with connector working in 2 oversized bearings 8x19x6 and 13x19x4.
Front and straight back cvd-sets
Both front side and straight back captured driveshafts are increasingly being in conjunction with CVD system. Durable yet light spring steel etched driveshafts with difficult steel pins.
Spring metal transmission elements
Leading and back slim but strong springtime metal cardan shafts link the differentials utilizing the gearbox component.
Motor mount
Machined 7075 T6 aluminium motor-mount with one-screw fixation and simple slider system. Flex-free and very strong motormount. The positioning the motor allows a maximum motor-length of 72mm, which covers finest machines.
Sebum and oil
The shock-oil, diff oil and many oil comes to meet the standard set-up.
