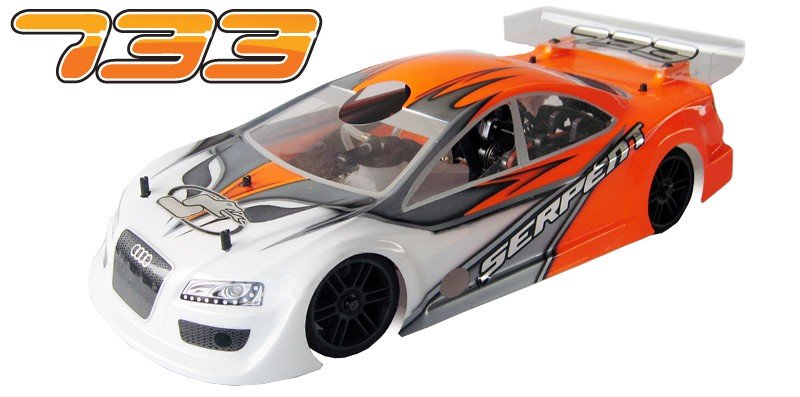

The Serpent 733 has a new, actually distinct available design and sets unique needs in 1/10 scale race-chassis design. Numerous revolutionary and practical solutions are build to the unique design, to help make setup, set-up, rushing and upkeep a joy.
Needs:
- course: 1/10th Scale 200mm
- Purpose: 200mm Touring vehicle Track Racer
- Chassis: 3mm aluminum, 7075 aerospace quality, CNC machined
- Suspension: separate increase wishbone suspension
- Broadcast meal: 2.5mm carbon fiber, CNC machined
- Shock absorbers: Pre-assembled RCCX surprise absorbers
- Gas tank: 75cc design with 'AFL' tank lid
- Drive system: 4wd through kevlar strengthened timing belts
- Clutch system: Centax-IIwe clutch system
- Front axle: Gear Differential (Optional A good way axle )
- Back axle: Gear Differential
- Gearbox: Lightweight 2-speed with interchangeable fine pitch gears
- Body fat: 1.695kg (centered on radio gear)
- Max. cost: 105km/h +
- Acceleration: 0-90km/h 3.0 moments
- guidelines: Full color guide, reference guide
- Perhaps maybe not included: motor and pipeline, human body, radio equipment, battery power, tires
Features:
Geometry
Brand new geometry and roll-centers, reduced center of gravity and modified weight-positioning for improved hold and better stability.
Adjustable caster, camber, toe-in, width, wheelbase front side and back, ride-height, roll facilities and many more.
Front end brackets
Alu ahead paid down bearing blocks and suspension system brackets, with integral anti-roll club holders and integral alu center bearing block. The gear-diff is seated in eccentric nylon bushings to build the belt-tension. The appropriate position ( selection of 4) for the eccentric bushings are recognised through outside, for easier re-assembly. The reduced front end brackets have actually actually metal pins pre-mounted which slide in to the slots in framework, for exact placement.
Rear-end brackets
in fact available design split kind buttocks setup. The supersmall and light gear-diffs mount really low inside vehicle, in precision machined split kind alu brackets. The gear-diff is seated in eccentric nylon bushings to build the belt-tension. The appropriate destination ( selection of 3) with this eccentric bushings might be recognised through the outside, for easier re-assembly.
the low end brackets have actually steel pins pre-mounted which autumn in the slots in framework, for exact placement.
belly muscles available design in reality departs countless room for maintenance, cleaning and air-con.
Framework
The 3mm framework comprises of precision machined aerospace quality 7075 T6 alu. Countersunk with chamfered edges. Some additional machining where necessary for the gear, the engine with airscoop for cooling, the flywheel and several extra room allowing the moutning the transponder inside the fueltank. Abdominal muscles shut design of framework produces the right amount of rigidity inside car. More flex-control emerges with all the current alu stiffners on framework. A laser-angraved custom logo would be the finishing touch.
motor install
Mono-type engine mount, for sucure sitting pertaining to motor. Additional coolingfins for better heat-dissipation. The product permits accurate keeping of clutch and 2-speed gearbox.
Chassis stiffners and flex control
the main chassis-stiffner will be the nylon one that's installed relating to the radioplate as well as remaining 2-speed bracket. 2 machined alu framework stiffners are put on chassis, underneath the engine. A corner one, using the longer feet, is either fastened with only 2 pertaining to 4 screws, or with 2 or all 4. exact same for the frtn one. The greater screws are fastened the less flex is supposed become.
suspension system system front component
amazing front top and front side reduced wishbones, created from superb M-type nylon materials and still have a fantastic fit concerning the hardened metal pivot pins. The reduced wishbones homes the hard-coated alu pivot-ball, which operates leading anti-roll club.
The wheelbase is changed inside front component using the small caster-spacers right in front or straight back of reduced front part wishbone. In top ofcourse modification caster in much the same. The roll-center adjustments could possibly be created by changing the interior pivot inserts for an inferior, medium or maybe more spot, with regards to the situation.
Front upper bracket
The nylon top bracket, connect leading alu bearing obstructs, holds the carbon dietary fiber shocktower and top hinge pin inserts and incorporates the downstops. To get the diff takes 4 screws simply.
Steeringblocks
The kit is sold with the strong prooven steeringblocks associated with the 720, with off-set 0. Offset 1 can be acquired as choice.
The steeringblocks mount to your wishbones with light-weight coated alu 8.5mm pivotballs, as well as make usage of the nylon ball-cups for an ultra light and ultra smooth suspension system procedure
Anti-roll club front part
Ball-raced cable kind front component anti-roll club system, far better and easier to tweak. Operated by linkages that mount to alu pivotballs regarding ower front hands.
2.5mm is standard, additional options. 1.8, 2.2 and 2.8
Shocktower front component
Carbon fibre front side shocktower in 3.2mm with 4 functions the front shocks. Includes holes to put in the next bodymount.
Shocks
Pre-assembled RCCX shock-sets. Brief kind both front side and straight back, additionally brief springs front part and straight back. Combined with the 2009 modification on rod-support and silicone x-ring for supersmooth shocks. SS-steel shock-rods, accuracy machined covered shock-housings, foam bleeders, accuracy moulded nylon pistons and shock-parts. The springtime pre-load nut has a silicone o-ring inside to finish undesirable modification.
utilize 1000 Cst (40W) shock-oil as enclosed for standard set-up both front part and right back.
Gear-differential.
Acutely little and light gear differential, seated as little as feasible on 733. Equivalent gear-diff may be used to the front side and backside of vehicle, just various pullies are setup. High quality, precision machined , hardedned gears, alongside SS-steel shafts, create a supersmooth gear-diff. The gear-cases are sealed with a captured o-ring. The SS-steel precison machined outdrives are lightened to decrease rotating mass further. For standard set-up use 80.000 Cst front part and 30.000 Cst back oil, as supplied.
Its quite simple and quick for you should the diffs through the vehicle.
Centax
The Serpent 733 includes the famous Centax clutch ( an original Serpent innovation) . The ultra reliable Centax III WC variation comes with precison machined, hardcoated alu screw on gears ( laser etched) installed on a hardened steel clutch-bell. A very little and light 31mm hardcoated alu flywheel with precision put up metal pins. Race developed clutch footwear and flyweights, alongside a difficult Centax springtime, create a fantastic working clutch for amazing accelleration and durability.
Ball-joints
Quality nylon ball-joints for accuracy fit on pivot balls. All balljoints of car are on one larger framework within the kit. Some have actually TOP as indicator, to exhibit which approach to mount them for most easily of use procedure.
Gearbox
Ulta smooth gear-changes get by the WC sort Light-Compact (LC) automatic 2-speed gearbox, which combines totally with all the current Centax III-WC system. Precision machined 2-speed bell and one-way adaptor, coupled with durable centrifugal footwear connected to the SS-steel polished adaptor. Balanced SS-steel 2-speed layshaft.
Belt tensioner
Alu CNC machined belt-tensioner bracket, that may install over the top or underneath the radioplate. Ballraced.
Driveshafts / wheel-adaptors
leading end has SS-steel CVD system, with laser etched, ultra slim and light driveshafts, along with durable wheel-axles and precision machined alu hex wheel adaptors.
a large part end has SS-steel dogbones also thin/lightweight, yet durable, to face the beating linked to the increasing horsepower and grip-levels.
Belts
Kevlar 4mm wide re-inforced drive-belts. Orange PU kind belts are standard (the black/brown low friction artificial kind are optional, however for the very first batch the artificial folks are employed).
Fueltank
Low-mounted 75cc fueltank with bronze sintered filter with AFL-cap, relocated more towards front part while offering a mounting-position for AMB transponder on base. Little component indent to supply space the throttle lever. Tank-inserts are screw-mounted inside to diminish the articles if required. Tanks mounts on 3 alu posts, with synthetic covers, capped with silicone o-ring and small videos.
Roll-bar
Asymetric roll club with built-in sleeve the fuel-cap musical organization. The roll club increases also as end-stop for the fuel-cap, to avoid the limitation to start in excess.
Pipe-mount
Machined alu pipe-mount holds the spring-wire , which is attached to the radioplate. Grub-screw holds cable arranged.
Bumper
The revolutionary and attractive brand new bumper sports a split type foam bumper, along with the angled top bumper produces a really sturdy front end, to soak up the result of crashes ( if any). ( A wider foam bumper comes as optional.)
Servo-saver
Ball-raced servo-saver design, with all the metal servo saver shaft connected to the framework just, spring-loaded with pre-tension nut and simple inserts to improve Ackermann. The linkages to your steering-servo are fast and angles are smooth / direct and easy to get usage of, as installed within the radioplate.
With all the ultra strong SS-steel trackrods and smooth ball-joints, the installation produces a fruitful and responsive steering-system.
Pullies
New gear-ratio alongside fresh pullies with little sideholes to allow dust away effortlessly. Friction free and incredibly smooth procedure.
Front Diff - 35
Backside Diff - 40
Middle Pulley - 18
Center Part Pulley - 21
Back Side Pulley - 21
Brake Pulley - 20
Drive ratio 1.0117
center shaft
the guts shaft owner is beautifully integrated into leading part left alu bracket and guaranteed with 3 screws. Thus giving strong, flex-free guidance towards the SS-steel center shaft.
2-speed shaft brackets
the 2 alu brackets to keep the 2-speed shaft are real artwork. By isolating them from buttocks brackets, it makes many available room to exert effort on car and offers better means of cooling too. In top the brackets provide the ball-raced backside anti-roll club, that will be seated in brackets with small metal adaptors and high rate bearings. The left one also houses the ball-raced brake-cam and supports the framework stiffner too. Multi-functional.
Shocktower rear
4mm dense carbon fibre rear shocktower with 6 mounting jobs the shocks. The holes sit in such method, that after changing to to a new opening, throughout the shocks can stay the identical. The shocktower includes holes to install the tank-cap strap, and mounting functions a corner body mounts.
Uprights
fresh uprights to complement the most recent geometry. Licenses 2 mounting functions inside top, internal or external along with the kit comes detailed with conical spacers to alter roll-center.
back suspension system
The new back reduced wishbones can be utilized both left and appropriate. The anti-roll club linkage has 2 mounting jobs to pick from. The rear carbon camber bracket in 4mm thick product , has 9 jobs available, 5 internal and 4 external each component. The roll-center changes are manufactured by changing the internal pivot inserts at a lower cost, medium or maybe more spot, based on the situation.
Wheel-base are changed utilizing the casterclips ahead or back the wishbone on lower pin.
Braking System
an exceptionally available and cool stopping system system, with 2 big ventilated metal disks, with one machined alu cooling-fin during the center ( in addition used successfully in the Serpent 966) . The brake-system is set up low inside car for better center of gravity. Spring loaded competition pads that wear accuracy machined bushings. The competition brake-pads you will need to utilize with pre-baked friction item ( no further glueing ) that continues and will be offering amazing braking power with exemplary stopping system feeling / feedback. Reaches right heat quickly, doesn't also have diminishing which is beneficial in the pouring rain too. The nylon stopping system lever, that runs the hard-anodised ballraced brake-cam, has 2 mounting jobs the linkage. The linkage runs really directly to the servo-arm.
Radioplate
the fast and slim radioplate is made from 2.5mm high-quality carbon fibre product and advertisements toward overall tightness linked to automobile. The complete design is made in such method your complete radioplate with tank, roll-bar, belt-tensioner and all forms of electronic devices comes for the car at one time. Merely introduce the steeringlever and launch 7 screws. Perfect for cleansing and maintenance. All wiring extremely quick and compact to mount. Appropriate aligned servo-linkages to both braking system and throttle levers.
Radio-gear and battery pack mounting
The 733 provides a nicely produced side-bracket-assembly offering you mounting space the receiver, the switch, the antenna and both servos. The receiver adopts the nylon package with embossed Serpent logo design. Regarding other the primary tank, the battery power ( Lipo or regular pack) is set up to a carbon fiber bracket (shrink-foil/tape) , which again mounts on radioplate with nylon spacers.
This really compact design means you need to use excessively brief cables and when arranged properly hardly any cables are noticeable from outside, but household well protected within the vehicle. The steering-servo bracket provides another mounting position ( 2 holes) the transponder whenever is prefered in the place of the paid down mounting devote tank.
Spacers are offered to precisely install the servos, including 3 kinds servo levers to fit all major brands.
Bearings
High rate stainless bearings through the vehicle, lightweight and lubricated with a superior quality Shell bearing oil. High-quality one-way bearing the 2-speed adaptor.
