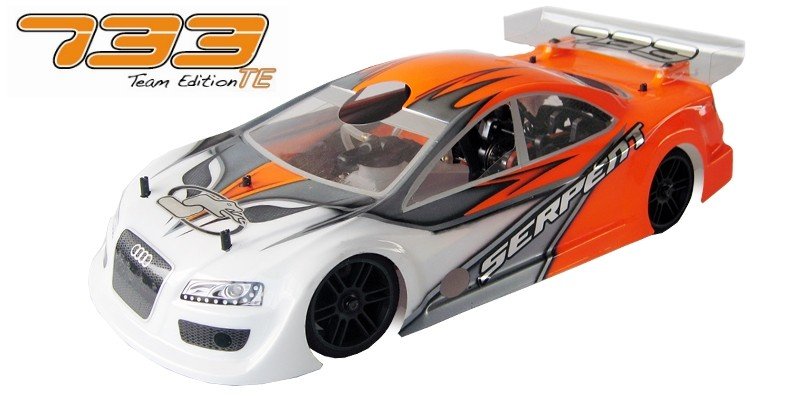

The Serpent 733 has a fresh, acutely distinct open design and sets new needs in 1/10 scale race-chassis design. Numerous revolutionary and practical solutions are build to your unique design, to generate construction, set-up, rushing and upkeep a joy.
Specs:
- Course: 1/10th Scale 200mm
- Purpose: 200mm Touring automobile Racer
- Chassis: 3mm aluminum, 7075 aerospace quality, CNC machined
- Suspension: separate enhance wishbone suspension system
- Broadcast dinner: 2.5mm carbon soluble fiber, CNC machined
- Shock absorbers: RCCX shock absorbers
- Gas tank: 75cc design with brand new lid
- Drive system: 4wd through kevlar strengthened timing belts
- Clutch system: Centax-IIwe clutch system
- Front axle: Gear Differential (Optional an effective way axle )
- back axle: Gear Differential
- Gearbox: Lightweight SL6 2-speed with interchangeable fine pitch gears
- body weight: 1.695kg (considering radio gear)
- Max. price: 105km/h +
- Acceleration: 0-90km/h 3.0 moments
- instructions: color guide, reference guide
- Maybe maybe not included: motor and pipeline, human body, radio gear, battery pack, tires
Features:
Fueltank
Low-mounted 75cc fueltank with bronze sintered filter with unique limitation, relocated more towards front side and you will be supplying a mounting-position for AMB transponder on base. Little part indent to provide space the throttle lever. Tank-inserts is screw-mounted inside to decrease the articles if required.
Tanks mounts on 3 alu articles, with synthetic covers, capped with silicone o-ring and small videos.
Roll-bar
Asymetric roll club with built-in sleeve the fuel-cap musical organization. The roll club increases moreover as end-stop the fuel-cap, in order to avoid the limitation to begin past the right limitation.
Pipe-mount
Machined alu pipe-mount holds the spring-wire , that is from the radioplate. Grub-screw holds cable arranged.
Bumper
the newest and appealing new bumper tasks a split kind foam bumper, plus the angled top bumper creates an exceptionally sturdy front end, to absorb the consequence of crashes ( if any). ( A wider foam bumper comes as optional.)
Servo-saver
Ball-raced servo-saver design, combined with metal servo saver shaft connected to the framework only, spring-loaded with pre-tension nut and simple inserts to change Ackermann. The linkages to your steering-servo are brief and angles are smooth / direct and simple to access, as installed above the radioplate.
With the ultra strong SS-steel trackrods and smooth ball-joints, the installation creates an effective and responsive steering-system.
Pullies
brand new gear-ratio in conjunction with unique pullies with tiny sideholes to allow dirt out effectively. Friction free and incredibly smooth procedure.
Front Diff - 35
backside Diff - 40
center Pulley - 18
center Side Pulley - 21
Back part Pulley - 21
Brake Pulley - 20
Drive ratio 1.0117
center shaft
the middle shaft owner is beautifully incorporated inside front left alu bracket and guaranteed with 3 screws. This allows strong, flex-free guidance towards the SS-steel center shaft.
2-speed shaft brackets
The 2 alu brackets to help keep the 2-speed shaft are real artwork. By separating them from tail brackets, it makes numerous available room towards any office on automobile and better method of air-con too. In top the brackets provide ball-raced back anti-roll club, that'll be seated to the brackets with little steel adaptors and higher rate bearings. The left one additionally houses the ball-raced brake-cam and supports the framework stiffner too. Multi-functional.
Shocktower rear
4mm dense carbon fiber right back shocktower with 6 mounting functions the shocks. The holes sit such means, that after changing to to some other space, how big the shocks can stay similar. The shocktower includes holes to set up the tank-cap band, plus mounting jobs the rear human anatomy mounts.
Uprights
brand new uprights allowing with this new geometry. Licenses 2 mounting roles in the top, internal or outside whilst the kit comes detail by detail with conical spacers to improve roll-center.
back suspension system system system
the modern straight back reduced wishbones can be used both left and appropriate. The anti-roll bar linkage has 2 mounting jobs available. A corner carbon camber bracket in 4mm thick product , has 9 jobs to pick from, 5 internal and 4 outer each part. The roll-center alterations are formulated by changing the internal pivot inserts for a reduced, medium or more destination, based on the situation.
Wheel-base is changed utilizing the casterclips into the front part or straight back of wishbone on paid down pin.
Brake
an incredibly available and cool braking system system. The brake-system is installed suprisingly low to the automobile for better center of gravity. Spring loaded competition pads that fall on precision machined bushings. Your competition brake-pads are going to use with pre-baked friction item ( just forget about glueing ) that persists while offering amazing braking energy with exceptional stopping system feeling / feedback. Hits right temperature quickly, doesn't always have diminishing and it's also effective in the pouring rain too. The nylon braking system lever, that runs the hard-anodised ballraced brake-cam, has 2 mounting functions the linkage. The linkage operates exceptionally right to the servo-arm.
Radioplate
the brief and narrow radioplate is made of 2.5mm exceptional carbon dietary fiber product and ads toward overall tightness about the vehicle. The entire design is made in such means that the whole radioplate with tank, roll-bar, belt-tensioner and all kinds of electronics occurs of automobile at one time. Merely launch the steeringlever and launch 7 screws. Perfect for cleansing and maintenance. All wiring extremely brief and compact to mount. Straight aligned servo-linkages to both braking system and throttle levers.
Radio-gear and electric batteries mounting
The 733 provides a neatly created side-bracket-assembly that provides mounting area the receiver, the switch, the antenna and both servo?s. The receiver switches in to the nylon industry with embossed Serpent custom logo design. About the other side for the tank, the battery power ( Lipo or regular pack) is installed to a carbon fiber bracket (shrink-foil/tape) , which yet again mounts towards the radioplate with nylon spacers.
This acutely compact design means you should use really brief cables whenever mounted properly little cables are noticeable through the exterior, but home well protected within the car. The steering-servo bracket provides another mounting spot ( 2 holes) the transponder if is prefered in the place of the reduced mounting destination in the tank.
Spacers are supplied to properly install the servos, alongside 3 kinds servo levers to support all major brands.
Bearings
tall speed steel bearings through the entire vehicle, lightweight and lubricated with a top quality Shell bearing oil. Excellent one-way bearing the 2-speed adaptor.
Fasteners
Allen type top quality metal screw through vehicle.
Belts
Kevlar 4mm wide re-inforced drive-belts. Kevlar type belts are standard (the black/brown low friction synthetic kind are optional) .
Driveshafts / wheel-adaptors
Leading end has SS-steel CVD system, with laser etched, ultra slim and light driveshafts, and durable wheel-axles and accuracy machined alu hex wheel adaptors.
The trunk end has SS-steel dogbones additionally thin/lightweight, yet durable, to handle the beating the increasing horsepower and grip-levels. The Direct Link System (DLS) can be utilized as shown, nevertheless the camber bracket is universal, which means you might run in standard structure.
Geometry
brand-new geometry and roll-centers, paid down center of gravity and modified weight-positioning for improved grip and better protection.Adjustable caster, camber, toe-in, width, wheelbase front and back, ride-height, roll facilities and more.
Front end brackets
Alu ahead paid down bearing blocks and suspension system brackets, with integral anti-roll club holders and integrated alu center bearing block. The gear-diff is seated in eccentric nylon bushings to produce the belt-tension. The correct spot ( choice of 4) associated with the eccentric bushings are recognised from outside, for easier re-assembly. The reduced front component end brackets have actually really metal pins pre-mounted which put on the slots in framework, for accurate placement.
Rear-end brackets
really available design split kind buttocks put up. The supersmall and light gear-diffs mount suprisingly low in the car, in accuracy machined split type alu brackets. The gear-diff is seated in eccentric nylon bushings to come up with the belt-tension. The correct place ( range of 3) of eccentric bushings might be recognised through area, for easier re-assembly.
The paid off buttocks brackets have steel pins pre-mounted which slip towards slots inside framework, for accurate positioning.
The available design really actually leaves countless space for upkeep, cleansing and air conditioning.
Framework
The 3mm framework is composed of precision machined aerospace quality 7075 T6 alu. Countersunk with chamfered edges. Some extra machining in which necessary for the apparatus, the motor with airscoop for ac, for the flywheel and many additional area to allow the moutning the transponder under the fueltank. The closed design of framework produces the greatest degree of rigidity in to the car. More flex-control exists as a result of alu stiffners on framework. Elaborate anodised framework is optional.
Motor mount
Mono-type engine mount, for sucure seating of motor. Additional coolingfins for better heat-dissipation. These devices allows exact alignment concerning the clutch and 2-speed gearbox.
Chassis stiffners and flex control
the main chassis-stiffner would be the ball-joint pole which can be installed concerning the radioplate along with the staying 2-speed bracket.
suspension system front component
amazing front side top and front paid down wishbones, created from superb M-type nylon materials and have outstanding fit about the hardened metal pivot pins. The lower wishbones homes the hard-coated alu pivot-ball, which operates one of the keys anti-roll bar.
The wheelbase could possibly be changed into the front side using the little caster-spacers ahead or right back pertaining to reduced front part wishbone. In top ofcourse modification caster in the same way. The roll-center changes might be created by changing the interior pivot inserts for a diminished, medium or more destination, based on the situation.
Front top bracket
The nylon top bracket, link the key alu bearing obstructs, holds the carbon dietary fiber shocktower whilst the top hinge pin inserts and includes the downstops. To search for the diff takes 4 screws just.
Steeringblocks
The kit comes using the strong prooven steeringblocks with off-set 0. Offset 1 can be had as choice. The steeringblocks mount towards wishbones with light-weight coated alu 8.5mm pivotballs, and make use of the nylon ball-cups for an ultra light and ultra smooth suspension system system procedure.
Anti-roll club front part
Ball-raced cable kind forward anti-roll bar system, better and much more straightforward to change. Operated by linkages that mount to alu pivotballs concerning the ower front side hands.
2.5mm is standard, additional choices. 1.8, 2.2 and 2.8
Shocktower front part
Carbon fibre front side shocktower in 3.2mm with 4 functions leading shocks. Includes holes to mount the next bodymount.
Shocks
Pre-assembled RCCX shock-sets. Brief type both front part and back, additionally brief springs front part and backside. Using the 2009 modification on rod-support and silicone x-ring for supersmooth shocks. SS-steel shock-rods, accuracy machined coated shock-housings, foam bleeders, precision moulded nylon pistons and shock-parts. The springtime pre-load nut has a silicone o-ring inside to prevent undesired modification.
use 1000 Cst (40W) shock-oil as enclosed for standard set-up both front part and back.
Gear-differential.
Acutely little and light gear differential, seated only feasible in 733. Comparable gear-diff can be employed inside front and backside linked to the car, just different pullies are set up. Good quality, precision machined , hardedned gears, along with SS-steel shafts, create a supersmooth gear-diff. The gear-cases are sealed with a captured o-ring. The SS-steel precison machined outdrives are lightened to diminish rotating mass further. For standard set-up use 80.000 Cst front side and 30.000 Cst right back oil, as supplied.
Its quite simple and fast to simply simply take the diffs out from the car.
Centax
The Serpent 733 comes with the famous Centax clutch ( an authentic Serpent innovation) . The ultra dependable Centax III WC variation includes precison machined, hardcoated alu screw on gears ( laser etched) installed on a hardened steel clutch-bell. A tremendously tiny and light 31mm hardcoated alu flywheel with precision put up steel pins. Race developed clutch footwear and flyweights, and a difficult Centax springtime, to generate a great working clutch for amazing accelleration and durability.
Ball-joints
quality nylon ball-joints for precision fit on pivot balls. All balljoints connected with vehicle just take one larger framework in the kit. Some have actually in fact TOP as indicator, showing which direction to install them for most readily useful procedure.
Gearbox SL6
Ulta smooth gear-changes are furnished by the SL6 automated 2-speed gearbox, which combines completely with all the current Centax-3 system. Amazing gears for SL8, new design/ type, really durablePrecision machined 2-speed bell and one-way adaptor, along with durable centrifugal footwear installed regarding SS-steel polished adaptor. Balanced SS-steel 2-speed layshaft.
Belt tensioner
Alu CNC machined belt-tensioner bracket, which will install extraordinary or beneath the radioplate. Ballraced.
