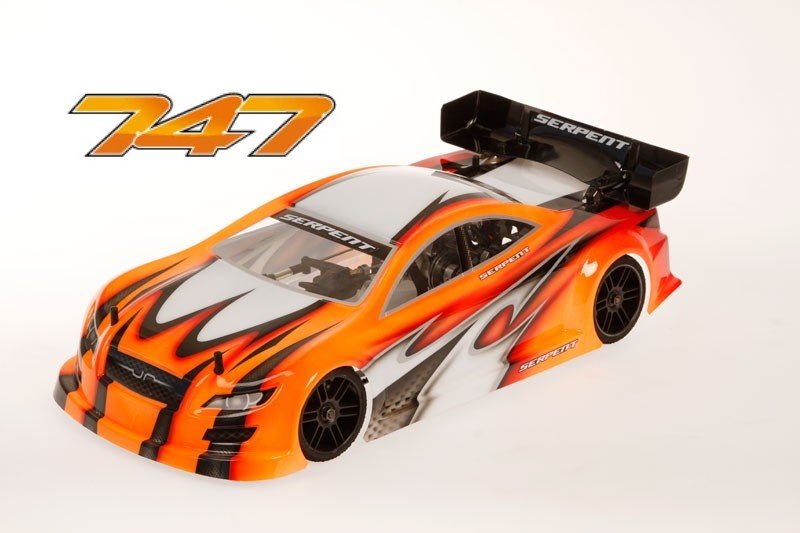

Serpent 747 1/10 scale 4wd gaspowered rushing vehicle.
Specs:
- Class: 200mm 1/10th Scale 200mm
- Function: 200mm Touring automobile Racer
- Chassis: 3mm aluminum, 7075 aerospace quality, CNC machined
- Suspension: Independent enhance wishbone suspension system
- Radio plate: 2.5mm carbon fiber, CNC machined
- Shock absorbers: RCM surprise absorbers
- Gas tank: 75cc design
- Drive system: 4wd through kevlar strengthened timing belts
- Clutch system: Centax-True movement clutch system
- Front axle: Gear Differential v2 (Optional a great way axle )
- back axle: Gear Differential v2
- Gearbox: Lightweight SL6 2-speed with interchangeable fine pitch gears
- Body fat: 1.595kg (impacted by radio gear)
- Max. rate: 105km/h +
- Acceleration: 0-90km/h 3.0 seconds
- Guidelines: color directions, guide guide
- Not included: motor and pipeline, body, radio gear, battery power, tires
Features:
- 4wd beltdriven
- 2-speed SL6 gearbox
- Real movement Centax clutch
- RCM shocks
- Flex-control front component and back
- New geometry front side and rear
- 3mm framework with fat sliders
- Topquality alu components
- Spring metal transmission parts
- Minimal and light stopping system
Chassis
Symmetrical chassisplate also for flex and torsion, in 7075 T6 aluminium, anodised and laser etched. Chamfered sides to have extra ground approval whenever cornering and countersunk holes. Central slots to install fat, which could slip to the right place and guaranteed. Radioplate
The 2mm carbon dietary fiber radioplate has many functions. It holds the fueltank put up which is mounted on 3 alu posts in synthetic. Regarding right hand part the receiver mounts to a well shaped carbon fiber dinner that links tot eh radiotray, sqeezed in right between gear and tank. The throttle/brake servo mounts right toward radioplate with nylon spacers along with steeringservo is rigidly set up on aluminium posts towards the radioplate.
Front flex system
the best an element of the radioplate includes a flex-control system. You are going to either run the 747 with foxes front end, or simply you can loosen / remove some from front top radioplate screws, and acquire a grip regarding the flex as a result of the 2 topmounted linkages.
Battery-holder
Carbon fibre battery-holder put into the center of your tank and pipeline, to find the best fat stability. The battery power is easy to strap straight down with tape towards bracket.
Fueltank
Durable 75ccm nylon fueltank with clear item to effortless see fuel-content. Large springloaded quick-fill limitation with seal with large tank opening for fast and easy refills. The bronze sintered filter could well keep fuel neat ensuring tank will clear till last drop if required. The fueltanks has some little walls inside to stabilise the gasoline, and direct it towards the filter. Some special made inserts can be installed inside to scale back articles as required. Fueltank sits suprisingly reduced in the vehicle for low center of gravity. Fueltank is mounted with videos on 3 alu articles with synthetic buffers.
RCM shocks
extreme Teflon coated threaded shockbodies in quality aluminium. Supersmooth o-ring / bushing package, to guide and seal the spring-steel piston rods. Precision moulded pistons present 3 types. Threaded pre-load shocknuts in alu with o-ring inside. Light but strong nylon spring-cups. Tight fitting ball-joints in top and base.
Front bumper
Newly created paid down front bumper with aerodynamic results and better security. Some areas of the low bumper are cut willing to accept create more steering. The top of bumper / bodymount owner connect with the low someone to produce an excellent framework to absorb the crashes. The foam elements ( normal or big) can remain put but are optional.
Shocktower front
3.0mm carbon fibre shocktowers with 3 jobs to discover the best shockmounting. In the middle you'll be able to install another bodypost as required.
Front brackets
a succinct and superlight framework of topquality aluminium components include top-brackets, L and R equal bearing brackets, reduced suspension bracket front part, L and R equal FR-RR standing suspension system holders and backside, anti-roll club owner and Lightened machined alu brackets, equal left and right, toothed component allow developing gear anxiety with excenters which seat the bearings. Machined alu topbrackets L and R variation to place regarding top hands. Suspension system bracket front . All crafty machined and grey anodised elements. The available style design allows quickly components trade as required, like gear, diff or anti-roll club.
Suspension system system front part
Strong very long double A-arm suspension with aluminium pivotballs, which pivot in light nylon cups. Moderate hard nylon perfect for the fingers to own some flex to boost grip, making them numerous durable. The fingers pivot inside on springsteel pins. The pivot-inserts are accustomed to change rollcenter. Tiny grubscrews mount inside the top bracket to handle downstop. Available and alter drive height, front side width, toe-in, caster and camber.
Steeringblocks / wheelaxles / cvd
quite strong nylon steeringblocks with 2 ackermann jobs . The spring-steel wheelaxles are seated in high speed bearings. The light and durable spring-steel cvds bring every one of the capacity on leading tires. Tires are installed to orange anodised supreme quality aluminium hex-adaptors using serrated wheelnuts.
Anti-roll club front side side
The ballraced cable kind anti-rollbar to the front part is straightforward to find and modification for any other sort or level as required. The anit-roll club is from the reduced a-arms with a fantastic pivotball/cup system, gives direct and smooth procedure and it's also a facile task to create.
Servo-saver / steering
The centraly mounted steel servo-saver post fits the spring-loaded ballraced servo-saver system and steering. The inserts permit 2 ackermann settings. Due on the way to available design the linkages with L/R threading is reached effectively. The whole system permits in fact accurate steering and minimal bumpsteer.
Center shaft owner
Machined 2 piece aluminium center shaft holder, which firmly holds the springtime metal center haft, and doubles up as owner of pipe-mount.
Straight back brackets
really available end design with a framework of 8 machined alu brackets, making it possible for managed flex and simple maintenance. The differential brackets, L and R equal, are toothed and seat the excentric bearing owner, which enable establishing belttension. Its extremely simple and quick to install a differential and or change a belt.
The 2-speed gearbox shaft holders, two times up as anti-roll mounts, and brake system foundation. The holders are attached to the top of straight back brackets whenever less flex is important. Optional are a a plastic inserts or aluminium inserts. All topquality machined elements with anodising and laser-engraving.
Brake -system
the reduced mounted brake system with superlight disk enables smooth and stopping, as well as the available system stops overheating. The ball-raced excenter and lever provides an exceptionally smooth and direct brake-feeling.
The machined aluminium lower suspension system brackets have actually really roll-center inserts with 3 jobs to pick from. A corner bracket will be the V1 variation, whicj is slim thanm usee inside the 733, to achieve the new geometry using the close paid off fingers and uprights.
Back carbon shocktower and camber bracket
The 3.0mm carbon shocktower has 3 top mounting position the shocks and it also mounts the body-poles. The camber bracket provides 8 functions available, 4 internal and 4 out holes.
Suspension straight back
the newest paid down back arms alongside the newest uprights create this new geometry into the rear, to make a wider set-up sweet-spot with an increase of hold and much more steering. The top camber rods connect with the carbon camber bracket with 8 mounting jobs for roll-center together with camber pole is simple discover your self in and contains L/R threading for fast modifications. The aluminium pivotball system enables fast changes in width and toe-in. Concerning the reduced in the wishbone pivots on springsteel pins, which seat with roll-center inserts within the anodised alu suspension system system brackets.
Spine wishbones
the composite paid off wishbones work a mounting place the anti-roll club linkage bracket in carbon, which moves the net link destination more outside and higher. Its provides a mounting destination for an optional carbon shock-mount bracket, to go the low shockmount spot further away, but also for the default set-up its unneeded. By putting the paid off shock further away, you are going to receive a lot more steering .
Uprights / wheel-axles
Durable moderate type nylon uprights, which seat the wheel-axles bearings. The upright offers the mounting spot the steel camber-rod with L/R threading. The durable springtime metal wheelaxles bring to energy from gear-diff toward wheels. Tires are fitted on quality anodised alu wheelhex adaptors and fully guaranteed with serrated flanged wheelnuts.
Anti-roll club backside
The ballraced cable kind anti-rollbar in the back is really easily accessible through top and change for other type or degree as needed. The anti-roll club is from the paid off a-arms with a metal pole. The reduced hands provides 2 mounting roles to select from.
Gear-differentials
Compact, durable and light gear differential. Pecision moulded steel gears, 2 small and 2 big people. Steel inside shaft. Belly muscles durable and light springtime metal lightened diff-adaptors connect to the driveshafts. The geardiff is same front component and rear.
CVD driveshafts
Spring metal, light and extremely durable CVDs utilized in the best. Precision mounted difficult steel pins
Drive-shafts
Spring steel, light and intensely durable dogbones utilized in a corner. Precision mounted hard steel pins
Pullies
Precison moulded super-true pullies, which function holed sidewalls allowing debris re-locate easier. Light and durable.
Belts
Kevlar reinforced belts with fine pitch. Longlasting and smooth.
Belt-tensioner
Ball raced belt-tensioner, machined from aluminium and certainly will install at the top or underneath the radioplate.
Gear-box SL6
The fine proven SL6 gearbox is standard inside 747. Seriously light and lightweight, with really low rotating mass. Durable and longlasting gears. Top quality bearings. Very grippy springloaded 2-speed footwear, an easy task to set.
Genuine Movement Centax clutch
Serpent created the Centax clutch in mid 90-ties, and all sorts of forms of brands used it. Small improvements are located to really make the initial system additionally. The motion Centax has a group flywheel, and taper component on force dish. This allows the flyweights for results better yet. The difficult anodised aluminium flywheel has 4 holes to obtain comfortable usage of keep the flywheel set up whenever developing the pre-tension. The flyweights are constructed of topquality teflon and have another opening to work with grubscrews to make them heavier. The red friction clutch footwear is fairly grippy, and works exemplary utilizing the metal clutch housing. The hard anodised gears screw regarding the threaded metal bell.
Motor mount
The machined and anodised monotype motor mount has cooling ribs in regards to the edges and stiffens the framework aswell. The mount completely seats the motor, well alligned. utilising the gearbox. Tiny modification may be developed to move the motor nearer toward gearbox.
