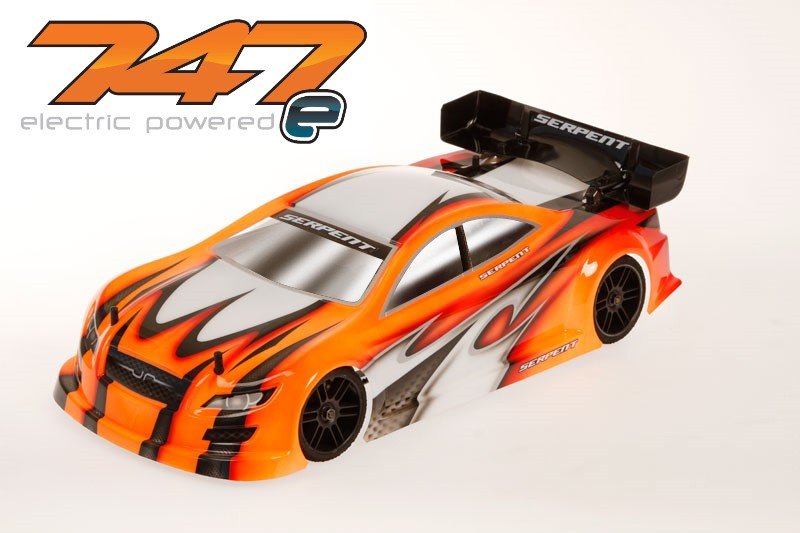

Serpent 747-e 1/10 scale 4wd 200mm electric rushing vehicle. Compared to every day to time 1/10 scale touringcar, the control is quite various, much simpler. While you will race with a wider car of 200mm and also make usage of foam tyres on wider rims. The 1/10 200mm vehicles may basic stronger ( and somewhat weightier) and may take the excess power you have got effectively, without deteriorating fast. Despite the fact that crashing the 200mm cars are far more durable and could soak up more power.
Demands:
- Course: 200mm 1/10th Scale
- Purpose: 200mm Touring car Racer
- Chassis: 3mm carbon fibre , CNC machined
- Suspension: Independent double wishbone suspension system
- Top-deck: 2mm carbon fibre, CNC machined
- Shock absorbers: RCM surprise absorbers
- Drive system: 4wd through kevlar strengthened timing belts
- Front axle: Gear Differential v2 (Optional a proven method axle )
- backside axle: Gear Differential v2
- Weight: 1.595kg (in accordance with radio gear)
- Max. rate: 105km/h +
- Acceleration: 0-90km/h 3.0 moments
- Directions: color tips, guide guide
- Perhaps maybe not included: Body, speedo, engine, radio gear, electric batteries, tires
Features:
- Carbon fibre framework and topdeck
- Aluminum motormounts which doubles up as midshaft owner and straight back anti-roll club owner
- Ballraced midshaft is set up in seperate brackets permitting simple and fast spurgear changes
- low steeringservo destination, with centrally create helps with alu/carbon framework
- 2 alu L-shaped topdeck supports with built-in ballraced gear tensioners
- front side and back geardiffs, front side and back same
- Ballraced anti-roll pubs
- Carbon fibre battery holders
- completely adjustable separate suspension system system
- Minimal friction belts and accuracy made pullies
- RCCX shockabsorbers
- Front CVD and back dogbones in Serpent Spring steel
- minimal and wide front component bumper
Chassis
Symmetrical chassisplate also for flex and torsion in 3mm carbon fiber, lowered where the engine mounts as low as possible in to the vehicle.
Topdeck
The 2mm carbon fibre topdeck link leading and back suspension system system.
Battery holders
The battery power holders have been in carbon fibre and still have sleeves enable use of battery power mounting taope effectively.
Servo-holder
suprisingly low mounted servo, a great carbon/alu owner that is centrally set up for even flex
Engine / midshaft / anti-roll club owner
the motor is established regarding lowest strong aluminium owner, which doubles as mid-shaft owner and backside anti-roll club owner also.
The mid-shaft mounts in 2 seperate holders combined with ballbearing inside to enanble an easy and easy modification of gears.
RCM shocks
Rough Teflon coated threaded shockbodies in supreme quality aluminium. Supersmooth o-ring / bushing package, to steer and seal the spring-steel piston rods. Precision moulded pistons found in 3 types. Threaded pre-load shocknuts in alu with o-ring inside. Light but strong nylon spring-cups. Tight fitting ball-joints in top and base.
Front bumper
Newly created reduced front part bumper with aerodynamic impacts and better protection. Some areas of the reduced bumper may be cut available to create more steering. The most truly effective bumper / bodymount holder connect toward low one to produce a powerful structure to take in the crashes. The foam elements ( normal or big) can however be put but are optional.
Shocktower front part
3.0mm carbon fibre shocktowers with 3 jobs to find the best shockmounting. In the centre you can install another bodypost as needed.
Front brackets
a super taut and superlight framework of topquality aluminium parts have top-brackets, L and R equal bearing brackets, reduced suspension system bracket front component, L and R equal FR-RR standing suspension system system holders and rear, anti-roll bar owner and Lightened machined alu brackets, equal left and right, toothed section allow setting gear anxiety with excenters which seat the bearings. Machined alu topbrackets L and R variation to help keep top of the arms. Suspension system bracket front part . All crafty machined and grey anodised elements. The open style design allows very quickly elements change as required, like gear, diff or anti-roll club.
Suspension system front side
Strong very long double A-arm suspension system with aluminium pivotballs, which pivot in light nylon cups. Moderate hard nylon employed for the fingers to have some flex to boost hold, and work-out them numerous durable. The arms pivot inside on springsteel pins. The pivot-inserts are used to alter rollcenter. Little grubscrews mount in top bracket to deal with downstop. Easily accessible and change trip height, front part width, toe-in, caster and camber.
Steeringblocks / wheelaxles / cvd
very good nylon steeringblocks with 2 ackermann jobs . The spring-steel wheelaxles are seated in higher level bearings. The light and durable spring-steel cvds bring most of the capacity towards the front tires. Tires are installed to orange anodised top quality aluminium hex-adaptors utilizing serrated wheelnuts.
Anti-roll club front
The ballraced cable type anti-rollbar to the front side is really accessible and modification for just about any other type or depth as required. The anit-roll club is from the reduced a-arms with a distinctive pivotball/cup system, which supplies direct and smooth procedure and it is very easy setting.
Servo-saver / steering
The centraly mounted metal servo-saver post fits the spring-loaded ballraced servo-saver system and steering. The inserts help 2 ackermann settings. As a result of available design the linkages with L/R threading might reached effectively. The entire system allows extremely accurate steering and minimal bumpsteer.
Back brackets
actually available tail design with a framework of 8 machined alu brackets, enabling handled flex and simple upkeep. The differential brackets, L and R equal, are toothed and seat the excentric bearing owner, which allow developing belttension. Its exceptionally quick and easy to put in a differential and or replace a belt.
The machined aluminium paid down suspension brackets have actually really roll-center inserts with 3 functions to pick from. The trunk bracket could be the V1 variation, which is slim than applied to the 733, to ultimately achieve the new geometry with the close lower fingers and uprights.
Straight back carbon shocktower and camber bracket
The 3.0mm carbon shocktower has 3 top mounting place the shocks plus it mounts the body-poles. The camber bracket provides 8 roles available, 4 internal and 4 out holes.
Suspension straight back
the latest spine fingers alongside the latest uprights create this new geometry inside back, generate a wider set-up sweet-spot with extra hold and many more steering. The top of camber rods put on your carbon camber bracket with 8 mounting functions for roll-center as well as the camber pole is easy getting access to and contains L/R threading for quick modifications. The aluminium pivotball system enables quick alterations wide and toe-in. In the low in the wishbone pivots on springsteel pins, which seat with roll-center inserts inside anodised alu suspension system brackets.
Lower back wishbones
the composite reduced wishbones work a mounting spot the anti-roll bar linkage bracket in carbon, which moves the web link spot more outside and greater. Its offers a mounting spot for an optional carbon shock-mount bracket, to obtain the reduced shockmount location further away, but also for the default set-up its unneeded. By putting the paid off surprise further away, you are getting more steering .
Uprights / wheel-axles
Durable medium type nylon uprights, which seat the wheel-axles bearings. The upright provides the mounting destination the steel camber-rod with L/R threading. The durable springtime steel wheelaxles bring to power through gear-diff toward tires. Tires are fitted on high quality anodised alu wheelhex adaptors and guaranteed with serrated flanged wheelnuts.
Anti-roll club back
The ballraced wire kind anti-rollbar inside back is really available through most readily useful and change for almost any other type or depth as required. The anti-roll bar is through the paid a-arms with a steel pole. The lower arms offers 2 mounting jobs available.
Gear-differentials
Compact, durable and light gear differential. Pecision moulded metal gears, 2 small and 2 large people. Metal interior shaft. The durable and light springtime steel lightened diff-adaptors connect with the driveshafts. The geardiff is very same front side component and backside.
CVD driveshafts
Spring steel, light and extremely durable CVDs based in the leading. Precision mounted hard metal pins
Drive-shafts
Spring steel, light and intensely durable dogbones found in the trunk. Precision mounted hard metal pins
Pulleys
Precison moulded super-true pullies, which work holed sidewalls to permit debris re-locate easier. Light and durable.
Belts
Kevlar reinforced belts with fine pitch. Longlasting and smooth.
Belt-tensioners
2 Ball raced belt-tensioners, machined from aluminium mount between your framework and topdeck.
