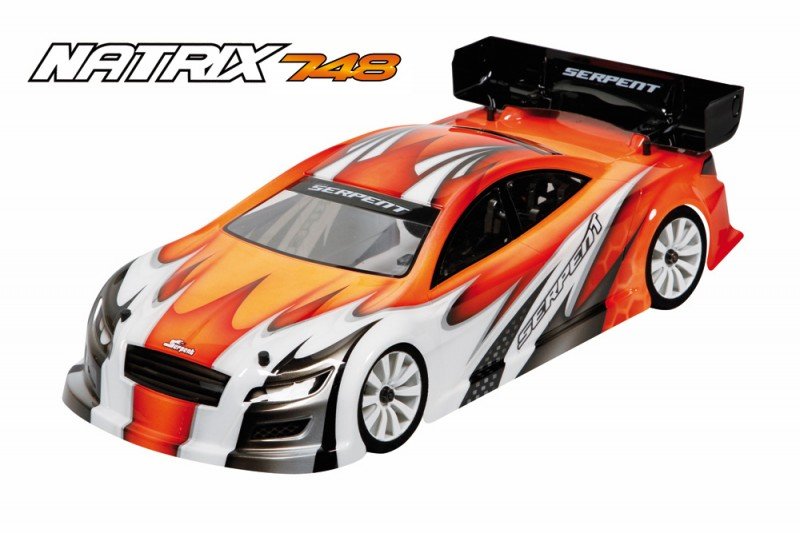

Serpent SER804007 Natrix 748 1/10 200mm GP car  [SER804007]

Serpent Natrix 748 1/10 scale 4wd gaspowered 200mm vehicle 4wd, belt-drive, gear-differentials front side and back, Centax TM clutch, 2-speed gearbox, 75cc tank, chassis 7075-T6, carbon radioplate and shocktowers, RCM-SS shocks, ball-raced anti-roll pubs, completely adjustable.

Demands:

• Course: 200mm 1/10th Scale 200mm
• Chassis: 3mm aluminum, 7075 aerospace quality, CNC machined
• Suspension: Independent increase wishbone suspension system system
• Radio dinner: 2.5mm carbon fiber, CNC machined
• Shock absorbers: RCM SS shock absorbers
• Fuel tank: 75cc design
• Drive system: 4wd through kevlar strengthened timing belts
• Clutch system: Centax-True motion clutch system
• Front axle: Gear Differential
• Back axle: Gear Differential
• Gearbox: Lightweight SL6 2-speed with interchangeable fine pitch gears
• body fat: 1.595kg (in accordance with radio gear)
• Max. rate: 105km/h +
• Acceleration: 0-90km/h 3.0 seconds
• Guidelines: color guide, guide guide
• Maybe not included: motor and pipeline, body, radio equipment, battery pack, tires

Features:

• The newest steeringblock system, well proven towards WC winning Viper 977, is totally adjustable, enable a respected, fundamental or trailing position and invite mounting regarding the optional carbon aero disks
• a fresh fueltank was created, which sits also lower in the car as before, and it's also long and slim
• The lay-down servos are both seated in a single composite owner, since near feasible in direction of centerline in regards to the automobile, producing a much better overall security and allowing better rotation. The gas-throttle linkages behave such as the unit added to the Viper 977
• a great little and light receiver box is completed, which seats really near the radio-tray as well as just as much inboard as possible . Into the radioplate some owner is fitted to merely accept the plugs linked to the battery pack, to accomplish one thing as on/off switch.
• The ballraced backside anti-roll bar is optimised destination smart.
• The alumium right back braking system and 2-speed shaft holders, which also offer the backside anti-roll club are lighter
• This brand new chassisplate allows the motor be set up more toward right back as before, causing a better basic security. Therefor the trunk and part gear are completely new too.
• A big part uprights are modified to also accept the optional carbon aero disks
• The radioplate sits extremely reduced the vehicle, and it also incorporated a sizable spend a fresh kind ballraced flexsystem, which a be used or locked in moments.
• the reduced radiotray made a fresh steering / servo saver put up necessary, once again with adjustable ackermann inserts as prior to.
• About the front end the bumper is a bigger low mounted product with all the current carbon top-plate.
• As a whole the NATRIX automobile is lighter than 747 ahead of, as also most aluminium elements appear to have been redesigned to free fat.

Radioplate
The 2mm carbon dietary fiber radioplate has numerous functions. It holds the fueltank in place which are often attached with 3 alu articles in rubber. Regarding right hand component the receiver mounts to a well shaped carbon fibre plate that connects to your radiotray, sqeezed in right between gear and tank. The radioplate sits once more paid about the car , for paid off center of gravity.

Central Flex system
The trunk part of the radioplate incorporates an amazing flex-control system. It has 2 machined aluminium parts. The lower one links toward radioplate supports a top regarding the one with screws on top alu dish and radioplate. You are going to either run the 748 rigid with flex . The optional ball-bearings and screws can be purchased seperate. Testing shows that flex in center back regarding the vehicle has the numerous effect and responds most predictable as wel.

748 servo owner
a new composite servo owner is made to have both servo nearer to your guts distinct the auto and also as little since it is possible to. The 2 lay-down servo?s are seated actually near together and mount really efficent and easy method. The owner mounts towards the radio-tray.

Linkages
The throttle / stopping system linkage is same design as put on the 977 1/8 car. A pivot-lever system with an ingenius ball-cup system to your guide the cable while having nearly friction free action.

748 receiver field
the modern composite receiver package is small but holds and protects the most frequent contemporary receivers efficiently. The antenna mounts towards top. The container is securely fastened toward radioplate with a nylon bracket . The box is relocated as a tremendous amount towards the inside that one may. Regarding radioplate a small owner is equipped to simply accept the plugs of the battery, to become on/off ?switch?.

Battery-holder
Carbon fibre battery-holder placed between your tank and pipeline, for the greatest fat stability. The battery power is easy to strap down with tape towards bracket. Spacers could be always install the electric batteries greater or lower with regards to the electric batteries you intend to utilize.

748 fueltank
Lower and longer durable 75ccm nylon fueltank with clear product to effortless see fuel-content. Big springloaded quick-fill limitation with seal with big tank start for without headaches refills. The bronze sintered filter will keep gas neat and ensure tank will clear till final autumn if required. Fueltank sits suprisingly low in the car for low center of gravity. Fueltank is installed with videos on 3 alu articles with artificial buffers.

SuperShort RCM shocks
Coated threaded shockbodies in high-quality aluminium. Supersmooth o-ring / bushing package, to steer and seal the spring-steel piston rods. Precision moulded pistons within 3 kinds. Threaded pre-load shocknuts in alu with o-ring in. Light but strong nylon spring-cups. Selected, matched and paired shockabsorber springs with color coding.

Front bumper and bodymount
Front bumper with aerodynamic impacts and exemplary safety. Some parts of the reduced bumper is cut available to create more steering. Moderate or small foam bumper pad scan however be fitted as optional. The most notable carbon fibre bodyplate mounts towards front side bumper with alu post and secures leading bdyposts

Shocktower front part
Superlow 3.0mm carbon fibre shocktowers with 3 functions for top level shockmounting. In the centre you are going to install another bodypost as required.

Front side brackets
a concise and superlight framework of topquality aluminium parts include top-brackets, L and R equal bearing brackets, reduced suspension system system bracket front side. The available style design permits rapidly components change as required, like gear, diff or anti-roll club.

Suspension system system front side
Strong lengthy two times A-arm suspension system system system with aluminium pivotballs, which pivot in light nylon cups. Specialized kind composite hands. The hands pivot internally on springsteel pins. The pivot-inserts are accustomed to alter rollcenter. Little grubscrews mount to the top bracket to manage downstop. Available and change trip height, front width, toe-in, caster and camber.

Steeringblocks
Very strong composite steeringblocks with 2 ackermann roles, L and R usage the same . The steeringblocks work inserts, which enable to alter the kingpin inclination to several one or trailing spot. The steeringblocks additionally enable utilising the optional carbon fiber aero disks become installed on low priced flex and a far more direct steering feel.

Wheelaxles / cvd
The spring-steel wheelaxles are seated in high speed bearings. The light and durable spring-steel cvd?s bring all power to the key tires. Tires are installed to orange anodised high quality aluminium hex-adaptors utilizing flanged wheelnuts.

Anti-roll club front side part
The ballraced cable type anti-rollbar inside front part is actually readily available and alter for just about any other type or thickness as required. The anti-roll club is for this paid off a-arms with a genuine pivotball/cup system, provides direct and smooth procedure which is simple to set and adjust.

Servo-saver / steering
the most recent lowered centraly mounted steel servo-saver post fits the spring-loaded ballraced servo-saver system and steering. The inserts make it possible for 2 ackermann settings. As a result of the available design the linkages with L/R threading is reached efficiently. Your entire system permits incredibly accurate steering and minimal bumpsteer.

Center shaft owner
Machined 2 piece aluminium center shaft owner, which firmly holds the springtime metal center shaft, and doubles up as owner the pipe-mount.

Backside brackets
exceptionally rigid but open buttocks design with a composition of machined alu brackets, enabling effortless upkeep. The differential brackets, L and R equal, are toothed and chair the excentric bearing owner, which enable establishing belttension. Its acutely swift and easy to install a differential and or alter a belt. The machined aluminium reduced suspension system system brackets have actually really in fact roll-center inserts with 3 jobs available. The trunk bracket could be the slim V1 variation.

The 2-speed gearbox shaft holders, 2 times up as anti-roll mounts, and stopping system system foundation. All topquality machined components with anodising and laser-engraving.

Brake -system
the reduced mounted brake system with superlight disk allows smooth and stopping, and also the available system stops overheating. The ball-raced excenter and lever provides an incredibly smooth and direct brake-feeling.

Back carbon shocktower and camber bracket
the low 3.0mm carbon shocktower has 3 top mounting spot the shocks consequently mounts the body-posts. The camber bracket provides 8 functions to choose from, 4 interior and 4 out holes. The shocktower is preparing to install the excess body-protectors, and this can be optional.

Suspension backside
The rough lower back composite hands alongside the updated uprights create a wider set-up sweet-spot with extra hold plus much more steering. The top of camber rods link toward carbon camber bracket with 8 mounting functions for roll-center and so the camber pole is not hard to reach usage of and contains L/R threading for fast modifications. The aluminium pivotball system allows fast alterations wide and toe-in. Inside reduced inside the wishbone pivots on springsteel pins, which seat with roll-center inserts inside anodised alu suspension system system brackets.

Straight back wishbones
The difficult composite paid off wishbones work a mounting spot the anti-roll bar linkage which moves the web link spot more outside. Its additionally provides a mounting destination for an optional carbon shock-mount bracket, to have the reduced shockmount place further out, aside from the conventional set-up its unnecessary. By putting the lower surprise further away, you're going to get far more steering .

Uprights / wheel-axles
Durable medium type composite uprights, which seat the wheel-axles bearings. The upright provides the mounting spot the steel camber-rod with L/R threading. Rolll center chnages are produced inside the upright with shims. The upright is initiated using the optional carbon fiber aero disks to acquire additional right back grip and right line security.

Wheelaxles and driveshaft
The durable springtime steel wheelaxles along with springtime metal driveshafts bring the power from gear-diff to your tires. Tires are fitted on quality anodised alu wheelhex adaptors and secured with flanged wheelnuts.

Anti-roll club straight back
The ballraced cable kind anti-rollbar in backside is really available through the utmost effective and alter for every other type or thickness as needed. The anti-roll club could be because of this paid down a-arms with a spring-steel pole.

747 Gear-differentials
Compact, durable and light gear differentials. Pecision moulded steel gears. The durable and light springtime metal lightened diff-adaptors connect to the driveshafts. Front and right back geardifferential are same, simply different pullies.

CVD driveshafts
Spring steel, light and intensely durable CVD?s found in the best. Precision mounted hard metal pins

Drive-shafts
Spring metal, light and very durable dogbones located in the trunk. Precision mounted hard metal pins

Pullies
Precision moulded super-true pullies, which work holed sidewalls to permit debris transfer easier. Light and durable.

Belts
Minimal friction Kevlar reinforced belts with fine pitch. Longlasting and smooth.

Belt-tensioner
Ball raced belt-tensioner, machined from aluminium and certainly will install on top or within the radioplate.

Gear-box SL6
The fine verified SL6 gearbox is standard inside the 748. Light and compact, with suprisingly low rotating mass. Durable and longlasting gears. High quality bearings. Very grippy springloaded 2-speed footwear, super easy setting.

Real movement Centax clutch
Serpent created the Centax clutch in mid 90-ties, and all brands tried it. Small improvements are observed to help make the initial system additionally. The motion Centax has a set flywheel, although the taper component on pressure dish. Thus giving the flyweights working even better. The difficult anodised aluminium flywheel has 4 holes your should buy comfortable access to keep carefully the flywheel constantly create whenever establishing the pre-tension. The flyweights are produced from topquality teflon and feature another opening to make use of grubscrews to make sure they truly are heavier. The red friction clutch footwear is very grippy, and works excellent utilizing the metal clutch housing. The difficult anodised gears screw regarding the threaded metal bell.

Motor mount
The light machined and anodised motor mounts perfectly seats the motor, well alligned utilizing the gearbox. Tiny modification might be created to get the motor closer toward gearbox.
