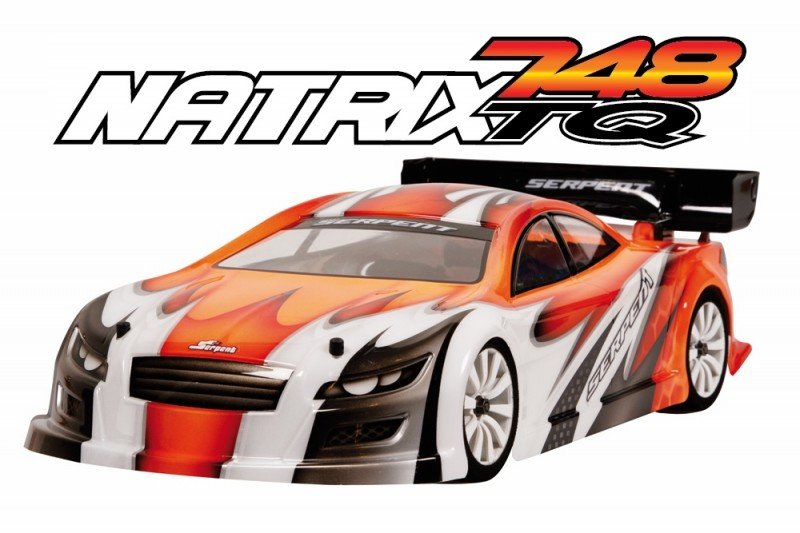

Serpent Natrix 748 TQ 1/10 scale 4wd gaspowered 200mm automobile 4wd, belt-drive, new 748 gear-differentials front and rear, Centax TM clutch, new XLi 2-speed gearbox, 75cc tank, framework 7075-T6, carbon radioplate and shocktowers, RCM-SS shocks, ball-raced anti-roll bars, entirely adjustable.
Specs:
- Course: 200mm 1/10th Scale 200mm
- Chassis: 3mm aluminum, 7075 aerospace quality, CNC machined
- Suspension: separate enhance wishbone suspension system system system
- Radio meal: 2.5mm carbon fiber, CNC machined
- Shock absorbers: RCM SS surprise absorbers
- Gas tank: 75cc design
- Drive system: 4wd through kevlar strengthened timing belts
- Clutch system: Centax-True motion clutch system
- Front axle: Gear Differential 748
- Rear axle: Gear Differential 748
- Gearbox: Lightweight SL6 2-speed with interchangeable fine pitch gears
- Weight: 1.595kg (centered on radio gear)
- Max. rate: 105km/h +
- Acceleration: 0-90km/h 3.0 moments
- Guidelines: color instructions, guide guide
- Perhaps perhaps not included: Engine and pipeline, human body, radio gear, battery, tires
Features:
Chassis
Symmetrical chassisplate even for flex and torsion, in 7075 T6 aluminium, anodised and laser etched. Chamfered sides for more ground approval when cornering and countersunk holes. Central slots to set up fat, that may slip into the right spot and secured.
Radioplate
The 2mm carbon fibre radioplate has many functions. It holds the fueltank arranged that may be installed on 3 alu articles in synthetic. Regarding right hand side the receiver mounts to a nicely shaped carbon fiber meal that links to your radiotray, sqeezed in right between belt and tank. The radioplate rests yet again reduced regarding the automobile , for reduced center of gravity.
Central Flex system
a corner part of the radioplate incorporates an incredible flex-control system. It is consists of 2 machined aluminium elements. The reduced one links toward radioplate supports a the upper one with screws towards the most effective alu meal and radioplate. It is possible to either run the 748 rigid with flex . The optional ball-bearings and screws can be bought seperate. Testing shows that flex inside center straight back associated with the car contains the many effect and responds many predictable as wel.
748 servo owner
A brand new composite servo holder was made to have both servo nearer towards the middle kind of the car whenever low as you possibly can. Both lay-down servo?s are seated acutely near together and install in an exceptionally efficent and easy means. The master mounts on radio-tray.
Linkages
The throttle / stopping system linkage is identical style as utilized on the 977 1/8 car. A pivot-lever system with an ingenius ball-cup system toward guide the cable but still have very nearly friction free action.
748 receiver package
the modern composite receiver field is small but holds and protects the most regular contemporary receivers easily. The antenna mounts towards the very best. The container is firmly fastened to your radioplate with a nylon bracket . The container was indeed relocated equally as much toward inside as you can. Regarding radioplate a small owner is prepared to merely accept the plugs of battery pack, to act as on/off ?switch?.
Battery-holder
Carbon fibre battery-holder put between your tank and pipeline, numerous of use fat safety. The battery pack is not hard to strap straight down with tape towards bracket. Spacers lets you mount the battery better or reduced with regards to the battery power you intend to benefit from.
748 fueltank
paid off and much longer durable 75ccm nylon fueltank with clear material to simple see fuel-content. Big springloaded quick-fill limitation with seal with big tank opening for effortlessly refills. The bronze sintered filter could keep fuel neat and work out yes tank will clear till last autumn if needed. Fueltank sits really low into the automobile for low center of gravity. Fueltank is initiated with videos on 3 alu articles with synthetic buffers.
SuperShort RCM shocks
Coated threaded shockbodies in good aluminium. Supersmooth o-ring / bushing package, to guide and seal the spring-steel piston rods. Precision moulded pistons a part of 3 kinds. Threaded pre-load shocknuts in alu with o-ring inside. Light but strong nylon spring-cups. Selected, matched and paired shockabsorber springs with color coding.
Front bumper and bodymount
Front bumper with aerodynamic results and exceptional safety. Some the different areas of this lower bumper is cut available to create more steering. Moderate or little foam bumper pad scan stay fitted in as optional. The surface of the carbon fiber bodyplate mounts on front side bumper with alu post and secures leading bdyposts
Shocktower front side
Superlow 3.0mm carbon fibre shocktowers with 3 functions for top shockmounting. In the middle you'll install another bodypost as required.
Front part brackets
a succinct and superlight framework of topquality aluminium elements contain top-brackets, L and R equal bearing brackets, reduced suspension system system system bracket front side. The available style design permits very quickly elements modification as required, like gear, diff or anti-roll club.
Suspension system system front part
Strong lengthy twice A-arm suspension system with aluminium pivotballs, which pivot in light nylon cups. Rough type composite hands. The hands pivot internally on springsteel pins. The pivot-inserts are used to change rollcenter. Small grubscrews mount in the top bracket to regulate downstop. Simple to get at and alter journey height, front width, toe-in, caster and camber.
Steeringblocks
Very strong composite steeringblocks with 2 ackermann jobs, L and R utilize equivalent . The steeringblocks function inserts, which make it possible for to boost the kingpin inclination to a respected or trailing place. The steeringblocks also allow usage of the optional carbon fiber aero disks to be installed at a lowered price flex and a much more direct steering feel.
Wheelaxles / cvd
The spring-steel wheelaxles are seated in high rate bearings. The light and durable spring-steel cvd?s bring all capacity to leading tires. Tires are set up to orange anodised top quality aluminium hex-adaptors utilizing flanged wheelnuts.
Anti-roll club front side component
The ballraced cable sort anti-rollbar to the front part is clearly available and change for any other sort or depth as required. The anti-roll club is connected toward reduced a-arms with an authentic pivotball/cup system, which gives direct and smooth procedure and it is super easy to create and adjust.
Servo-saver / steering
the most recent lowered centraly installed metal servo-saver post fits the spring-loaded ballraced servo-saver system and steering. The inserts allow 2 ackermann settings. Because of the available design the linkages with L/R threading is reached effortlessly. The complete system permits excessively exact steering and minimal bumpsteer.
Middle shaft owner
Machined 2 piece aluminium center shaft owner, which securely holds the springtime metal center shaft, and doubles up as owner of pipe-mount.
Straight back brackets
extremely rigid but available buttocks design with a framework of machined alu brackets, enabling effortless upkeep. The differential brackets, L and R equal, are toothed and chair the excentric bearing owner, which enable establishing belttension. Its actually quick and easy to install a differential and or change a belt. The machined aluminium paid down suspension brackets have really roll-center inserts with 3 jobs available. A corner bracket could be the slim V1 variation.
The 2-speed gearbox shaft holders, two times up as anti-roll mounts, and stopping system system foundation. All topquality machined elements with anodising and laser-engraving.
Brake -system
the paid down mounted stopping system system with superlight disk permits smooth as well as stopping, and available system prevents overheating. The ball-raced excenter and lever provides a very smooth and direct brake-feeling.
Back carbon shocktower and camber bracket
the low 3.0mm carbon shocktower has 3 top mounting location for the shocks and in addition it mounts the body-posts. The camber bracket provides 8 jobs to pick from, 4 internal and 4 out holes. The shocktower has the capacity to install the surplus body-protectors, being optional.
Suspension backside
The extreme right back composite hands alongside the updated uprights create a wider set-up sweet-spot with additional hold and a lot more steering. The surface of the camber rods connect towards the carbon camber bracket with 8 mounting functions for roll-center and so the camber pole is straightforward to get into and possesses L/R threading for fast modifications. The aluminium pivotball system allows fast alterations in width and toe-in. On reduced in the wishbone pivots on springsteel pins, which chair with roll-center inserts to the anodised alu suspension system brackets.
Lower rear wishbones
The hard composite lower wishbones function a mounting spot the anti-roll club linkage which moves the internet link destination more outside. Its now provides a mounting spot for an optional carbon shock-mount bracket, for the paid down shockmount place further away, but in addition for the standard set-up its not necessary. By putting the paid off surprise further away, you will get more steering .
Uprights / wheel-axles
Durable moderate type composite uprights, which seat the wheel-axles bearings. The upright provides the mounting place the steel camber-rod with L/R threading. Rolll center chnages might made in the upright with shims. The upright could possibly be set up utilizing the optional carbon fiber aero disks to obtain additional straight back hold and right line security.
Wheelaxles and driveshaft
The durable springtime metal wheelaxles and springtime metal driveshafts bring the ability through the gear-diff towards the tires. Tires are fitted on high grade anodised alu wheelhex adaptors and secured with flanged wheelnuts.
Anti-roll bar right back
The ballraced cable type anti-rollbar within the straight back is actually easy to get at through top and alter for other sort or level as required. The anti-roll club is through paid down a-arms with a spring-steel pole.
748 Gear-differentials
Compact, durable and lighter gear differential. Precision moulded steel gears, 2 tiny 14T and 2 big 28T people. Stomach muscles durable and light spring steel lightened diff-adaptors link towards driveshafts. Front and right back geardifferential share the exact same interior elements.
CVD driveshafts
Spring metal, light and intensely durable CVD?s based in the leading. Precision mounted hard steel pins
Drive-shafts
Spring steel, light and extremely durable dogbones found in the rear. Precision installed difficult steel pins
Pullies
Precision moulded super-true pullies, which work holed sidewalls to permit debris re-locate easier. Light and durable.
Belts
Minimal friction Kevlar reinforced belts with fine pitch. Longlasting and smooth.
Belt-tensioner
Ball raced belt-tensioner, machined from aluminium and will install towards the top or beneath the radioplate.
Gear-box SL6 - Xli
The fine proven SL6 gearbox is obviously redesigned and lighter. Smaller bell, adaptor and shoes decrease general weigth and rotating mass, therefore paid off intertia. Durable and longlasting gears. Exemplary bearings. Actually grippy smaller springloaded 2-speed footwear, an easy task setting.
Real motion Centax clutch
Serpent created the Centax clutch in to the mid 90-ties, and all types of brands applied it. Little improvements are observed to really make the initial system on top of that. The genuine motion Centax has an appartment flywheel, and taper component about the force dish. This allows the flyweights towards workplace in addition to this. The hard anodised aluminium flywheel has 4 holes to own immediate access to help keep the flywheel set up whenever establishing the pre-tension. The flyweights are manufactured out of topquality teflon and show just one more space to utilize grubscrews to ensure they are heavier. The red friction clutch footwear is very grippy, and works excellent using the steel clutch housing. The difficult anodised gears screw on threaded steel bell.
Motor mount
The light machined and anodised engine mounts completely seats the motor, well alligned using the gearbox. Little modification are created to go the engine nearer to the gearbox.
