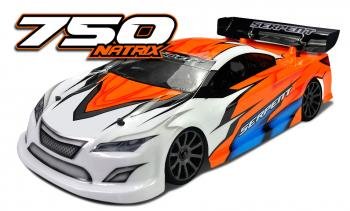

Serpent SER804011 Natrix 750 1/10 200mm gp car  [SER804011]

Item Description

• Key new features
  Michael Salven as chief designer, developed this successor the worldchampionship winning 748. The principal new feature could be the brand new back geometry which improves straight back traction while nevertheless keep an incredible rotation and steering in corners. This may be alongside improved accessability and ease of maintanance of important elements as the diffs for instance.
  Other key top features of the 748 like big-bore shocks and Xli gearbox it's still unchanged.

  Serpent 750; details

  Chassis
  Symmetrical chassisplate optimised flex and torsion, in 7075 T6 aluminium, anodised and laser etched. Chamfered edges to get more ground clearance whenever cornering and countersunk holes. Central slots to set up fat, that may slip towards the right place and guaranteed in full.

  Radioplate
  The 2mm carbon fiber radioplate has many functions. It holds the fueltank in position that is to be set up on 3 aluminum articles in synthetic. Concerning the staying hand component the receiver and right component the battery pack mounts to a nicely shaped carbon fibre dinner that links toward radiotray, sqeezed in right between gear and tank. The radioplate sits all over again paid off on car , for lower center of gravity. Unique features range from the possibility to install an additional gear tensioner and enhanced accessability and flex control through a fresh means of fixing the servosaver.

  Central Flex system
  a big component area of the radioplate incorporates a fantastic flex-control system. It provides 2 machined aluminium components. The low one links towards radioplate supports an the top one with screws towards upper aluminum meal and radioplate. You'll either run the 748 rigid or with flex . The optional ball-bearings and screws can be found seperate. Testing shows that flex in center backside connected with automobile gets the many effect and reacts many predictable also.

  750 servo owner
  The composite servo owner is unchanged from 748. Its designed to have both servo nearer on center distinct the car so when low that you may. Both lay-down low profile servos are seated acutely near together and install really efficent and simple technique. The dog owner mounts on radio-tray.

  Linkages
  The throttle / braking system linkage is identical design as placed on the 977 1/8 automobile. A pivot-lever system with an ingenius ball-cup system towards guide the cable and possess nearly friction free action.


• 750 receiver industry
  The composite receiver industry is small but holds and protects many frequent contemporary receivers effortlessly. The antenna mounts toward top. The container is securely fastened on radioplate with a nylon bracket . The container is relocated the most of in direction of inside as you are able to. In regards to the radioplate a little owner is fitted to just accept the plugs the battery pack, to be on/off switch.

  Battery-holder
  Carbon fibre battery-holder placed in the middle of your tank and pipeline, to find the best degree fat stability. The battery pack is easy to strap along side tape towards the bracket. Spacers lets you install the battery power greater or lower according to the battery power you want to utilize.

  750 fueltank
  confirmed 75ccm nylon fueltank with clear item to effortless see fuel-content. Big springloaded quick-fill limit with seal with big tank opening for easily refills. The bronze sintered filter can keep fuel neat and ensure tank will clear till final drop if required. Fueltank sits low in on car for low center of gravity. Fueltank is installed with videos on 3 aluminum articles with plastic buffers.

  minimal bigbore shocks
  covered threaded shockbodies in good aluminium. Supersmooth x-ring / machined bushing package, to guide and seal the spring-steel piston rods. Precision machined pistons incorporated into 3 sorts. Threaded pre-load shocknuts in aluminum with o-ring inside. Light but strong nylon spring-cups. Selected, matched and paired shockabsorber springs with color coding.

  Front bumper and bodymount
  the brand new front part bumper has a larger aerodynamic impact and excellent safety. Moderate or tiny foam bumper pad can nevertheless be fitted as optional. The top of carbon fibre bodyplate mounts towards front side bumper with aluminum post and secures top bodyposts


• Shocktower front part
  Superlow 3.0mm carbon fibre shocktower with 3 jobs for top degree shockmounting. In the centre you will install another bodypost as required.

  Front brackets
  a good and superlight framework of topquality aluminium components consist of top-brackets, L and R equal bearing brackets, lower suspension system system system bracket front part. The available style design allows quickly components trade as required, like gear, diff or anti-roll club. Additionally te upper bulkhead come in truth split-design aluminium brackets. A silly nylon downstop bracket secures constant and easy-to-adjust settings.

  suspension system system front
  unique front liwer arms are no a closed-bottom design. Plastic or optional carbon covers offer adjustable tightness. The strong long double A-arm suspension system usage aluminium pivotballs, which pivot in light nylon cups. The arms pivot internally on springsteel pins. The top of pivot-inserts are acclimatized to alter rollcenter. Easy to get at and change journey height, front width, toe-in, caster and camber.

  Steeringblocks
  very good composite steeringblocks with 2 Ackermann positions, L and R utilize very same . The steeringblocks work inserts, which permit to change the kingpin inclination to a respected or trailing location. The steeringblocks furthermore permit using the optional carbon fibre aero disks to be put up on inexpensive flex and a direct steering feel.


• Wheelaxles / cvd
  The spring-steel wheelaxles are seated in higher level bearings. The light and durable spring-steel cvd’s bring the ability to leading and right back tires. Wheels are installed to orange anodised good quality aluminium hex-adaptors using flanged wheelnuts.

  Anti-roll club front
  The ballraced cable kind anti-rollbar inside front part is truly available and change for just about any other sort or thickness as required. The anti-roll club is from repaid a-arms with an authentic pivotball/cup system, which supplies direct and smooth procedure and is an easy task to set and adjust.

  Servo-saver / steering
  The servosaver is obviously fixed in a different way on the top. It may remian fixed in to the automobile whenever tje radioplate is eliminated. And this also improves tweak of automobile. Two different inserts allow 2 ackermann settings. Due to the open design the linkages with L/R threading are reached easily. The complete system permits extremely precise steering and minimal bumpsteer.

  Middle shaft owner
  Machined 2 piece aluminium center shaft owner, which firmly holds the springtime steel center shaft, and doubles up as owner associated with the pipe-mount.


• Back brackets
  excessively rigid but available tail design with a composition of machined aluminum brackets, enabling effortless upkeep. The differential brackets, L and R equal, are toothed and chair the excentric bearing owner, which enable establishing the belttension. The latest created straight back bulkheads triggered that it is feasible to work with super slim back reduced pivots for improved traction and rotation. As well as the acces towards diff is feasible without reduction associated with the gear. The machined aluminium paid down suspension system system brackets have actually really roll-center inserts with 2 functions available.

  The 2-speed gearbox shaft holders are typical amazing. They're lighter versus earlier versions. The appropriate hand part is maintaining the entire new braking system system which similar to the one in the event that 988 and very simple to steadfastly keep up. All topquality machined parts with anodising and laser-engraving.

  Brake -system
  the latest braking system system is fixed with only 2 screws and enables instant access and upkeep. The superlight disk allows smooth and stopping, even though the available system avoids overheating. The ball-raced excenter and lever provides an exceptionally smooth and direct brake-feeling.

  right back carbon shocktower and camber bracket
  the lower 3.0mm carbon shocktower has 3 top mounting spot the shocks consequently mounts the body-posts. The camber bracket provides 8 jobs from which to choose, 4 interior and 4 out holes. The shocktower is preparing to install the surplus body-protectors, being optional.

  Suspension rear
  the low back composite hands are another design when the key fingers underneath is closed. With a plastic or carbon top cover the tightness is adjustable. They're a lot longer versus hands regarding 748 and produce a wider set-up sweet-spot with a growth of grip and several other activities steering. The surface of the camber rods relate to the carbon camber bracket with 8 mounting jobs for roll-center plus the camber rod is straightforward to accomplish use of and possesses L/R threading for fast changes. The aluminium pivotball system enables fast changes in width and toe-in. In reduced the wishbone pivots on springsteel pins, which seat with roll-center inserts in the anodised aluminum suspension system brackets.



• Uprights / wheel-axles
  Durable medium type composite uprights, which seat the wheel-axles bearings. The upright provides the mounting place for the metal camber-rod with L/R threading. Rolll center chnages is made out of the upright with shims. The upright is mounted utilising the optional carbon fibre aero disks to acquire extra back hold and straight line protection.

  Wheelaxles and driveshaft
  The durable springtime metal wheelaxles in conjunction with springtime steel driveshafts bring the ability from gear-diff towards tires. Tires are fitted on high grade anodised aluminum wheelhex adaptors and guaranteed in full with flanged wheelnuts.

  Anti-roll bar backside
  The ballraced cable kind anti-rollbar in the back is really accessible from top and alter for other kind or thickness as needed. The anti-roll club is with this paid off a-arms with a spring-steel pole.

  750 Gear-differentials
  The compact, durable and lighter gear differentials will be the proven design regarding the 748. Precision moulded steel gears, 2 little 14T and 2 big 28T ones. The durable and light springtime steel lightened diff-adaptors attach to your driveshafts. Front and back geardifferential share similar interior elements.

  CVD driveshafts
  Spring metal, light and intensely durable CVDs based in the foremost and backside. Precision mounted difficult steel pins



• Pullies
  Precision moulded super-true pullies, which work holed sidewalls to let debris transfer easier. Light and durable.

  Belts
  minimal friction Kevlar reinforced belts with fine pitch. Longlasting and smooth.

  Belt-tensioner
  Ball raced belt-tensioner, machined from aluminium and can install on top or underneath the radioplate. With all the new design radioplate its possible to include yet another tensioner for improved gear stress.

  Gear-box SL6 - Xli
  The fine proven SL6 gearbox finished up being redesigned and lighter. Smaller bell, adaptor and footwear decrease fundamental weigth and rotating mass, because of this paid off intertia. Durable and longlasting gears. Excellent bearings. Really grippy smaller springloaded 2-speed shoes, an easy task setting.

  genuine motion Centax clutch
  Serpent created the Centax clutch inside mid 90-ties, and all sorts of sorts of brands accompanied it. Tiny improvements are located to really make the initial system better still. The specific movement Centax has a group flywheel, along with the taper component regarding the stress meal. This permits the flyweights getting good results better still. The difficult anodised aluminium flywheel has 4 holes to acquire comfortable usage of keep consitently the flywheel in place whenever setting the pre-tension. The flyweights are made of topquality teflon as well as still another space to make use of grubscrews to make sure they have been heavier. The red friction clutch footwear is extremely grippy, and works excellent utilising the metal clutch housing. The difficult anodised gears screw on the threaded steel bell.

  motor mount
  The light machined and anodised engine mounts totally seats the engine, well alligned along with the gearbox. Small modification could be made to have the engine nearer towards gearbox.

  handbook / set-up sheet
  The 750 comes with all the total color construction manual, with an easy task to follow along with set up steps. The manual also incorporates exploded views area showing all component numbers, which means complete parts-list, showing also all optionals. The kit includes a default and blank set-up sheet. Editable sheets will be in the Serpent internet site.

  Decals
  The 750 includes one sheet with Serpent generic logos the other with 750 logos. Decals have grown to be slim product and come pre-cut.

  Packing
  The 750 comes into play a good, little carton package with good pictures. The packaging the bags follows those things in manual.


  produced by World and European Champion Michael Salven and tested by globe champ Dominic Greiner.
