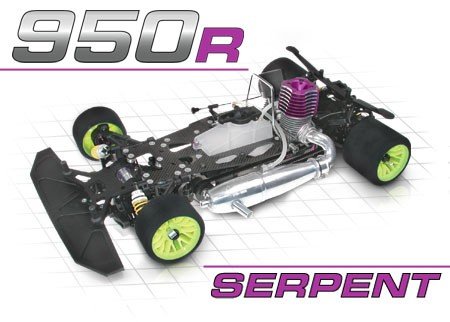

On the basis of the ultra effective Serpent 950, the 'R' represents refinement to an already highly competitive car. Utilizing the basics we've further modified the design to boost balance and handling, paid off the biggest market of gravity and cause the automobile easier to use. The outcomes are revolutionary with no need to be too radical, effectiveness through development.
Needs:
- Course: 1/8th scale fuel on-road, IFMAR guidelines
- Function: High-end competition
- body fat: 2.520kg (impacted by radio
- Max. price: 120km/h +
- Suspension: Independant double wishbone suspension system. Optional pushrod caused front surprise absorber system
- Chassis: 5mm 7075 aerospace quality aluminum, accuracy CNC machined
- Shock absorbers: 4-Step adjustable hydraulic shocks, composite shock systems with keyed shock pistons
- Radio dish: 2.5mm carbon dietary fiber, CNC machined with set down throttle and steering servos
- Wheel base: Adjustable 296 - 300mm +/-1.7mm
- Gas tank: 125cc brand new design with AFL lid
- Track-width front side: 250mm - 260mm
- Front axle: Aluminum front part axle with one-way bearings. Amazing adjustable front part gear stress
- Track-width backside: 260mm - 266mm
- Back axle: Solid back axle
- Gearbox: Lightweight 2-speed with interchangeable color coded gears 45-48T std
- Clutch system: Centax-II clutch system with interchangeable hard anodized alu. gears 16-19T std
- Instructions: color directions and set-up guide
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front roll center
- Perhaps not included: Engine and pipeline, human anatomy, radio gear, 5-cell battery pack pack
Features:
Adjustable front part roll-center -
a new function regarding Serpent 950R will be the power to adjust the key roll center with the use of a whole new system. Utilizing inserts with an offset opening at point where in actuality the top and bottom wishbone pivot pin mounts towards bearing block the pivot points is merely modified. You will need to away the pin and re set the roll center insert and re utilize the pivot pin. This method enables 4 variations toward front roll center.
Steering servo -
The steering servo is installed on the proper part right to the bottom of the radio dinner and hangs clear of several other product. The steering system makes use of just one servo-saver, which features adjustable servo saver springtime anxiety, a fantastic feature makes it possible for anyone to make your car or truck or vehicle suit any track area or design. The servo-saver is sold with four Ackermann choices to greatly help fine-tune the 950R steering traits. Adjustable metal track rods with staying and right thread are standard. The pivot ball regarding servo-saver supply is accessed through a hole in framework to disconnect and re-connect the steering rod.
Throttle servo -
just like the steering servo, the throttle servo whilst nonetheless in its conventional destination, is now lying on its element of further reduce the biggest market of gravity. It utilizes an inspired linkage system through radio dish to obtain in touch the servo towards the throttle pivot supply. By putting your head with this servo towards the inside associated with vehicle it's going to protect the linkage during a collision.
Adjustable front gear anxiety -
a new function about the Serpent 950-R could be the capacity to adjust the strain through the front belt. A straightforward usage of an eccenter permits quick and easy environment.
Radio dish help bracket -
radio stations dish assistance bracket, put straight within motor, in addition acts as the mounting point for the rollover club. The rollover club is shaped with techniques in order that it optimizes the automobiles fat blood circulation when inside hand. An optional aluminum radio dish assistance bracket (#902256) can be acquired and allows increased framework stiffness and a far more durable rollover club mounting.
vehicle's gas tank -
The 125cc vehicle's gas tank originated to accommodate radio stations plate design possesses now currently had a years effective easy operating. Top mounted using rubber covered aluminum mountings to separate your lives from vibrations and held arranged by little human body videos, this design additionally features three buffers to prevent gas foaming and to additionally verify every last autumn of fuel is available. This tank comes with another of Serpents innovations, the ‘AFL?Efuel tank lid. It offers an air chamber to avoid the trunk anxiety tubing being obstructed by fuel having cool off it at high rate cornering. Additionally fresh could be the lightweight get filter, now produced from a particular polypropylene. It is far better and additional guarantees the ultimate fall of gasoline can be used.
battery power -
The battery pack the Serpent 950R is established into a straightforward to eradicate composite battery owner and put inside framework dish right in fuel tank. Thus giving the 950R the perfect center of gravity and cheapest polar minute because of the fat being in direct center of vehicle. The battery owner should hold 5 Triple-A 1.2v cells, (maybe not included). A pre-made battery can be had as an option (#902126).
Chassis dish -
The backbone with this vehicle will be the framework meal. Oahu may be the strongest and stiffest solitary piece chassis available. Made out of 5mm aerospace quality aluminum, the Serpent 950Rs framework meal should withstand all even so the unwelcome crashes. The framework meal includes three cooling holes just beneath the motor to help temperature control, which is now narrower with chamfered edges to quit it getting on curbs providing it better basic ground approval. It houses the electric batteries, which installed towards the dish and held arranged by composite mounting points. All screw holes are countersunk to make sure no obstructions when the framework is operating low toward ground.
Chassis Stiffeners -
Another unique function, both carbon soluble fbre component mounted framework stiffeners. These dishes form a good connection between the front part and rear component of the 950R, and therefore are arranged straight to radio stations plate bracket also to the rear-bearing blocks. They promote the framework tightness, an essential condition in order to make effective utilization of the higher rate suspension system system modification choices. The left chassis stiffener furthermore houses the adjustable ball-raced gear tensioner, a straightforward and extremely effective system. The Serpent 950R is raced with or minus the part stiffeners because of the ridged 5mm aerospace quality chassis.
Gearbox -
The 2-speed gearbox is a growth of very first 2-speed system Serpent created before. Now in lighter and a more efficient sort, this gearbox is easy to manage and build after its easy design. The gearbox features bigger ball bearings (a 6x10mm and a 6x13mm) for extra durability and smoother rotation. The gears are set up towards businesses with three small screws and so are for sale in various colors for effortless recognition within toolbox. The whole array of gears comes in combination with pinions the Centax-II clutch.
Centax-II
Just the 2nd design of clutch system produced by Serpent in very early nineties, the Centax-II features bigger ball bearings (a 5x13mm and a 5x10mm) plus an even more impressive thrust bearing (5x10mm). This increases durability and offers ultra free motion of components. Featuring an externally adjustable clutch spacing method, the Centax system standard utilizing the revolutionary pivoting flyweight system.
Adjustable Wheel base
a new function on 950R could be the power to adjust the wheelbase up to 4mm. Simply accomplished by placing caster spacers in just an additional place before or behind the most known and bottom wishbone, the most recent wisbones feature seperate down end arms to accomodate this.
Front Suspension -
The 950R features new front part geometry and suspension system system system elements allowing the track width become made narrower although the power to adjust the roll center gives more tuning opportunities.
straight back suspension system system system -
The Serpent 950R reduced arms have actually in fact really two anti-roll bar mounting jobs even though the top of fingers have really adjustable size to alter a large part track-width allowing for varying track conditions.
The composite straight back bearing obstructs from Serpent 950R feature big straight back lay shaft bearings (6x15mm) for increased durability and paid friction inside rotation using this important component. In addition they sport 3.5mm reduced back pivot pins to cut back the chances of the pin bending on hefty effect. The side-plate mounting points are included to the rear obstructs.
straight back human body mount -
The Serpent 950R features a right sliding human anatomy mount centering system. A really efficient system, the centering pin is installed to a woven carbon fiber surprise tower which includes a couple of shock mounting holes that will help you fine tune your Serpent 950R further.
Shock absorbers -
Serpent's famous 4-step externally adjustable surprise absorbers contain keyed shock pistons, which makes sure that whenever choosing another environment you will get a good just click. The Serpent 950R comes supplied red springs and Serpents ultra constant 35W quality shock oil.
Steering obstructs -
The Serpent 950R comes as standard utilizing the WOS (wide-off-set) composite steering obstructs.
Exhaust mount -
utilizing a springtime sort mounting cable to separate vibrations, the springtime is connected to your car by means of an aluminum mounting post connected to the air dish.
Brake System -
The braking system system includes 2 metal dishes merged with stopping item ensuring efficient stopping capacity on dual discs with air-cooling center. The stopping action utilizes a cam system (the brake cam is difficult anodized), which further guarantees the smoothest stopping action.
Bumper -
the key bumper is created from a higher effect resistant composite and does a fantastic work of protecting the Serpent 950R in any sort of accident.
Suspension -
like every automobiles inside Serpent range the Serpent 950 features split double wishbone suspension system system system.
Bearings -
Supplied with new enhanced purple sealed quality lightweight bearings throughout, the drive train is extremely efficient and runs exceptionally smoothly.
Front axle -
Leading axle is manufactured out of high-grade aluminum and possesses the best quality one-way bearings lubricated with Serpent one-way lube. This guarantees a standard drive towards front side HUDY manufactured springtime metal drive cups.
Wheel Axles -
produced from HUDY springtime metal, the front and straight back wheel axles are really durable and ultra strong. They have been an accuracy fit for the key bearings whenever set up are in combination with original conical washers to make sure a fantastic precise wheel fit.
straight back Axle -
made from HUDY springtime steel the solid back axle is incredibly durable and ultra strong supplying an excellent base to install a corner drive pulley.
Pivot balls -
produced from HUDY springtime metal these polished 8.5mm pivot balls are virtually unbreakable while making particular the smoothest suspension system system movement possible.
Drive shafts -
Serpent simply make use of the best quality drive train in their vehicles and this also car is not any exclusion. It comes down down down provided with the perfect HUDY springtime metal drive shafts effective at withstanding constant punishment; these shafts are ultra durable and incredibly stiff allowing you to place all of your ability on tarmac.
Belt system -
Serpent use Kevlar reinforced drive belts. The Serpent 950R utilizes three primary belts, driven by a number of composite pulleys attached to aluminum pulley adapters. This makes for a tremendously smooth and efficient drive system and one that never ever slips and may even withstand severe punishment.
Anti-Roll bars -
The Serpent 950R comes supplied an adjustable front side anti-roll club and top mounted 3.0mm rear anti-roll club. An optional adjustable back anti-roll club (#909335) generally speaking made for extra set-up possibilities.
Fast launch system -
The Serpent 950R comes standard with spring packed aluminum fast launch levers. This dependable and time saving system allows very quick tire changes during long-distance races, enabling you to reunite on the right track in only a small amount time for you.
Tires -
The Serpent 950R comes detailed with an entire pair of the utmost effective quality 35?? coastline Ellegi Technics rubber trued and glued on Serpents ultra rigid BBS design yellowish tires.
Fastening product -
the car contains top quality, ultra light, coated aluminum screws to hold fat down yet without compromising power.
Powerstart -
to assist you begin your Serpent 950R utilising the most readily useful of ease of use Serpent give you the mandatory alignment brackets for the Powerstart starter package.
