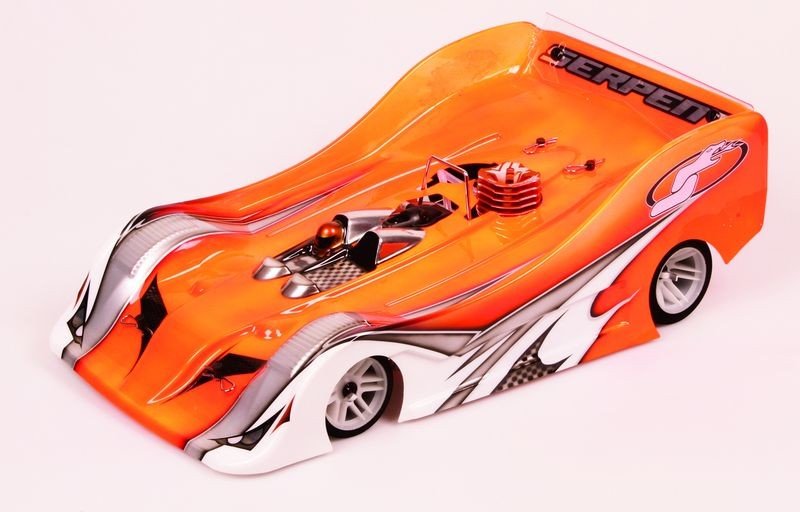

Serpent 1/8 scale 4wd gaspowered rushing vehicle framework. Serpent 966 may be the next generation race-car on the basis of the very successfull Serpent 960 platform.
Demands:
- course: 1/8th scale gas on-road, IFMAR recommendations
- function: High-end competition
- Weight: 2.520kg (dependent on radio gear)
- Track-width backside: 260mm - 266mm
- Track-width front: 250mm - 260mm
- Wheel base: Adjustable 296 - 300mm +/-1.7mm
- Chassis: 5mm 7075 aerospace quality aluminium, accuracy CNC machined
- broadcast dish: 2.5mm carbon soluble fiber
- suspension system system: Independent enhance wishbone suspension system system
- Shock absorbers: RCC surprise absorbers, pre put together
- gas tank: 125cc design with shaped plastic seal AFL lid
- right back axle: Solid back once again axle
- Front axle: Aluminium front side axle with one-way bearings
- Gearbox: Lightweight 2-speed with interchangeable gears 45-48T std
- Clutch system: Centax-II clutch system with interchangeable difficult anodized alu. gears 16-19T std
- guidelines: Comprehensive color guidelines and Set-up guide
- Adjustability: Camber, Caster, Down-stops, Up-stops, Toe-in, Track width, Wheel base, Front and straight back roll centre
- not included: engine and pipeline, body, radio gear, tires, tires, 5-cell battery pack aren't included
Features:
- brand new kind backside alu brackets and alu 2-speed brackets
- Wire kind rear anti-roll club as standard
- Mono-type diskbrake
Chassis Dish
The backbone connected with vehicle will be the framework dish, that is CNC-machined from exceedingly rigid american 7075 T6 - 5mm aerospace-quality aluminium and recreations an easy front opening to improve the main element anti-roll club. A cooling slot in engine assists help heat control while chamfered sides avoid the framework from getting on kerbs providing it better general ground approval regarding track. It houses the electric batteries, which will be set up to the newly-designed carbon fibre battery power mounting dinner and it's also held in place by four screws, screwed directly to the framework dish itself. This new 966 dinner has additionally been machined to just accept the optional front part stiffener meal.
Brake-system
The stopping system system ensures strong and efficient stopping power. The braking system pads have actually two steel dishes utilising the friction item pre-baked towards the washing, plus the braking system disk is manufactured away from double ventilated discs with an air-cooling alu centre.The unique stopping system sits paid off the automobile to simply help LCG. The system is effortlessly accessable for upkeep, because in fact available design.
The spring-loaded bar-pads wear polished metal pins and are generally triggered through ball-raced stopping system cam, a sizable pin strategies horizontally to stimulate the braking system system. As a result of horizontal action with this particular pin, as opposed to the twisting the braking system cam, all distortion in this area is eradicated as well as the braking system pads are evenly pressed together. The stopping system cam is supported by ball-bearings for smooth, accurate action. This further increases the precision and exceptional stopping energy of stopping system.
Brake 966
Lower mounted brake-assembly for paid off LCG. Spring-loaded brake-plates slides on polished steel shafts. Ready-to-run stopping system plate/pads construction with new friction brake product. The ball-raced hard anodized brake-cam push the two bigger pins that are seated in the aluminium bracket, through brakeplat, to build excessively smooth along with force towards the meal.
enhanced RCC Shock Absorbers
The RCC surprise absorbers are super-smooth and incredibly a breeze generate. Machined from steel and unique as the surprise systems simply open regarding bottom half, they're in fact an easy task to assemble. They consist of an organization piston with no longer usage a diaphragm just like the previous shocks but a foam. The effect is an ultra-smooth and air-free surprise absorber due to the self-bleeding system integrated into the design.The seal-package on shocks is improved ( brand new x-ring / bushing) while offering better support towards pole. Little modification, BIG advantage.
major rear brackets
Anodized, cnc machined, aluminum primary rear axle supports with coated alu eccenters; more rigid, better rear axle support for a genuine running backside shaft, easy belt-tensioning, instant access for maintenance. Utilising the eccenters you'll select 3 jobs for rear- gear tensioning. By detatching the eccenter utilizing one side the trunk shaft with pulley and belt may be accessed very easily. Major backside helps are machined maximum to reduced fat, but retain rigidness at the same time. Pins are pre-pressed into the base linked to the brackets which in turn seat into the positioning holes inside framework. Precise and safe.
Front Axle
the important thing axle is manufactured away from high-grade aluminium possesses the very best quality one-way bearings lubricated with one-way lube. This guarantees a typical drive towards the leading Spring metal drive cups.
Front Anti-roll Bar
The Serpent 966 comes standard with an adjustable front side anti-roll club. By rotating the two blades, its simple to adjust the tightness. Centering with an improved adjuster eccentric.
Front Bumper and Body Mount
leading human body mount associated with the Serpent 966 is screwed lower combined with bumper, enabling numerous flex in the torso post mounts whilst maintaining the tightness concerning the fundamental construction. Your body mount is held further through two screws mounted from part.As using the back roll centre, leading roll centre are effectively modified. The modification is finished by detatching leading top suspension system system system brackets and placing spacers beneath the brackets then re-attaching them towards vehicle.
The 966 includes anodised aluminium front part top suspension brackets being machined in one single small aluminium. These appealing pieces are extremely strong and great protection in the event of huge effect. The other great advantageous asset of this component would be the fact that because of the using inserts, with an offset opening, you will adjust the pivot position from the top front side component wishbones. Another good design function would be the proven fact that very same front suspension system bracket can be utilized on both left and right edges of automobile.
Steering obstructs
These Wide offset (WOS) steering obstructs works well in 2 various designs by swapping the medial side regarding the automobile these are typically installed on. These improvements, based on the part the steering obstructs are utilized on, will either offer more turn in on component entry, or more on energy steering at component exit. The included eccenters ensure that the axle is raised greater than centre line, which improves the consequence attributable to this brand new setup and due to the use of eccenters the bearings are in reality also smaller and lighter, reducing un sprung fat.
Front Suspension
the key anti-roll club levers, being combined with down prevents allowing for easier tweak. They placed inwards, in the bearing-blocks, helping to make them more effective considering less flex. Leading paid off arms take care of the leading anti-roll club place.
Adjustable Front Belt Tension
an excellent function could be the power to adjust the worries connected with front belt. The simple-to-use bearing eccentric holders assist fast and simple environment.
Front Shock Tower
Leading shock tower the Serpent 966 includes 3mm carbon fiber, which makes this component ultra crash resistant. Leading surprise tower besides features two shock mounting functions to help you fine tune your vehicle for almost any track conditions.
Driveshafts / wheelaxles
Serpent just utilize the highest-quality drive train of the automobiles. The 966 automobile comes provided with the best springtime Steel drive shafts capable of withstanding constant punishment; these shafts are ultra durable and incredibly rigid permitting one to put all of your capacity on tarmac.
Front CVD and right back regular dogbones.Made from Spring steel, leading and rear wheel axles are becoming durable and ultra strong. They've been a precision complement the principal bearings whenever installed utilizing the supplied shims to be sure a taut precise wheel fit. Leading axle also comprises the main element CVD shafts which are included within kit and will therefore be properly used with both provided fast launch system and/or optional wheel nuts.
Pivot Balls
created from Spring Steel, these polished 8.5mm pivot balls are virtually unbreakable and guarantee the smoothest suspension system movement feasible.
Adjusting nut for pivot balls
These adjusting peanuts are produced from Nylon and change the sooner aluminium nut with synthetic insert that could not merely makes set up easier, also decreases un-sprung fat. Reducing the elements used now additionally decreases component perform therefore it creates an even more accurate control car and as the item utilized is self-lubricating the movement pertaining to pivot ball will always be smooth throughout use.
Aluminium center bracket
The Serpent 966 comes supplied with an aluminium center bracket as standard. Changing the normal composite variation, the newest part is a lot stiffer therefore decreases flex within axle which prolongs living of belts and pulleys.
broadcast Plate Help Bracket
The air dish assistance bracket, place straight as you're watching engine, furthermore will work as the mounting point the roll over club. The roll over club is shaped in a way it optimizes the car's fat blood flow whenever within hand.
Battery Mounting Plate
The carbon fiber battery power mounting meal was developed to manage to accommodate a number of battery pack designs, like the old-fashioned 5 mobile pack. The battery power mounting meal is constructed of a 2mm black colored colored carbon soluble fbre that will be installed towards the framework dish by four countersunk screws.
Chassis Stiffeners
Another function could be the two carbon-fibre part mounted chassis stiffeners. These dishes form an excellent connection between your front side and straight back section of the 960, and are generally set up straight to the atmosphere dish bracket and also to the trunk bulkheads. They enhance the framework tightness, a vital condition to create effective utilizing higher level suspension system modification alternatives. The residual chassis stiffener increases as a belt-tensioner owner to with a lengthier slot allow alterations.
Throttle Servo Mounting
The 966 provides two opportunities the mounting from the throttle servo, to begin with which might become the the initial stand-up throttle servo layout. To cut back the automobiles centre of gravity there is a different to install the throttle servo in an assortment down setup. This moves the hefty engine along with other areas of the servo paid down and also to the internal permitting better fat distribution and C of G.
The set down throttle servo construction is created to easily fit into the conventional servo mounting room, consequently enabling the straightforward modification over between designs. If you opt to use mainstream upright mounting, you'll be able to mount the receiver near the throttle servo. Otherwise the receiver is in its standard spot regarding the staying part associated with the radio dish.
Gas Tank
Serpent have in fact really provided the 125cc vehicle's gas tank with a fresh silicone plastic seal for the AFL vehicle's gas tank lid that stops leakage therefore provides more constant engine performance. Made from silicone synthetic, this brand new seal is shaped generate a fantastic seal on the opening from the tank and enabling the tank lid to shut completely.
The tank is manufactured away from an even more recent more powerful product. The milky white coloured tanks do have more opposition to shattering in case there's much effect and modifications toward lid pivot pin spot further guarantee a perfectly sealed tank. The newest product often less temperature sensitive and will keeps it contour better furthermore whenever hot. The tank supplies the possibility to set up little spacers inside to fine-tune the quantity.
Receiver Mounting
The receiver in Serpent 966 could possibly be set up in 2 different functions, dedicated to whether you select the laydown throttle servo mounting and/or old-fashioned upright throttle servo mounting.
In the event that you mount the throttle servo utilizing the laydown setup, the receiver is established regarding the remaining side of radio dinner, between the gas tank as the exhaust system.
In the event that you mount the throttle servo utilising the old-fashioned upright setup, the receiver (and protective target) are set up beside the throttle servo.
The main benefit of these alternative mounting positions is the fact that it offers alternatives for electronics placement, also choices for eliminating any recurring disturbance issues that may occur.
Steering Servo Mounting
The steering servo is installed concerning the proper part directly to the bottom of radio stations dinner and hangs without such a thing. The steering system makes use of a centrally mounted servo-saver, which features adjustable springtime stress and it is offered with four Ackerman options, utilizing inserts, to simply help fine-tune the 966 steering characteristics. Adjustable steel track rods with remaining and right threads are standard.
straight back Axle
Made from Spring metal, the solid rear axle is quite durable and ultra strong providing an unbelievable base to install the trunk drive pulley. A steel pin secures the pulley and an o-ring keeps it set up.
Adjustable right back Roll Center and Camber Increase
towards Serpent 966 a large part roll centre is adjustable if you utilize offset composite inserts, which place the wishbone pivot pins about the paid down wishbones.The backside camber increase could possibly be modified through the identical strategy but on back wishbone pivot pins. Making use of composite inserts means both changes can be simply made track component.
Back Anti-roll Bar
The cable kind backside anti-roll club inside the Serpent 966 is ball-raced for additional precision and even more precision.The blade sort straight back anti-roll club is optional.
back Body Mount
a large part human body mount into the Serpent 966 could possibly be linked in several other ways to improve or lessen the downforce sent from body toward back tires. You will find longer body mount arms, being setup towards right back uprights at axle degree gives more down force on tires. Your entire construction can also be clear of binding, meaning there's no restriction of movement regarding suspension system.
back Suspension
the trunk end geometry provides excellent buttocks hold and a truly stable automobile both under stopping including making corners. The OS 2 uprights sport little bearings to lessen un sprung fat, 3 top supply mounting jobs and so the possibility to utilize shims for changing the roll facilities. Strong reduced wishbones with enough material round the pivot pin and pivot balls, although the upper fingers make it possible for effortless modification concerning the camber and camber increase. Longer body mount arms offer more down force to your tires yet haven't any binding because of the mounting spot.
straight back Shock Tower
a corner shock tower for the Serpent 966 is constructed of 3mm carbon fiber, which again makes this component ultra crash resistant. The trunk surprise tower tasks 4 shock mounting jobs that will help you fine-tune your automobiles handling track component.
fast publish Wheel System
The Serpent 966 comes standard with both spring-loaded aluminium fast launch levers and fixed alu peanuts (with o-rings).
Quick-change
This dependable and time-saving system enables really quick tire changes during cross-country occasions, letting you return regarding track in short amount of time as you are able to.
Drive Belt System
The Serpent 966 uses three Kevlar-reinforced main drive belts, driven by a couple of composite pulleys installed on aluminium pulley adapters. This permits for an extremely smooth and efficient drive system that may withstand serious punishment.
engine Mono block
The strong engine mono block that takes benefit of the extra space where in actuality the motor is established on LCG (minimal Center of Gravity) framework meal. In addition considering that the benefits of the mono block system, to prevent the engine flexing, the block enables the engine become mounted paid off the chassis by 2mm. As a result of motor being lowered the automobile is now provided an inferior diameter flywheel.
Centax-II Clutch
The Centax-II clutch system features big ball bearings (a 5x13mm and a 5x10mm) also a large thrust bearing (5x10mm). This increases durability and will be offering ultra-free movement of elements. Featuring an externally-adjustable clutch gap spacing technique, and a cutting-edge pivoting flyweight system.
Exhaust Mounting Spring
making use of a spring-type mounting cable to separate vibrations, the springtime is linked on vehicle through an aluminium mounting post connected to the atmosphere dinner.
Gearbox
The 2-speed gearbox is battle proven and it is a breeze to modify and construct because of its effortless design. The gearbox features big ball bearings (a 6x10mm and a 6x13mm) for extra durability and smoother rotation. The gears are installed towards the firms with three little screws and could also be located to the complete number of gears for sale in combination with pinions the Centax-II clutch.
Bearings
Supplied with sealed top-quality lightweight bearings throughout, the drive train is quite efficient and runs very efficiently.
30 bearings completely including 3 one-ways.
Adjustment
The Serpent 966 is a top-level competition racer that will be consequently entirely adjustable. The racer can alter numerous settings efficiently and effortlessly, such as the suspension system system geometry. The down stops may be just accessed and easily modified with maximum impact. Caster, track-width, toe-in, camber, camber increase, and wheelbase may also be adjusted effortlessly, plus the front part and back roll-centre and rear human anatomy mount mounting angle.
Adjustable Wheelbase
due to the leading wishbone setup, you'll be able to quickly adjust the car's wheelbase through keeping of 1 top and reduced caster clip on each part concerning the vehicle. In the backside you certainly will spot shims appropriate right in front or within backside of this spine wishbones to obtain plus or minus 3mm.
